DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMV1215SACDC DC CONVERTER 15V 1W |
139 |
|
Datasheet |
NMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - | |
|
ADUM5020-5BRWZ-RLDC DC CONVERTER 3.3V 5V 500MW |
317 |
|
Datasheet |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 100mA | - | 3 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 16-SOIC | - | - | - | |
|
DCP020507UDC DC CONVERTER 7V 2W |
305 |
|
Datasheet |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 7V | - | - | - | 286mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 81% | - | - | Surface Mount | 12-SOP | - | - | - | |
|

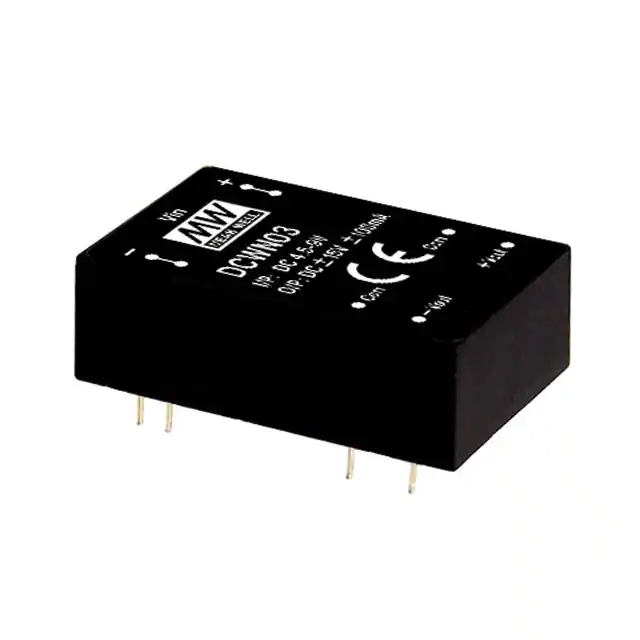

DCWN03E-15DC DC CONVERTER +/-15V 3W |
634 |
|
Datasheet |
DCWN03 (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
|
DCWN03B-15DC DC CONVERTER +/-15V 3W |
354 |
|
Datasheet |
DCWN03 (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
|
DCWN03B-05DC DC CONVERTER +/-5V 3W |
318 |
|
Datasheet |
DCWN03 (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
RKZ3-2412SDC DC CONVERTER 12V 3W |
138 |
|
Datasheet |
RKZ3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C | 90% | - | - | Through Hole | - | - | - | - | |
|
R05P21509DDC DC CONVERTER 15V -9V 2W |
195 |
|
Datasheet |
ECONOLINE RxxP2xx (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -9V | - | - | 66mA, 111mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - | |
|

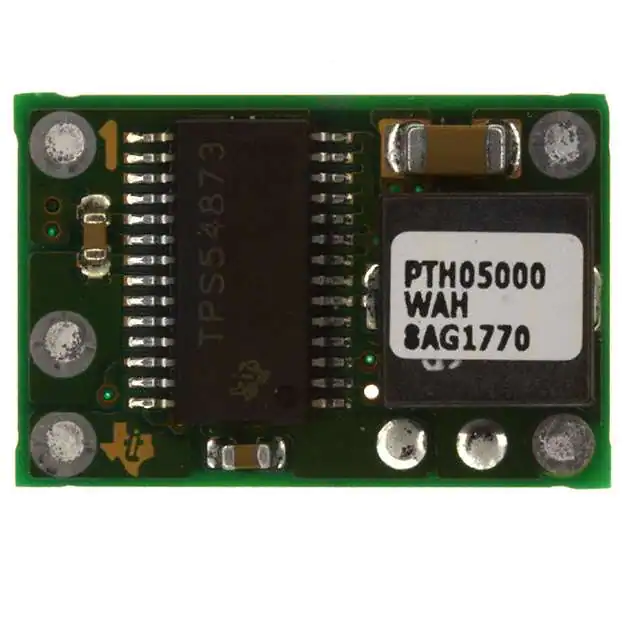

PTH05000WAHDC DC CONVERTER 0.9-3.6V |
1,364 |
|
Datasheet |
PTH05000W | 5-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.9 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Through Hole | - | - | - | - | |
|
TRN 1-1210DC DC CONVERTER 3.3V 1W |
387 |
|
Datasheet |
TRN 1 (1W) | 5-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 300mA | 1 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 77% | - | - | Through Hole | - | - | - | - | |
|
TMR 1-2413DC DC CONVERTER 15V 1W |
858 |
|
Datasheet |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | Module | - | CB, CSA | - | |
|
|
TMR 1-2411DC DC CONVERTER 5V 1W |
711 |
|
Datasheet |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | Module | - | CB, CSA | - | |
|
LTM4691IY#PBFLOW-VIN, 2.25V TO 3.6V, DUAL 2A |
310 |
|
Datasheet |
LTM®, uModule® | 24-LFLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 2.25V | 3.6V | 0.5 ~ 2.5V | 0.5 ~ 2.5V | - | - | 2A, 2A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 24-LGA (3x4) | - | - | - | |
|
PTH08080WAZTDC DC CONVERTER 0.9-5.5V |
894 |
|
Datasheet |
PTH08080W | 5-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 18V | 0.9 ~ 5.5V | - | - | - | 2.25A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93.5% | - | - | Surface Mount | - | - | - | - | |
|
DCH010512SN7DC DC CONVERTER 12V 1W |
546 |
|
Datasheet |
DCH01 (1W) | 7-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | - | - | |
|
NME2405DCDC DC CONVERTER 5V 1W |
143 |
|
Datasheet |
NME (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | 0°C ~ 70°C | 70% | - | - | Through Hole | - | - | - | - | |
|
171010601DC DC CONVERTER 0.8-6V |
373 |
|
Datasheet |
MagI³C, VDRM | 7-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Surface Mount | TO-263-7 | Enable, Active High | - | - | |
|
R0.25S-0505DC DC CONVERTER 5V 250MW |
287 |
|
Datasheet |
ECONOLINE R0.25S (0.25W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 50mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 70% | - | - | Surface Mount | - | - | - | - | |
|
R-78C1.8-1.0DC DC CONVERTER 1.8V 1.8W |
201 |
|
Datasheet |
INNOLINE R-78C-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 5V | 42V | 1.8V | - | - | - | 1A | 1.8 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TES 1-0511VDC DC CONVERTER 5V 1W |
313 |
|
Datasheet |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | - | - | - | - |
