DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGDSK04CCDC DC CONVERTER |
0 |
|
Datasheet |
MGDK04 (4W) | 24-DIP Module, 9 Leads | Bulk | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 800mA | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
MGDSK04CEDC DC CONVERTER |
0 |
|
Datasheet |
MGDK04 (4W) | 24-DIP Module, 9 Leads | Bulk | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 330mA | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 80% | - | - | Through Hole | - | - | - | - | |
|
THM 6-2421WIDC DC CONVERTER +/-5V 6W |
0 |
|
Datasheet |
THM 6WI (6W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 95°C | 85% | - | - | Through Hole | - | - | - | - | |
|

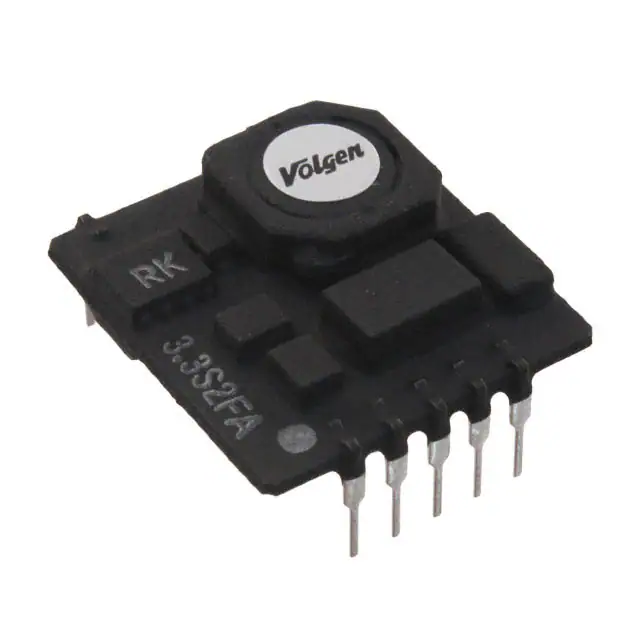

VSI-3.3S2R0FMADC DC CONVERTER 3.3V 6.5W |
0 |
|
Datasheet |
VSI-mini (10W) | 7-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.75V | 13.6V | 3.3V | - | - | - | 2A | 6.5 W | - | ITE (Commercial) | Remote On/Off | -10°C ~ 70°C | 92% | - | - | Through Hole | - | Enable, Active High | - | - | |
.jpg)
|
REC6-1215DRW/R10/ADC DC CONVERTER +/-15V 6W |
0 |
|
Datasheet |
ECONOLINE REC6/R (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 82% | - | - | Through Hole | - | - | - | - | |
|
MGDBK04CEDC DC CONVERTER |
0 |
|
Datasheet |
MGDK04 (4W) | 24-DIP Module, 9 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 165mA, 165mA | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 80% | - | - | Through Hole | - | - | - | - | |
|
ECLB40W-110D15DC DC CONVERTER +/-15V 40W |
0 |
|
Datasheet |
ECLB40W-110S (40W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 43V | 160V | 15V | -15V | - | - | 1.333A, 1.333A | 40 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88.5% | - | - | Through Hole | - | Enable, Active High | CE, cURus | 50155; 60950-1 | |
|
EC7BW18-72S15DC DC CONVERTER 15V 20W |
0 |
|
Datasheet |
EC7BW18 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 8.5V | 160V | 15V | - | - | - | 1.33A | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 | |
|
REC15-123.4S/H2/MDC DC CONVERTER 3.4V 15W |
0 |
|
Datasheet |
ECONOLINE REC15/M (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.4V | - | - | - | 3A | 15 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 85% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
AEE02H24-MDC DC CONVERTER 24V 20W |
0 |
|
Datasheet |
AEE20W-M (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 840mA | 20 W | 4.2 kV | ITE (Commercial), Medical | OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
TEN 12-4813DC DC CONVERTER 15V 12W |
0 |
|
Datasheet |
TEN 12WI (12W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 800mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
|
AEE02CC24-MDC DC CONVERTER +/-15V 20W |
0 |
|
Datasheet |
AEE20W-M (20W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 670mA, 670mA | 20 W | 4.2 kV | ITE (Commercial), Medical | OCP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
REC3.5-1215SRW/R10/CDC DC CONVERTER 15V 3.5W |
0 |
|
Datasheet |
ECONOLINE REC3.5/R (3.5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 233mA | 3.5 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
TEN 40-1213EDC DC CONVERTER 15V 40W |
0 |
|
Datasheet |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 2.666A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | CB, cURus | - | |
|
TRI 10-2411DC DC CONVERTER 5.1V 10W |
0 |
|
Datasheet |
TRI 10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5.1V | - | - | - | 2A | 10 W | 5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | CB, cURus | - | |
|
TRI 10-4812DC DC CONVERTER 12V 10W |
0 |
|
Datasheet |
TRI 10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 833mA | 10 W | 5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | CB, cURus | - | |
|
THN 20-2422WIR20 WATT DC/DC CONVERTER, RAILWAY |
0 |
|
Datasheet |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CB, cURus | 50155; 62368-1 | |
|
|
REC15-245.1SZ/H2/MDC DC CONVERTER 5.1V 15W |
1 |
|
Datasheet |
ECONOLINE REC15/M (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 3A | 15 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 65°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
E48SC12025NRFHDC DC CONVERTER 12V 300W |
0 |
|
Datasheet |
Delphi E48SC (300W) | 13-DIP Module, 1/8 Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
BMR4652010/001DC DC CONVERTER 0.6-1.8V 162W |
0 |
|
Datasheet |
BMR465 (162W) | 26-SIP Module | Tray | Active | Non-Isolated PoL Module, Digital | 1 | 7.5V | 14V | 0.6 ~ 1.8V | - | - | - | 90A | 162 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 150°C (With Derating) | 94.3% | - | - | Through Hole | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 |
