DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGFS154805DC DC CONVERTER 5V |
684 |
|
Datasheet |
MGFS (15W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 3A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
|
MGFW152412DC DC CONVERTER +/-12V |
466 |
|
Datasheet |
MGFW (15W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 9V | 36V | 12V or 24V | -12V | - | - | 650mA, 650mA | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
|
EC5SBW-24S12DC DC CONVERTER 12V 30W |
160 |
|
Datasheet |
EC5SBW (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
JSM2512S12DC DC CONVERTER 12V 25W |
569 |
|
Datasheet |
JSM25 (25W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 2.09A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
_Series-1-Output.jpg)
|
THM 6-1211DC DC CONVERTER 5V 6W |
115 |
|
Datasheet |
THM 6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 86% | - | - | Through Hole | - | - | - | - | |
|

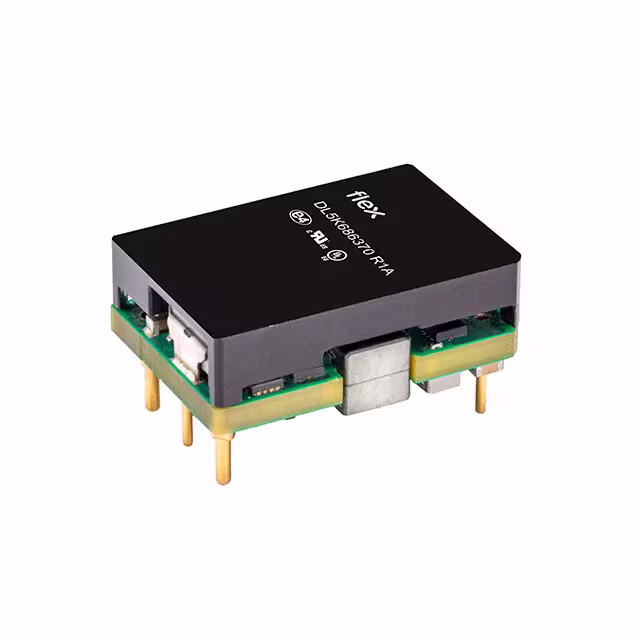

PKU4217DPIDC DC CONVERTER 10.4V 260W |
119 |
|
Datasheet |
PKU4217D (260W) | Sixteenth Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 60V | 10.4V | - | - | - | 25A | 260 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | 96.1% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
LTM4606IY#PBFDC DC CONVERTER 0.6-5V |
238 |
|
Datasheet |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 125°C | 93% | - | - | Surface Mount | 133-BGA (15x15) | - | - | - | |
|
THD 12-4822WIDC DC CONVERTER +/-12V 12W |
430 |
|
Datasheet |
THD 12WI (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
LTM8052IYDC DC CONVERTER 1.2-24V |
157 |
|
Datasheet |
µModule® | 81-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 81-BGA (15x11.25) | - | - | - | |
|
RSDW40H-24DC DC CONVERTER 24V 40W |
226 |
|
Datasheet |
RSDW40 (40W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 1.667A | 40 W | 3 kV | Railway | - | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | - | - | CE, EAC | - | |
|
LTM4601IY#PBFDC DC CONVERTER 0.6-5V |
50 |
|
Datasheet |
µModule® | 118-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 118-BGA (15x15) | - | - | - | |
|

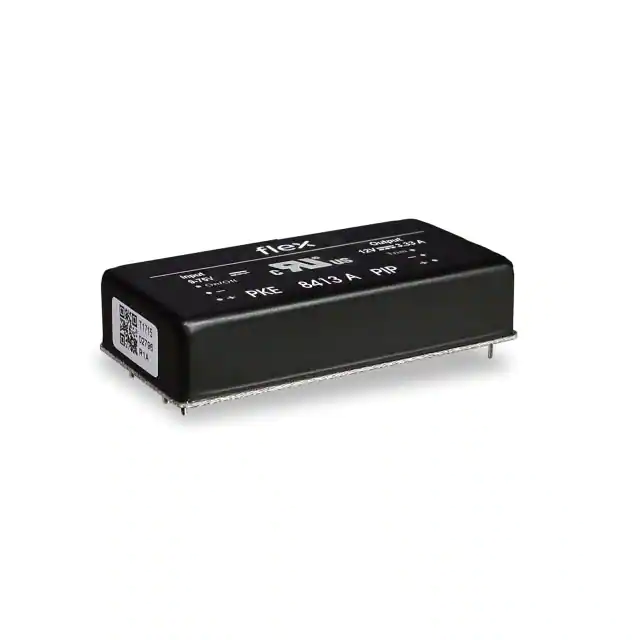

PKE8416ZAPI9-75VIN; 21.6-26.4VOUT; 40W; ISO |
124 |
|
Datasheet |
PKE 8000A | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 1.67A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active Low | cURus, UL | 62368-1 | |
|
|
AVD100-48S05-6LDC DC CONVERTER 5V 100W |
154 |
|
Datasheet |
AVD100 (120W) | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - | |
|
|
LTM4611EV#PBFDC DC CONVERTER 0.8-5V |
392 |
|
Datasheet |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 1.5V | 5.5V | 0.8 ~ 5V | - | - | - | 15A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 94% | - | - | Surface Mount | 133-LGA (15x15) | - | - | - | |
|
LTM4639EY#PBFDC DC CONVERTER 0.6-5.5V |
108 |
|
Datasheet |
µModule® | 133-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.375V | 7V | 0.6 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | OCP, OVP, UVLO | -40°C ~ 125°C | 88% | - | - | Surface Mount | 133-BGA (15x15) | - | - | - | |
|
THN 15-2421WIDC DC CONVERTER +/-5V 15W |
108 |
|
Datasheet |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, cURus | - | |
|
REC3.5-2405SRW/R10/ADC DC CONVERTER 5V 3.5W |
173 |
|
Datasheet |
ECONOLINE REC3.5/R (3.5W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 700mA | 3.5 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - | |
|
S24SP05008PDFADC DC CONVERTER 5V 40W |
319 |
|
Datasheet |
S24SP (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C | 92.8% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
LTM4627IV#PBFDC DC CONVERTER 0.6-5V |
240 |
|
Datasheet |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 15A | - | - | ITE (Commercial) | OCP, OVP | -40°C ~ 125°C | 93% | - | - | Surface Mount | 133-LGA (15x15) | - | - | - | |
|
|
PKB4211DPIDC DC CONVERTER 5V 200W |
230 |
|
Datasheet |
PKB4000D (200W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 40A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.3% | - | - | Through Hole | Eighth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
