DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VR05S3V3DC DC CONVERTER 3.3V |
0 |
|
Datasheet |
VR05 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 4.75V | 36V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
|
VR05S05DC DC CONVERTER 5V |
0 |
|
Datasheet |
VR05 | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 500mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
VR05S09DC DC CONVERTER 9V |
0 |
|
Datasheet |
VR05 (5W) | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | - | - | ITE (Commercial) | Standby Output | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - | |
|
VR05S15DC DC CONVERTER 15V |
0 |
|
Datasheet |
VR05 (5W) | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 19V | 36V | 15V | - | - | - | 500mA | - | - | ITE (Commercial) | Standby Output | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - | |
|
1S4E_1512S1UISOLATED MODULE DC DC CONVERTERS |
7 |
|
Datasheet |
1S4E_S1U (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 100mA | 1.2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
PEME1-S5-S5-SDC DC CONVERTER 5V 1W |
0 |
|
Datasheet |
PEME1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 62368-1 | |
|
B0512T-1WR3ISOLATED MODULE DC DC CONVERTER |
4 |
|
Datasheet |
B05_T-1WR3 (1W) | 8-SMD Module | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB, CE, cURus, EN, IEC, UL | 62368-1 | |
|

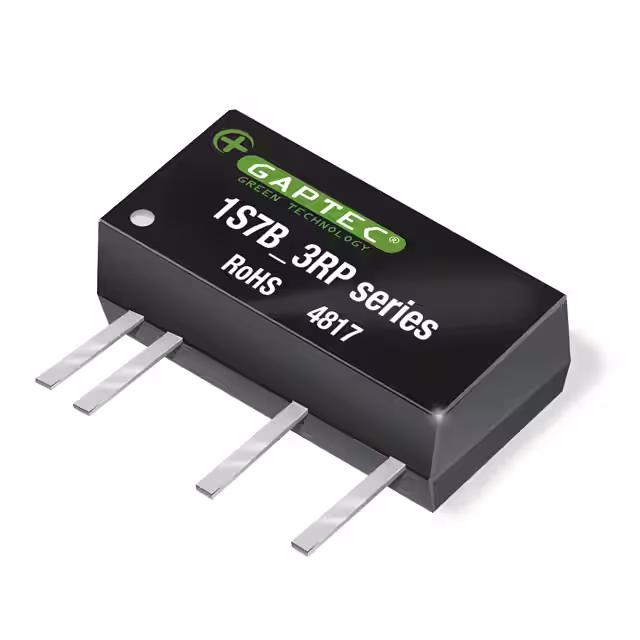

1S7B_0505S3RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Datasheet |
1S7B_3RP (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | - | - | CE, cURus | 62368-1 | |
|
|
TUD-0505ADC DC CONVERTER +/-5V 1W |
21 |
|
Datasheet |
TU (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | 73% | - | - | Through Hole | - | - | - | - | |
|
|
TUD-0512ADC DC CONVERTER +/-12V 1W |
0 |
|
Datasheet |
TU (1W) | 14-DIP Module, 6 Leads | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | - | - | ||
|
|
IEB0112S09DC DC CONVERTER SINGLE 9V 1W |
0 |
|
Datasheet |
IEB01 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, UKCA, UL | 62368-1 | |
|
|
IEB0112S12DC DC CONVERTER SINGLE 12V 1W |
0 |
|
Datasheet |
IEB01 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, UKCA, UL | 62368-1 | |
|
|
IEB0112S3V3DC DC CONVERTER SINGLE 3.3V 1W |
0 |
|
Datasheet |
IEB01 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 75% | - | - | Through Hole | - | - | CE, UKCA, UL | 62368-1 | |
|
|
IEB0112S24DC DC CONVERTER SINGLE 24V 1W |
0 |
|
Datasheet |
IEB01 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 42mA | 1.008 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CE, UKCA, UL | 62368-1 | |
|
AM1SS-0505SJZDC DC CONVERTER 5V 1W |
2 |
|
Datasheet |
AM1SS-N(J)Z (1W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 4-SIP | - | cURus | - | |
|
|
TUD-1205ADC DC CONVERTER +/-5V 1W |
25 |
|
Datasheet |
TU (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | 74% | - | - | Through Hole | - | - | - | - | |
|
|
TUD-1215ADC DC CONVERTER +/-15V 1W |
25 |
|
Datasheet |
TU (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TUD-0524ADC DC CONVERTER +/-24V 1W |
25 |
|
Datasheet |
TU (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
TUD-2412ADC DC CONVERTER +/-12V 1W |
24 |
|
Datasheet |
TU (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | 77% | - | - | Through Hole | - | - | - | - | |
|
|
NUS-1209B2DC DC CONVERTER 9V 2W |
19 |
|
Datasheet |
NU (2W) | 16-SMD Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 71°C | 78% | - | - | Surface Mount | - | - | - | - |
