DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

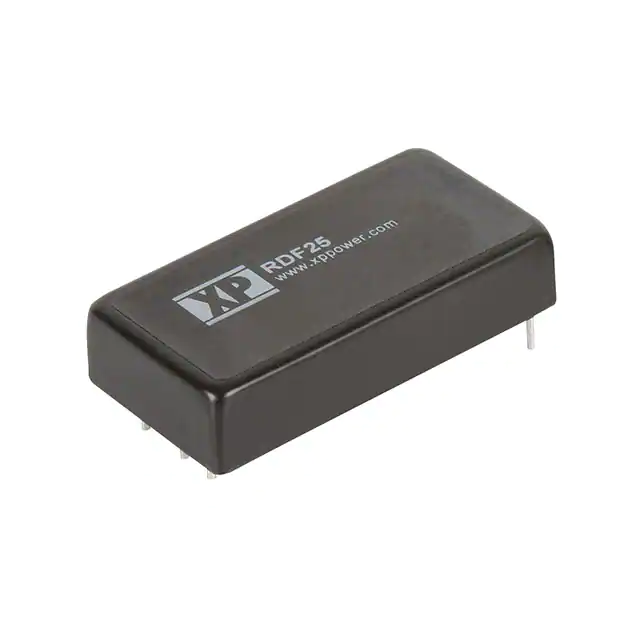

RDF2572S12DC DC CONVERTER 12V 25W |
36 |
|
Datasheet |
RDF25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 16V | 160V | 12V | - | - | - | 2.08A | 25 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|

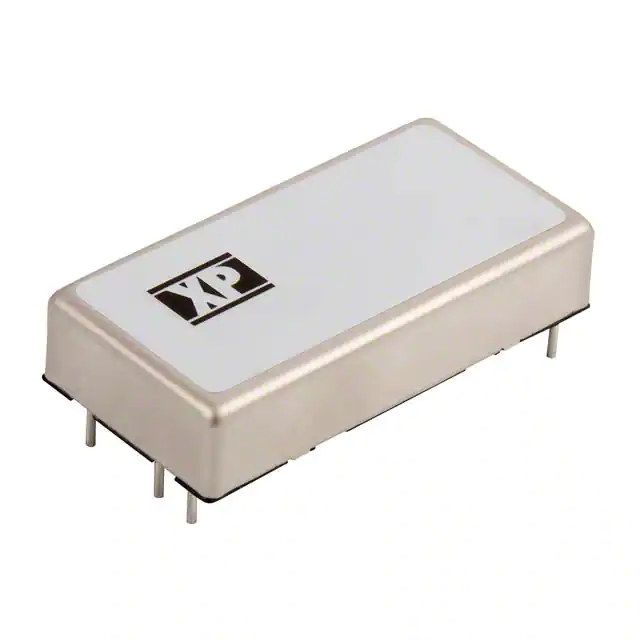

JCK4024D15DC DC CONVERTER +/-15V 40W |
35 |
|
Datasheet |
JCK (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 1.33A, 1.33A | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 92% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
MGFS302405DC DC CONVERTER 5V |
161 |
|
Datasheet |
MGFS (30W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|

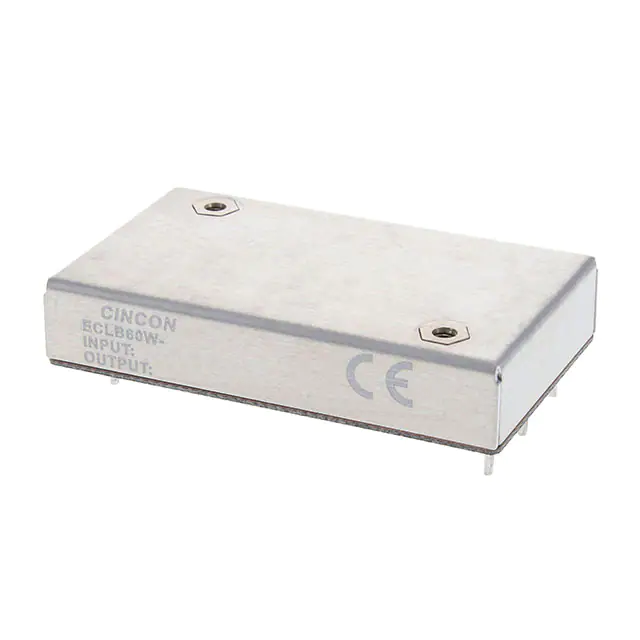

ECLB60W-24D12DC DC CONVERTER +/-12V 60W |
260 |
|
Datasheet |
ECLB60W (60W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
LTM4630IYDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
78 |
|
Datasheet |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 18A, 18A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (16x16) | - | - | - | |
|
TEN 30-2413WINDC DC CONVERTER 15V 30W |
760 |
|
Datasheet |
TEN 30WIN (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 75°C (With Derating) | 89% | - | - | Through Hole | Module | - | - | - | |
|
TEN 30-2411WINDC DC CONVERTER 5.1V 31W |
97 |
|
Datasheet |
TEN 30WIN (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 6A | 31 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 75°C (With Derating) | 88% | - | - | Through Hole | Module | - | - | - | |
|
TEN 30-4811WINDC DC CONVERTER 5.1V 31W |
35 |
|
Datasheet |
TEN 30WIN (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5.1V | - | - | - | 6A | 31 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 75°C (With Derating) | 88% | - | - | Through Hole | Module | - | - | - | |
|
LTM4650IY-2#PBF2X 25A OR 1X 50A DC/DC MODULE RE |
62 |
|
Datasheet |
- | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 15V | 0.6 ~ 1.8V | - | - | - | 50A | 90 W | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (16x16) | - | - | - | |
|
THN 30-1213DC DC CONVERTER 15V 30W |
71 |
|
Datasheet |
THN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
|
THN 30-1215DC DC CONVERTER 24V 30W |
65 |
|
Datasheet |
THN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
|
ECLB60W-48D12DC DC CONVERTER +/-12V 60W |
242 |
|
Datasheet |
ECLB60W (60W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
PXD20-24D15DC DC CONVERTER +/-15V 20W |
618 |
|
Datasheet |
PXD (20W) | 6-DIP Module | Bulk | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | - | 87% | - | - | Through Hole | - | - | - | - | |
|
DBE0125V2NBSCDC DC CONVERTER 12V 300W |
211 |
|
Datasheet |
DBE (300W) | 16-DIP Module (15 Leads), 1/8 Brick | Tray | Last Time Buy | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 94.6% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
TEN 40-4812NDC DC CONVERTER 12V 40W |
30 |
|
Datasheet |
TEN 40N (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 3.333A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 92% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
LTM4644IY-1DC DC CONVERTER 4X0.6-5.5V |
158 |
|
Datasheet |
µModule® | 77-BBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 14V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 4A, 4A, 4A, 4A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 77-BGA (15x9) | - | - | - | |
|
JRCW450U641ZDC DC CONVERTER 48V 450W |
67 |
|
Datasheet |
ORCA™ JRCW450U (450W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 36V | 75V | 48V | - | - | - | 9.4A | 450 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 94% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
PKE8413APIDC DC CONVERTER 12V 40W |
195 |
|
Datasheet |
PKE 8000A (40W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 3.3A | 40 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
TEN 15-2423WIDC DC CONVERTER +/-15V 15W |
34 |
|
Datasheet |
TEN 15WI (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
THM 20-2412WIDC DC CONVERTER 12V 20W |
40 |
|
Datasheet |
THM 20WI (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88.5% | - | - | Through Hole | - | - | - | - |
