DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC2A03HDC DC CONVERTER 15V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 100mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A11HDC DC CONVERTER 5V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 300mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A12HDC DC CONVERTER 12V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 125mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A13HDC DC CONVERTER 15V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 100mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A21HDC DC CONVERTER 5V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 300mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A22HDC DC CONVERTER 12V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 125mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A23HDC DC CONVERTER 15V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 100mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A31HDC DC CONVERTER 5V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 25.2V | 30.8V | 5V | - | - | - | 300mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A32HDC DC CONVERTER 12V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 25.2V | 30.8V | 12V | - | - | - | 125mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A33HDC DC CONVERTER 15V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 25.2V | 30.8V | 15V | - | - | - | 100mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A41HDC DC CONVERTER 5V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 43.2V | 52.8V | 5V | - | - | - | 300mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A42HDC DC CONVERTER 12V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 43.2V | 52.8V | 12V | - | - | - | 125mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
|
EC2A43HDC DC CONVERTER 15V 1.5W |
0 |
|
- |
EC2A (1.5W) | 24-DIP Module, 14 Leads | Tube | Obsolete | Isolated Module | 1 | 43.2V | 52.8V | 15V | - | - | - | 100mA | 1.5 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | - | - | Through Hole | - | - | - | - | |
|
PDS2-S15-S12-M-TRDC DC CONVERTER 12V 2W |
0 |
|
Datasheet |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | - | - | |
|
|
PDS2-S15-S5-M-TRDC DC CONVERTER 5V 2W |
0 |
|
Datasheet |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - | |
|
|
PDS2-S24-S3-M-TRDC DC CONVERTER 3.3V 2W |
0 |
|
Datasheet |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 78% | - | - | Surface Mount | - | - | - | - | |
|
|
PDS2-S5-S24-M-TRDC DC CONVERTER 24V 2W |
0 |
|
Datasheet |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | - | - | |
|
PDSE2-S24-S9-MDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
24 |
|
Datasheet |
PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 1.998 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE | 62368-1 | |
|

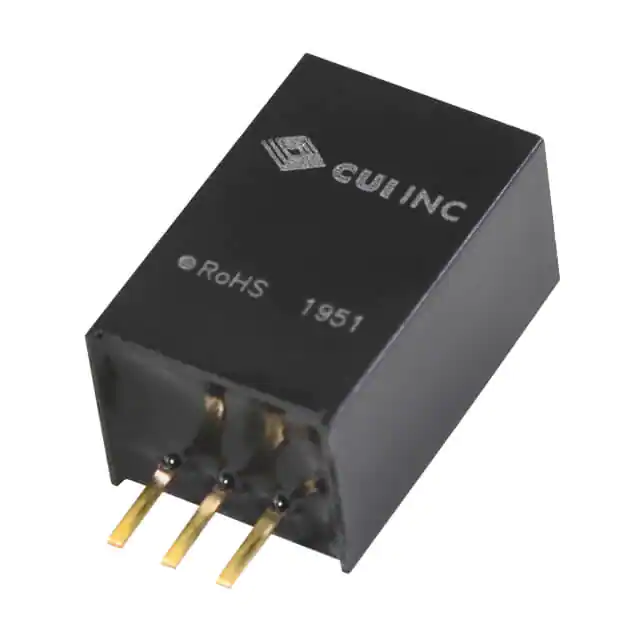

P7812-2000-SDC DC CONVERTER 12V 24W |
0 |
|
Datasheet |
P78-2000-S | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 16V | 36V | 12V | - | - | - | 2A | 24 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
P7803-2000-SDC DC CONVERTER 3.3V 6.6W |
0 |
|
Datasheet |
P78-2000-S | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 6V | 36V | 3.3V | - | - | - | 2A | 6.6 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
