DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NME1215DCDC DC CONVERTER 15V 1W |
0 |
|
Datasheet |
NME (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
EC1TA12NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA02NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA01NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA03NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA11NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA21NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA13NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA22NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | CE | - | |
|
|
EC1TA23NISOLATED DC/DC CONVERTERS 1W UNR |
0 |
|
- |
EC1TAN (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | CE | - | |
|

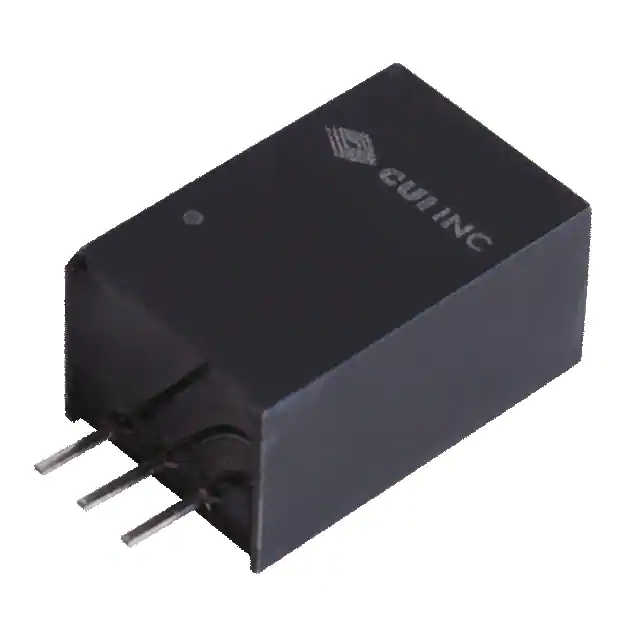

V7805-1000DC DC CONVERTER 5V 5W |
0 |
|
Datasheet |
V78-1000 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - | |
|
PEM2-S12-S15-DDC DC CONVERTER 15V 2W |
0 |
|
Datasheet |
PEM2-D (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 60950-1 | |
|
|
PEM2-S12-S5-DDC DC CONVERTER 5V 2W |
0 |
|
Datasheet |
PEM2-D (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|
|
PEM2-S5-S15-DDC DC CONVERTER 15V 2W |
0 |
|
Datasheet |
PEM2-D (2W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|
RO-0505S/EHPDC DC CONVERTER 5V 1W |
0 |
|
Datasheet |
ECONOLINE RO/E (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | - | - | - | |
|
PEM2-S5-S15-SDC DC CONVERTER 15V 2W |
0 |
|
Datasheet |
PEM2-S (2W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133.3mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 84% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|
|
VQA3S-S12-D20-SDC-DC ISOLATED, 2.25 W, 10.8~13. |
0 |
|
Datasheet |
Artix® UltraScale+ | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 20V | -5V | - | - | 90mA, 90mA | - | 5.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | - | - | cURus | 62368-1 | |
|
|
1S8W_1215D1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Datasheet |
1S8W_S (1W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
1S8W_2415D1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Datasheet |
1S8W_S (1W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
1S8W_0505D1.5RPISOLATED MODULE DC DC CONVERTERS |
0 |
|
Datasheet |
1S8W_S (1W) | 8-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 73% | - | - | Through Hole | - | - | - | - |
