DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMV1205DACDC DC CONVERTER 5V 1W |
144 |
|
Datasheet |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | - | - | - | - | |
|
PDQ2-D12-S5-SDC DC CONVERTER 5V 2W |
249 |
|
Datasheet |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A | |
|
ATH006A0XZDC DC CONVERTER 0.8-3.6V 21W |
1,536 |
|
Datasheet |
Austin MicroLynx™ II | 6-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | 21 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
DCWN03E-05DC DC CONVERTER +/-5V 3W |
554 |
|
Datasheet |
DCWN03 (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 77% | - | - | Through Hole | - | - | - | - | |
|
SCWN03B-12DC DC CONVERTER 12V 3W |
209 |
|
Datasheet |
SCWN03 (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
RKZ-1212S/PDC DC CONVERTER 12V 2W |
1,041 |
|
Datasheet |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 168mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
|
RKZ-0505S/HDC DC CONVERTER 5V 2W |
775 |
|
Datasheet |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
PTH05000WASDC DC CONVERTER 0.9-3.6V |
1,073 |
|
Datasheet |
PTH05000W | 5-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.9 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | - | - | - | - | |
|
PTH05000WADDC DC CONVERTER 0.9-3.6V |
2,687 |
|
Datasheet |
PTH05000W | 5-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.9 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Through Hole | - | - | - | - | |
|
TMR 1-4811DC DC CONVERTER 5V 1W |
524 |
|
Datasheet |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | Module | - | CB, CSA | - | |
|
EC3AE25MDC DC CONVERTER +/-15V 3W |
120 |
|
Datasheet |
EC3AE (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 100°C (With Derating) | 61% | - | - | Through Hole | - | - | CE | - | |
|
IR1212SDC DC CONVERTER +/-12V 3W |
229 |
|
Datasheet |
IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|
|
IR0505SADC DC CONVERTER 5V 3W |
183 |
|
Datasheet |
IR (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
TRN 1-4811DC DC CONVERTER 5V 1W |
118 |
|
Datasheet |
TRN 1 (1W) | 5-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 90°C | 78% | - | - | Through Hole | - | - | - | - | |
|
PTH08080WBHDC DC CONVERTER 0.9-5.5V |
177 |
|
Datasheet |
PTH08080W | 5-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 18V | 0.9 ~ 5.5V | - | - | - | 2.25A | - | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 93.5% | - | - | Through Hole | - | - | - | - | |
|

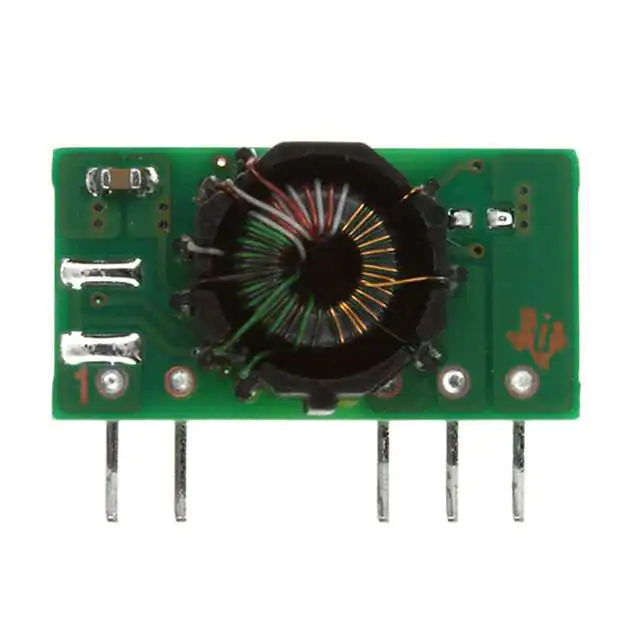

DCH010505DN7DC DC CONVERTER +/-5V 1W |
324 |
|
Datasheet |
DCH01 (1W) | 7-SIP Module, 5 Leads | Bulk | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - | |
|

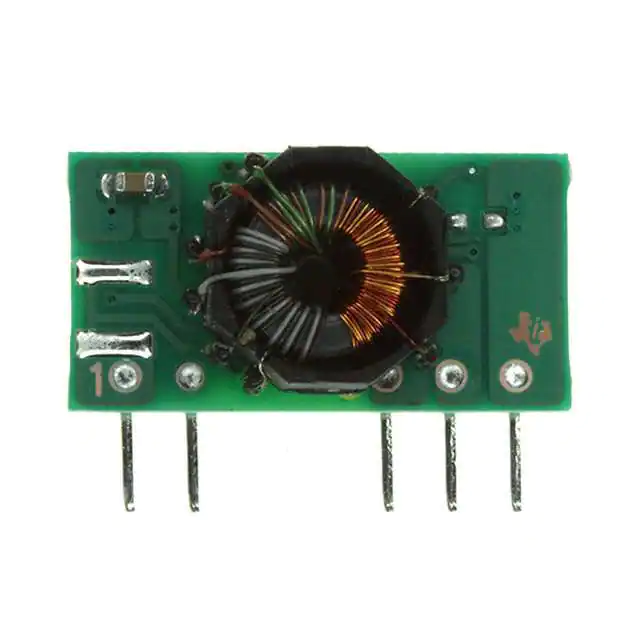

DCH010512DN7DC DC CONVERTER +/-12V 1W |
126 |
|
Datasheet |
DCH01 (1W) | 7-SIP Module, 5 Leads | Tray | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
LMP78_12-1.0RNON-ISOLATED POL MODULE DC DC CO |
116 |
|
Datasheet |
LMP78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 14V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 97% | - | - | Through Hole | - | - | - | - | |
|
|
LMP78_09-1.0RNON-ISOLATED POL MODULE DC DC CO |
109 |
|
Datasheet |
LMP78_1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 11V | 42V | 9V | - | - | - | 1A | 9 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - | |
|
CC1R5-0503SR-EDC DC CONVERTER 3.3V 1W |
3,670 |
|
Datasheet |
CC-E (1.5W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 400mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | - | Enable, Active Low | - | - |
