DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMV0509DACDC DC CONVERTER 9V 1W |
0 |
|
Datasheet |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|
|
NMV0515DACDC DC CONVERTER 15V 1W |
0 |
|
Datasheet |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
NMV0515DCDC DC CONVERTER +/-15V 1W |
0 |
|
Datasheet |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
|
NMV1205DCDC DC CONVERTER +/-5V 1W |
0 |
|
Datasheet |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - | |
|
|
NMV1212DACDC DC CONVERTER 12V 1W |
0 |
|
Datasheet |
NMV (1W) | 14-DIP Module, 6 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - | |
|

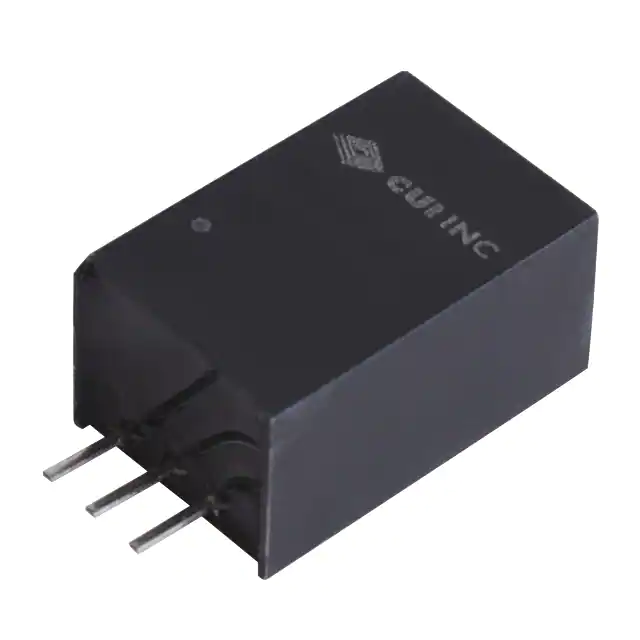

V7803-1000DC DC CONVERTER 3.3V 3.3W |
0 |
|
Datasheet |
V78-1000 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 4.75V | 28V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
PTH03050WASTDC DC CONVERTER 0.8-2.5V 15W |
0 |
|
Datasheet |
PTH03050 (15W) | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.8 ~ 2.5V | - | - | - | 6A | 15 W | - | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | - | - | - | - | |
|
|
PTH05050YAZTDC DC CONVERTER 0.55-1.8V 11W |
0 |
|
Datasheet |
PTHxx050Y (10.8W) | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.55 ~ 1.8V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | - | - | - | - | |
|
PTH12050LAZTDC DC CONVERTER 0.8-1.8V 33W |
0 |
|
Datasheet |
PTH12050 (33W) | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | - | - | - | - | |
|
|
PTH12050YAZTDC DC CONVERTER 0.55-1.8V 11W |
0 |
|
Datasheet |
PTHxx050Y (10.8W) | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.55 ~ 1.8V | - | - | - | 6A | 11 W | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
AM3S-0509SH30ZDC DC CONVERTER 9V 3W |
2 |
|
Datasheet |
AM3S-Z | 4-SIP | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 4-SIP | - | - | 60950-1; 62368-1 | |
|
|
AM3S-1215SH30ZDC DC CONVERTER 15V 3W |
2 |
|
Datasheet |
AM3S-Z | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C | 91% | - | - | Through Hole | 4-SIP | - | - | 60950-1; 62368-1 | |
|
|
AM3S-1205SH30ZDC DC CONVERTER 5V 3W |
2 |
|
Datasheet |
AM3S-Z | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C | 85% | - | - | Through Hole | 4-SIP | - | - | 60950-1; 62368-1 | |
|
|
AM3S-1209SH30ZDC DC CONVERTER 9V 3W |
1 |
|
Datasheet |
AM3S-Z | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C | 89% | - | - | Through Hole | 4-SIP | - | - | 60950-1; 62368-1 | |
|
R0.5D10-2405-RDC DC CONVERTER +/-5V 500MW |
0 |
|
Datasheet |
ECONOLINE R0.5D (0.5W) | 10-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 50mA, 50mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 77% | - | - | Surface Mount | - | - | - | - | |
|
|
R0.5D10-2412-RDC DC CONVERTER +/-12V 500MW |
0 |
|
Datasheet |
ECONOLINE R0.5D (0.5W) | 10-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 21mA, 21mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
|
R0.5D10-2415-RDC DC CONVERTER +/-15V 500MW |
0 |
|
Datasheet |
ECONOLINE R0.5D (0.5W) | 10-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 17mA, 17mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
|
R0.5D-2405-RDC DC CONVERTER +/-5V 500MW |
0 |
|
Datasheet |
ECONOLINE R0.5D (0.5W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 50mA, 50mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 77% | - | - | Surface Mount | - | - | - | - | |
|
|
R0.5D-2412-RDC DC CONVERTER +/-12V 500MW |
0 |
|
Datasheet |
ECONOLINE R0.5D (0.5W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 21mA, 21mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
|
R0.5D-2415-RDC DC CONVERTER +/-15V 500MW |
0 |
|
Datasheet |
ECONOLINE R0.5D (0.5W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 17mA, 17mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | - | - | - | - |
