DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCS1S2405SCDC DC CONVERTER 5V 1W |
253 |
|
Datasheet |
NCS1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | - | - | |
|
MEJ1S0505SCDC DC CONVERTER 5V 1W |
218 |
|
Datasheet |
MEJ1 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - | |
|
MGJ2D151505SCDC DC CONVERTER 15V -5V 2W |
212 |
|
Datasheet |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -5V | - | - | 80mA, 40mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
MGJ2D051509SCDC DC CONVERTER 15V -8.7V 2W |
173 |
|
Datasheet |
MGJ2 (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -8.7V | - | - | 80mA, 40mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 77.5% | - | - | Through Hole | - | - | - | - | |
|
LMZ12002TZ-ADJ/NOPBDC DC CONVERTER 0.8-6V |
857 |
|
Datasheet |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | TO-PMOD-7 | Enable, Active High | - | - | |
|
APTS003A0X-SRZDC DC CONVERTER 0.6-5.5V 16W |
8,520 |
|
Datasheet |
PicoTLynx™ | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.6 ~ 5.5V | - | - | - | 3A | 16 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|

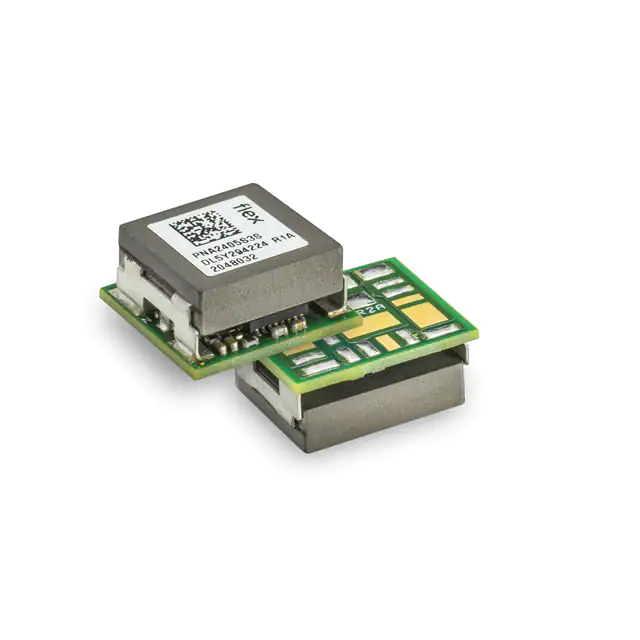

PNA2405S3S9-36VIN; 0.9-5.5VOUT; 6A; NON-IS |
3,948 |
|
Datasheet |
PNA (33W) | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 0.9 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output | -40°C ~ 125°C (With Derating) | 95.7% | - | - | Surface Mount | - | Enable, Active High | cURus, UL | 62368-1 | |
|
R-786.5-0.5DC DC CONVERTER 6.5V 3W |
2,801 |
|
Datasheet |
INNOLINE R-78-0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 32V | 6.5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - | |
|

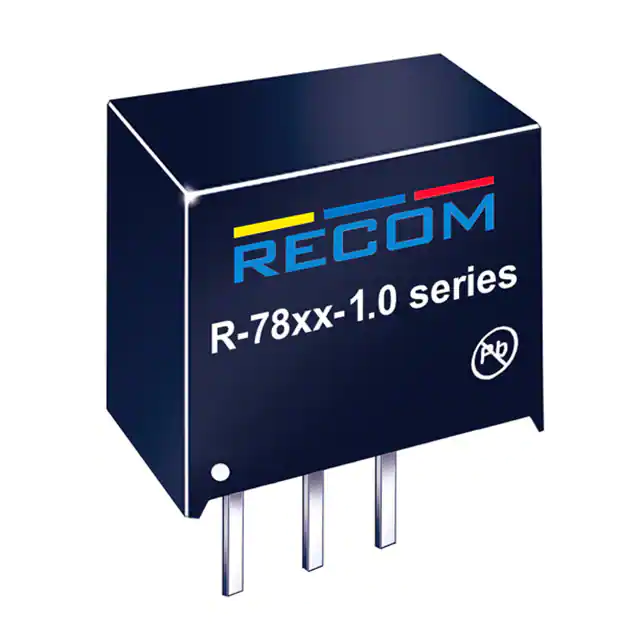

R-783.3-1.0DC DC CONVERTER 3.3V 3W |
2,626 |
|
Datasheet |
INNOLINE R-78-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 18V | 3.3V | - | - | - | 1A | 3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|
|
R-7815-0.5DC DC CONVERTER 15V 8W |
1,695 |
|
Datasheet |
INNOLINE R-78-0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 18V | 32V | 15V | - | - | - | 500mA | 8 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 97% | - | - | Through Hole | - | - | - | - | |
|
|
R-785.0-1.0DC DC CONVERTER 5V 5W |
1,624 |
|
Datasheet |
INNOLINE R-78-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 18V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - | |
|

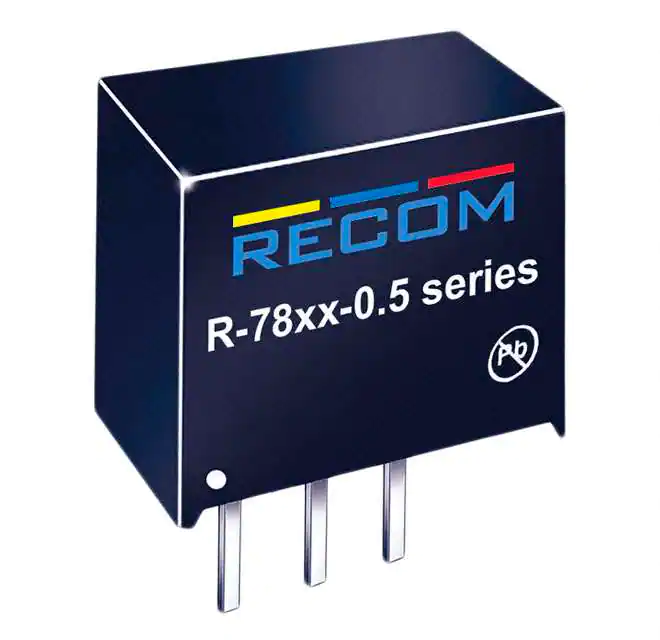

R-789.0-0.5DC DC CONVERTER 9V 5W |
156 |
|
Datasheet |
INNOLINE R-78-0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 11V | 32V | 9V | - | - | - | 500mA | 5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 96% | - | - | Through Hole | - | - | - | - | |
|
|
LMZ12003TZX-ADJ/NOPBDC DC CONVERTER 0.8-6V |
1,406 |
|
Datasheet |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | TO-PMOD-7 | Enable, Active High | - | - | |
|
|
IH0512SDC DC CONVERTER +/-12V 2W |
1,134 |
|
Datasheet |
IH (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
|
IH0515SDC DC CONVERTER +/-15V 2W |
461 |
|
Datasheet |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
PDT003A0X3-SRZDC DC CONVERTER 0.5-5.5V |
5,153 |
|
Datasheet |
PicoDLynx™ | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 3V | 14.4V | 0.5 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | Digital with Remote On/Off and UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|

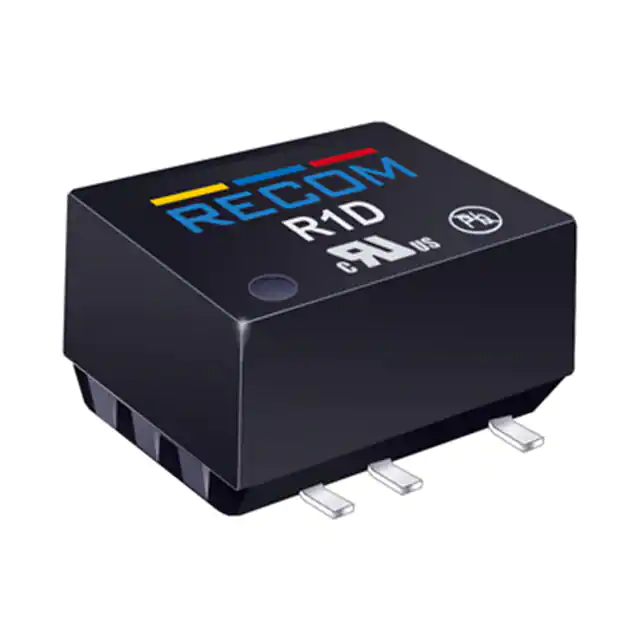

R1D-0512-RDC DC CONVERTER +/-12V 1W |
868 |
|
Datasheet |
ECONOLINE R1D (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
TPSM53603RDARDC DC CONVERTER 1-7V |
1,371 |
|
Datasheet |
- | 15-PowerBQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3.8V | 36V | 1 ~ 7V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 95% | - | - | Surface Mount | 15-B3QFN (5x5.5) | Enable, Active High | - | - | |
|
R1S-3.305-RDC DC CONVERTER 5V 1W |
1,083 |
|
Datasheet |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
|
RI-0505SDC DC CONVERTER 5V 2W |
1,534 |
|
Datasheet |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
