DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

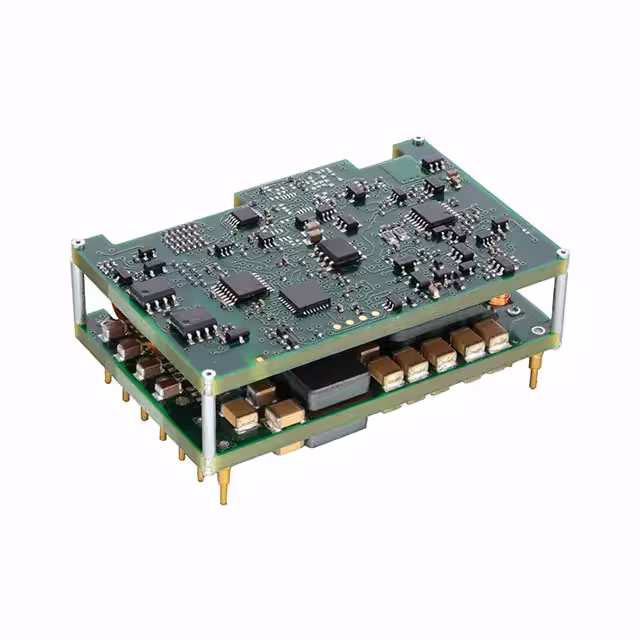

PIM4610PDADC DC CONVERTER 3.3V 66W |
40 |
|
Datasheet |
PIM 4010 (780-1080W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 3.3V | - | - | - | 20A | 66 W | 2 kV | ITE (Commercial) | PMBus™ | -40°C ~ 105°C (With Derating) | 98.80% | - | - | Through Hole | Quarter Brick | - | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
20IMX7-12-12-8GDC DC CONVERTER 12V 12V 7W |
232 |
|
Datasheet |
Melcher IMX7 (7W) | 14-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 12V | 12V | - | - | 250mA, 250mA | 7 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
PXE30-48D12DC DC CONVERTER +/-12V 30W |
170 |
|
Datasheet |
PXE (30W) | 8-DIP Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 88% | - | - | Through Hole | - | - | - | - | |
|
|
PXE30-24D15DC DC CONVERTER +/-15V 30W |
28 |
|
Datasheet |
PXE (30W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C | 88% | - | - | Through Hole | - | - | - | - | |
|
CHB100W-24S05NDC DC CONVERTER 5V 100W |
341 |
|
Datasheet |
CHB100W (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 84.5% | - | - | Through Hole | Half Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
TEN 40-2412WIDC DC CONVERTER 12V 40W |
223 |
|
Datasheet |
TEN 40WI (40W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.35A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | Module | - | - | - | |
|
QSB7524S24DC DC CONVERTER 24V 75W |
85 |
|
Datasheet |
QSB (75W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 3.12A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
DCQ0150V2NBSCDC DC CONVERTER 12V 600W |
31 |
|
Datasheet |
DCQ (600W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
CQB75-300S12N-FDC/DC CONVERTER |
32 |
|
Datasheet |
CQB75-300S (75W) | Half Brick | Box | Active | Isolated Module | 1 | 180V | 450V | 12V | - | - | - | 6.25A | 75 W | 3 kV | ITE (Commercial) | Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | Half Brick | Enable, Active Low | CE | 62368-1 | |
|
CQB50W12-72S05DC DC CONVERTER 5V 30W |
152 |
|
Datasheet |
CQB50W12 (50W) | Module | Tray | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 6A | 30 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 | |
|
CQB75W8-36S48DC DC CONVERTER 48V 75W |
148 |
|
- |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 48V | - | - | - | 1.56A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CE, cURus | 50155; 62368-1 | |
|
TEN 60-1212NDC DC CONVERTER 12V 60W |
46 |
|
Datasheet |
TEN 60N (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90.5% | - | - | Through Hole | Module | - | - | - | |
|
BMR4580102/003DC DC CONVERTER 12V 600W |
62 |
|
Datasheet |
BMR458 (600W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.4% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
CQB75W8-36S24DC DC CONVERTER 24V 75W |
58 |
|
Datasheet |
CQB75W8 (75W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 3.12A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | Enable, Active High | CB, CE, cURus | 50155; 62368-1 | |
|

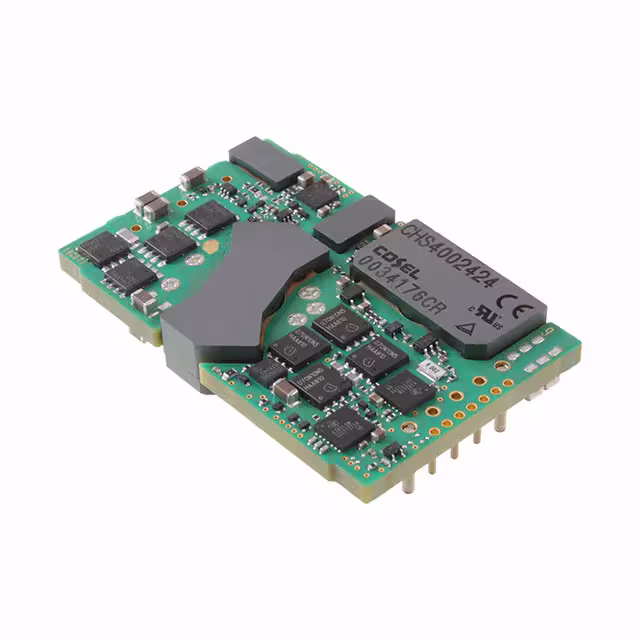

CHS4002424DC DC CONVERTER 24V 348W |
85 |
|
Datasheet |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 14.5A | 348 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - | |
|

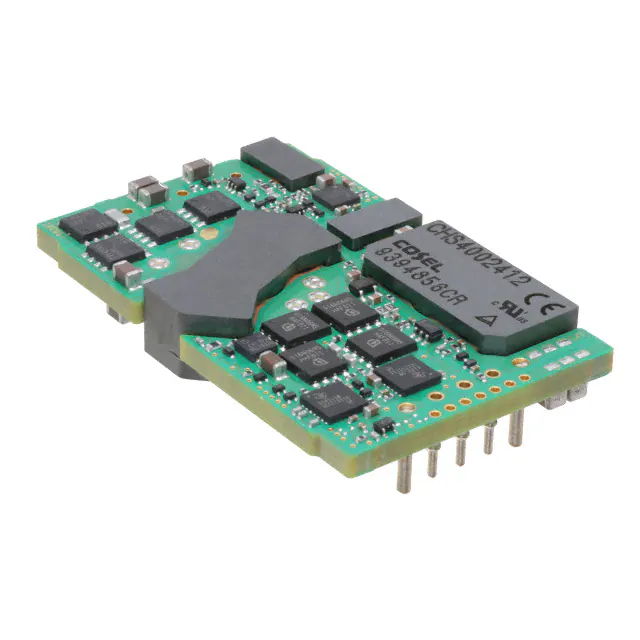

CHS4002412DC DC CONVERTER 12V 318W |
62 |
|
Datasheet |
CHS (400W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 26.5A | 318 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 93.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE, cURus, TUV | - | |
|
VHB75W-Q48-S12DC DC CONVERTER 12V 75W |
155 |
|
Datasheet |
VHB75W (75W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 84% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
VHB75W-Q24-S48DC DC CONVERTER 48V 75W |
96 |
|
Datasheet |
VHB75W (75W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 1.56A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
LTM4677IYDC DC CNVRTR 0.5-1.8V 0.5-1.8V |
149 |
|
Datasheet |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.5 ~ 1.8V | 0.5 ~ 1.8V | - | - | 18A, 18A | - | - | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 144-BGA (16x16) | - | - | - | |
|
RP40-4812SFR/PDC DC CONVERTER 12V 40W |
43 |
|
Datasheet |
POWERLINE RP40-FR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | - | Enable, Active High | - | - |
