DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCP022405PDC DC CONVERTER 5V 2W |
208 |
|
Datasheet |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 81% | - | - | Through Hole | 7-PDIP | - | - | - | |
|
HPR400CDC DC CONVERTER 5V 750MW |
1,289 |
|
Datasheet |
HPR4xxC (0.75W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 150mA | 750 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C | 69% | - | - | Through Hole | - | - | - | - | |
|
APXK004A0X4-SRZDC DC CONVERTER 0.6-8V 32W |
397 |
|
Datasheet |
PicoTLynx™ | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 16V | 0.6 ~ 8V | - | - | - | 4A | 32 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 96.1% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
R-78T12-1.0/AC-RDC DC CONVERTER 12V 12W |
115 |
|
Datasheet |
INNOLINE R-78T-1.0 | 3-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 15V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
NMJ1209SACDC DC CONVERTER 9V 1W |
1,479 |
|
Datasheet |
NMJ (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 60°C | 73% | - | - | Through Hole | - | - | - | - | |
|
PTH12050LAHDC DC CONVERTER 0.8-1.8V |
97 |
|
Datasheet |
PTH12050 | 6-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|
DCP021205PDC DC CONVERTER 5V 2W |
115 |
|
Datasheet |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 83% | - | - | Through Hole | 7-PDIP | - | - | - | |
|
CCG1R5-12-15SFDC DC CONVERTER 15V 1.5W |
135 |
|
Datasheet |
CCG1R5-10 (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 18V | 15V | - | - | - | 100mA | 1.5 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 100°C (With Derating) | 79% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|
XR79110EL-FDC DC CONVERTER 0.6-5.5V |
118 |
|
Datasheet |
- | 72-PowerBFQFN Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 22V | 0.6 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 96% | - | - | Surface Mount | 72-QFN (10x10) | - | - | - | |
|
R2D-0509/P-RDC DC CONVERTER +/-9V 2W |
209 |
|
Datasheet |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
PH02S2415ADC DC CONVERTER 15V 2W |
127 |
|
Datasheet |
PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 134mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
SCW08C-12DC DC CONVERTER 12V 8W |
1,422 |
|
Datasheet |
SCW08 (8W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 670mA | 8 W | 1 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 71°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
AYA01C05-LDC DC CONVERTER 15V 3W |
1,036 |
|
Datasheet |
AYA (3W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 10V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
BMR4613101/001DC DC CONVERTER 0.6-5V 60W |
326 |
|
Datasheet |
BMR461 (60W) | 32-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 5V | - | - | - | 12A | 60 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 120°C (With Derating) | 95.8% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
PTN04050CASDC DC CONVERTER 5-15V |
339 |
|
Datasheet |
PTN04050C (12W) | 4-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 5 ~ 15V | - | - | - | 2.4A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | - | - | - | - | |
|
MYSGK4R030ERSRDC DC CONVERTER 0.7-4V 120W |
800 |
|
Datasheet |
MonoBlock MYSGK | 54-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 15V | 0.7 ~ 4V | - | - | - | 30A | 120 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 94.4% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
|
LTM4701EV#PBF20VIN, 10A UMODULE REGULATOR |
260 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
PTH12060LAHDC DC CONVERTER 0.8-1.8V |
357 |
|
Datasheet |
PTH12060 | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | - | - | - | - | |
|

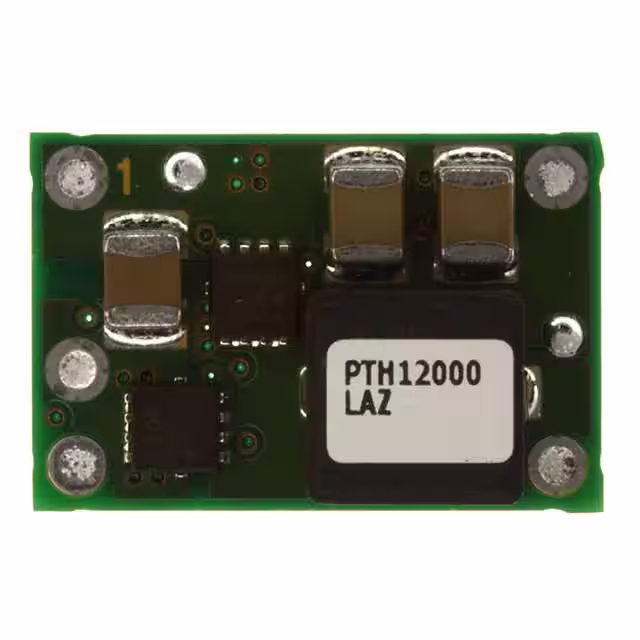

PTH12000LAZDC DC CONVERTER 0.8-1.8V |
42 |
|
Datasheet |
PTH12000 | 5-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | - | - | - | - | |
|
|
BMR4614101/001DC DC CONVERTER 0.6-1.8V 32W |
530 |
|
Datasheet |
BMR461 (60W) | 32-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 1.8V | - | - | - | 18A | 32 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 120°C (With Derating) | 91.6% | - | - | Surface Mount | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
