DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REC5-2409SRW/H2/A/X2DC DC CONVERTER 9V 5W |
0 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 556mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 83% | - | - | Through Hole | - | - | - | - | |
|
|
REC5-2412SRW/H2/A/X2DC DC CONVERTER 12V 5W |
0 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 420mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | - | - | - | - | |
|
|
REC5-2415SRW/H2/A/X2DC DC CONVERTER 15V 5W |
0 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 340mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 86% | - | - | Through Hole | - | - | - | - | |
|
|
REC5-243.3SRW/H2/A/X2DC DC CONVERTER 3.3V 5W |
0 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1A | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 77% | - | - | Through Hole | - | - | - | - | |
|
ULT-3.3/7.5-D48N-CDC DC CONVERTER 3.3V 25W |
0 |
|
Datasheet |
ULT | 8-DIP Module, 1/32 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 7.5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 85.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
ULT-5/5-D48N-CDC DC CONVERTER 5V 25W |
0 |
|
Datasheet |
ULT | 8-DIP Module, 1/32 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|

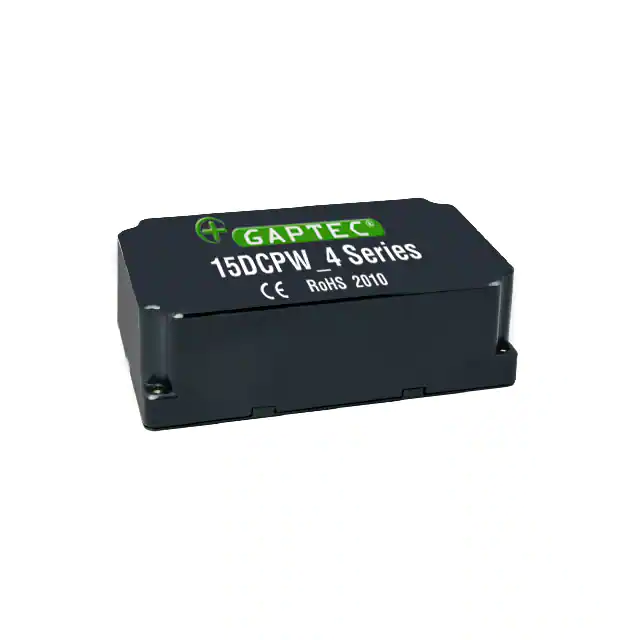

15DCPW_12S4ISOLATED MODULE DC DC CONVERTERS |
4 |
|
Datasheet |
15DCPW_4 (15W) | 5-DIP Module | Retail Package | Obsolete | Isolated Module | 1 | 200V | 1500V | 12V | - | - | - | 1.25A | 15 W | 4 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 71% | - | - | Through Hole | - | - | CE | - | |
|
|
15DCPW_15S4ISOLATED MODULE DC DC CONVERTERS |
3 |
|
Datasheet |
15DCPW_4 (15W) | 5-DIP Module | Retail Package | Obsolete | Isolated Module | 1 | 200V | 1500V | 15V | - | - | - | 1A | 15 W | 4 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 72% | - | - | Through Hole | - | - | CE | - | |
|
|
15DCPW_24S4ISOLATED MODULE DC DC CONVERTERS |
0 |
|
Datasheet |
15DCPW_4 (15W) | 5-DIP Module | Retail Package | Obsolete | Isolated Module | 1 | 200V | 1500V | 24V | - | - | - | 625mA | 15 W | 4 kV | ITE (Commercial) | - | -40°C ~ 70°C (With Derating) | 74% | - | - | Through Hole | - | - | CE | - | |
|
REC3-1205DRW/H2/A/M/SMDDC DC CONVERTER +/-5V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-1205DRW/H2/C/M/SMDDC DC CONVERTER +/-5V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-1209DRW/H2/A/M/SMDDC DC CONVERTER +/-9V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 9V | -9V | - | - | 165mA, 165mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-1209DRW/H2/C/M/SMDDC DC CONVERTER +/-9V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 9V | -9V | - | - | 165mA, 165mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-1212DRW/H2/A/M/SMDDC DC CONVERTER +/-12V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-1212DRW/H2/C/M/SMDDC DC CONVERTER +/-12V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-1215DRW/H2/A/M/SMDDC DC CONVERTER +/-15V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-1215DRW/H2/C/M/SMDDC DC CONVERTER +/-15V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-2405DRW/H2/A/M/SMDDC DC CONVERTER +/-5V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-2405DRW/H2/C/M/SMDDC DC CONVERTER +/-5V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
|
|
REC3-2409DRW/H2/A/M/SMDDC DC CONVERTER +/-9V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 9V | -9V | - | - | 165mA, 165mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - |
