DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

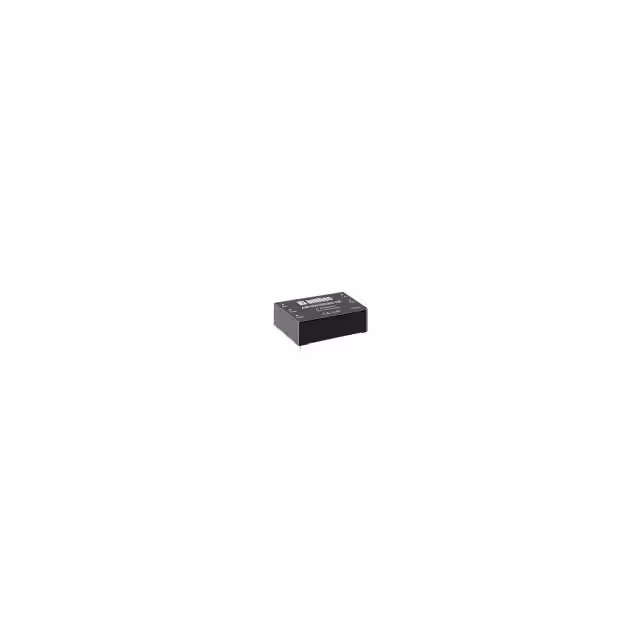

AM10W-60005S-NZDC DC CONVERTER 5V 10W |
1 |
|
Datasheet |
AM10W-NZ (10W) | - | Bulk | Obsolete | Isolated Module | 1 | 100V | 1000V | 5V | - | - | - | 2A | 10 W | 4 kV | ITE (Commercial) | - | -40°C ~ 70°C | 72% | - | - | Through Hole | - | - | CE | - | |
|
ZUW31212-GDC DC CONVERTER +/-12V 24V 3.1W |
0 |
|
Datasheet |
ZUW (3W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 74% | - | - | Through Hole | - | - | - | - | |
|
|
ZUW32412-GDC DC CONVERTER +/-12V 24V 3.1W |
0 |
|
Datasheet |
ZUW (3W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 74% | - | - | Through Hole | - | - | - | - | |
|
12DPW_4812D1.5DC-DC INDUSTRIAL |
0 |
|
Datasheet |
12DPW_1.5 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
|
12DPW_1212D1.5DC-DC INDUSTRIAL |
0 |
|
Datasheet |
12DPW_1.5 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
|
12DPW_4805D1.5DC-DC INDUSTRIAL |
0 |
|
Datasheet |
12DPW_1.5 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 1.2A, 1.2A | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
|
12DPW_4815D1.5DC-DC INDUSTRIAL |
0 |
|
Datasheet |
12DPW_1.5 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
|
12DPW_1205D1.5DC-DC INDUSTRIAL |
0 |
|
Datasheet |
12DPW_1.5 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 1.2A, 1.2A | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
|
12DPW_2405D1.5DC-DC INDUSTRIAL |
0 |
|
Datasheet |
12DPW_1.5 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 1.2A, 1.2A | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
REC3-0505SRW/H6/A/SMD/CTRL-RDC DC CONVERTER 5V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 6 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 80°C | 79% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-0509SRW/H6/A/SMD/CTRL-RDC DC CONVERTER 9V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 9V | 9V | - | - | - | 330mA | 3 W | 6 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 80°C | 83% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-0512SRW/H6/A/SMD/CTRL-RDC DC CONVERTER 12V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 6 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 80°C | 85% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-0515SRW/H6/A/SMD/CTRL-RDC DC CONVERTER 15V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 200mA | 3 W | 6 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 80°C | 86% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-053.3SRW/H6/A/SMD/CTRL-RDC DC CONVERTER 3.3V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 900mA | 3 W | 6 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 80°C | 76% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
REC3-1205DRW/H4/A/SMD/CTRL-RDC DC CONVERTER +/-5V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-1209DRW/H4/A/SMD/CTRL-RDC DC CONVERTER +/-9V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 18V | 9V | -9V | - | - | 165mA, 165mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-1212DRW/H4/A/SMD/CTRL-RDC DC CONVERTER +/-12V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-1215DRW/H4/A/SMD/CTRL-RDC DC CONVERTER +/-15V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-2405DRW/H4/A/SMD/CTRL-RDC DC CONVERTER +/-5V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
REC3-2409DRW/H4/A/SMD/CTRL-RDC DC CONVERTER +/-9V 3W |
0 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 18V | 36V | 9V | -9V | - | - | 165mA, 165mA | 3 W | 4 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | Enable, Active Low | - | - |
