DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SUCW60515C-CDC DC CONVERTER +/-15V 6W |
0 |
|
Datasheet |
SUCW (6W) | 7-DIP Module | Box | Active | Isolated Module, Conformal Coated | 2 | 4.5V | 9V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - | |
|
|
SUCW61212C-CDC DC CONVERTER +/-12V 24V 6W |
0 |
|
Datasheet |
SUCW (6W) | 7-DIP Module | Box | Active | Isolated Module, Conformal Coated | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
|
SUCW61215C-CDC DC CONVERTER +/-15V 6W |
0 |
|
Datasheet |
SUCW (6W) | 7-DIP Module | Box | Active | Isolated Module, Conformal Coated | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
|
SUCW62412C-CDC DC CONVERTER +/-12V 24V 6W |
0 |
|
Datasheet |
SUCW (6W) | 7-DIP Module | Box | Active | Isolated Module, Conformal Coated | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
|
SUCW62415C-CDC DC CONVERTER +/-15V 6W |
0 |
|
Datasheet |
SUCW (6W) | 7-DIP Module | Box | Active | Isolated Module, Conformal Coated | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
|
SUCW64812C-CDC DC CONVERTER +/-12V 24V 6W |
0 |
|
Datasheet |
SUCW (6W) | 7-DIP Module | Box | Active | Isolated Module, Conformal Coated | 2 | 36V | 76V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
|
SUCW64815C-CDC DC CONVERTER +/-15V 6W |
0 |
|
Datasheet |
SUCW (6W) | 7-DIP Module | Box | Active | Isolated Module, Conformal Coated | 2 | 36V | 76V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
RDL03-110S12WDC DC CONVERTER 12V 3W |
0 |
|
Datasheet |
RDL03W (3W) | 12-SIP Module, 10 Leads | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CE, cURus | 60950-1; 62368-1 | ||
|
|
RDL03-110S05WDC DC CONVERTER 5V 3W |
0 |
|
Datasheet |
RDL03W (3W) | 12-SIP Module, 10 Leads | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | - | CB, CE, cURus | 62368-1 | ||
|

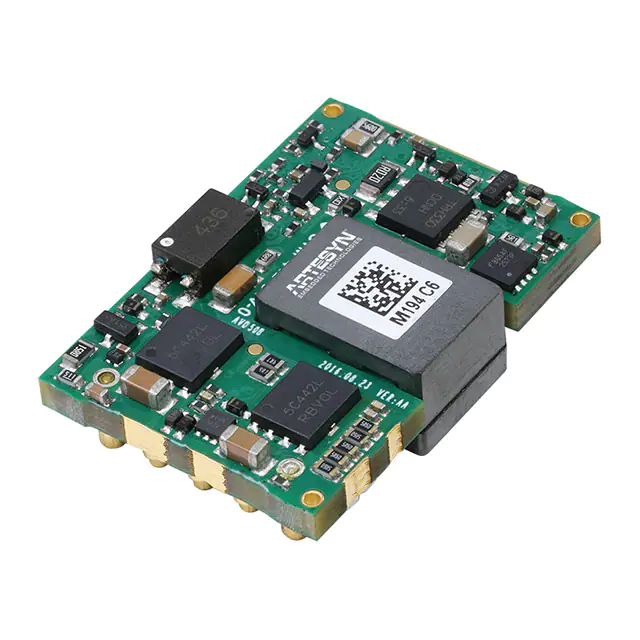

AVD50B-48S05TLDC DC CONVERTER 5V 50W |
0 |
|
Datasheet |
AVD50B (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 91.5% | - | - | Surface Mount | Sixteenth Brick | - | - | - | |
|
|
AVD50B-48S12TLDC DC CONVERTER 12V 50W |
0 |
|
Datasheet |
AVD50B (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4.17A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 93% | - | - | Surface Mount | Sixteenth Brick | - | - | - | |
|
EC2SBW-24D12DC DC CONVERTER +/-12V 10W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-24D15DC DC CONVERTER +/-15V 10W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-48S33DC DC CONVERTER 3.3V 8.3W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2.5A | 8.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-48S05DC DC CONVERTER 5V 10W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-48S12DC DC CONVERTER 12V 10W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 835mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-48D05DC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-48D12DC DC CONVERTER +/-12V 10W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-48D15DC DC CONVERTER +/-15V 10W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 | |
|
|
EC2SBW-24S33NDC DC CONVERTER 3.3V 8.3W |
0 |
|
Datasheet |
EC2SBW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2.5A | 8.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | Enable, Active Low | CE | 60950-1 |
