DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JTA2024S12DC DC CONVERTER 12V 20W |
0 |
|
Datasheet |
JTA (20W) | 8-DIP Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|
|
JTA2048S05DC DC CONVERTER 5V 20W |
0 |
|
Datasheet |
JTA (20W) | 8-DIP Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
JTA2048S12DC DC CONVERTER 12V 20W |
0 |
|
Datasheet |
JTA (20W) | 8-DIP Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
JHVG004A2B4-PHZDC DC CONVERTER 12V 50W |
0 |
|
- |
JHVG (50W) | Half Brick | Bulk | Active | Isolated Module | 1 | 80V | 400V | 12V | - | - | - | 4.17A | 50 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C (With Derating) | 89.4% | - | - | Through Hole | Half Brick | - | - | - | |
|

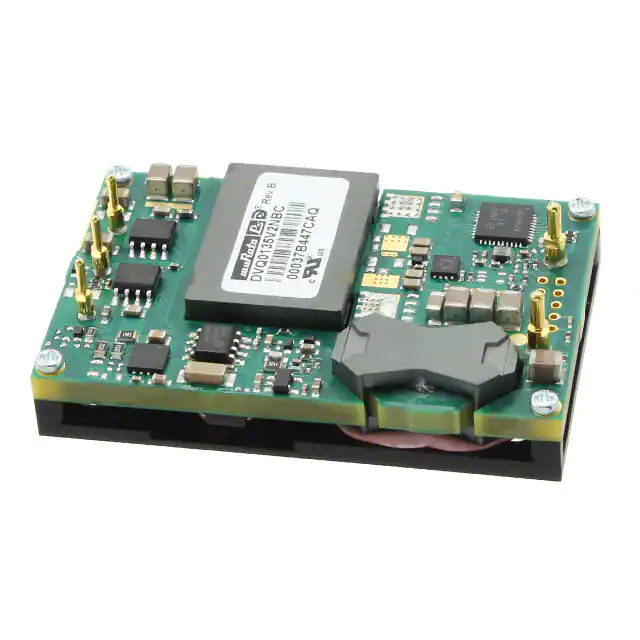

DBQ0135V2NBCDC DC CONVERTER 12V 420W |
0 |
|
Datasheet |
DBQ (420W) | 16-DIP Module (15 Leads), 1/4 Brick | Tray | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95.2% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
DVQ0135V2NBSCDC DC CONVERTER 12V 420W |
0 |
|
Datasheet |
DBQ (420W) | 16-DIP Module (15 Leads), 1/4 Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95.2% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
DBQ0260V2NBCPOWERM |
0 |
|
Datasheet |
DBQ (420W) | Quarter Brick | Tray | Active | Intermediate Bus Converter, Digital | 1 | 36V | 75V | 12V | - | - | - | 35A | 198 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 92.5% | - | - | Through Hole | Quarter Brick | Enable, Active High | cURus | 60950-1 | |
|
TEN 20-4812WIDC DC CONVERTER 12V 20W |
0 |
|
Datasheet |
TEN 20WI (20W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
|
TEN 20-4813WIDC DC CONVERTER 15V 20W |
0 |
|
Datasheet |
TEN 20WI (20W) | 7-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 1.33A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
REM10-0505D/ADC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-0505D/CDC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-1205D/ADC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 84% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-1205D/CDC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 84% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-2405D/ADC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 85% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-2405D/CDC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 85% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-4805D/ADC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 85% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-4805D/CDC DC CONVERTER +/-5V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 85% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-0512D/ADC DC CONVERTER +/-12V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 416mA | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 85.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-0512D/CDC DC CONVERTER +/-12V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 416mA | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 85.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REM10-1212D/ADC DC CONVERTER +/-12V 10W |
0 |
|
Datasheet |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active Low | - | - |
