DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

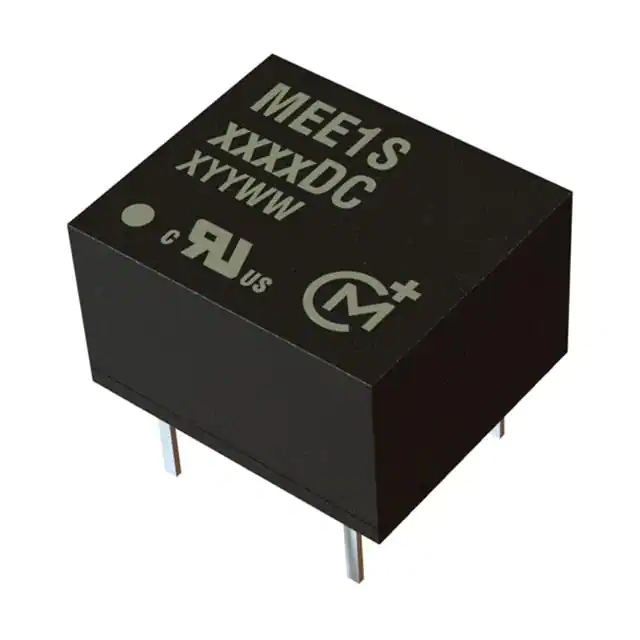

MEE1S1509DCDC DC CONVERTER 9V 1W |
105 |
|
Datasheet |
MEE1 (1W) | 8-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
2T8A1_0503S1.5UPDC-DC INDUSTRIAL |
0 |
|
Datasheet |
2T8A1_1.5UP (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 400mA | 1.32 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 72% | - | - | Surface Mount | - | - | CE | 60950-1 | |
|
MTE1S1515MC-RDC DC CONVERTER 15V 1W |
1,500 |
|
Datasheet |
MTE1 (1W) | 8-SMD Module | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Surface Mount | - | - | - | - | |
|
AMSRI1-783.3L-NZDC DC CONVERTER 3.3V 3.3W |
262 |
|
Datasheet |
AMSRI1-78-NZ (15W) | 3-SIP Module | Tube | Obsolete | Non-Isolated PoL Module | 1 | 6V | 36V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | cURus, UL | - | |
|
PQME1-S12-S5-M-TRDC-DC ISOLATED 1.5KV, 0.75 W, 11 |
297 |
|
Datasheet |
PQME1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 150mA | 750 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 72% | - | - | Surface Mount | - | - | CE | 62368-1 | |
|
|
K12MT-12A-NNON-ISOLATED POL MODULE DC DC CO |
680 |
|
Datasheet |
K12MT-12A | 17-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 4.5V | 14.4V | 0.6 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
K12MT-12A-PNON-ISOLATED POL MODULE DC DC CO |
672 |
|
Datasheet |
K12MT-12A | 17-SMD Module | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 4.5V | 14.4V | 0.6 ~ 5.5V | - | - | - | 12A | 66 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
RNM-1209SDC DC CONVERTER 9V 1W |
273 |
|
Datasheet |
ECONOLINE RNM (1W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
V78E12-1000-SMT-TRDC DC CONVERTER 12V 12W |
16 |
|
Datasheet |
V78E-1000-SMT | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 16V | 36V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | - | - | - | - | |
|
AM1D-0515DH60ZDC DC CONVERTER +/-15V 990MW |
200 |
|
Datasheet |
AM1D-Z (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | CE, cURus | - | |
|
|
AM2D-1207SH30ZDC DC CONVERTER 7.2V 2W |
200 |
|
Datasheet |
AM2D-Z (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 7.2V | - | - | - | 278mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | CE | - | |
|
|
AM2D-1209SZDC DC CONVERTER 9V 2W |
200 |
|
Datasheet |
AM2D-Z (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | CE | - | |
|
AM1D-1205SH40ZDC DC CONVERTER 5V 1W |
200 |
|
Datasheet |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | CE, cULus, cURus | - | |
|
|
AM1D-1505DH40ZDC DC CONVERTER +/-5V 1W |
200 |
|
Datasheet |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | -5 ~ 5V | -5V | - | - | 100mA, 100mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | CE, cULus, cURus | - | |
|
AM2D-1215DH30ZDC DC CONVERTER +/-15V 2W |
200 |
|
Datasheet |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | -15 ~ 15V | -15V | - | - | 67mA, 67mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 7-SIP | - | CE | - | |
|
AM2D-1218DH30ZDC DC CONVERTER +/-18V 2W |
200 |
|
Datasheet |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | -18 ~ 18V | -18V | - | - | 55mA, 55mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | CE | - | |
|
AM2D-1215SH30ZDC DC CONVERTER 15V 2W |
200 |
|
Datasheet |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 134mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1D-1503SH60ZDC DC CONVERTER 3.3V 1W |
200 |
|
Datasheet |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 3.3V | - | - | - | 303mA | 1 W | 6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | CE, cULus, cURus | - | |
|
|
AM1D-1505SH52ZDC DC CONVERTER 5V 1W |
200 |
|
Datasheet |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | CE, cULus, cURus | - | |
|
|
AM1D-1207SH52ZDC DC CONVERTER 7.2V 1W |
200 |
|
Datasheet |
AM1D-Z (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 7.2V | - | - | - | 139mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | CE, cULus, cURus | - |
