DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT6343CDC DC CONVERTER 2.5V 6A |
248 |
|
Datasheet |
Excalibur™ PT6340 | 12-SIP SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 2.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6344CDC DC CONVERTER 1.8V 6A |
238 |
|
Datasheet |
Excalibur™ PT6340 | 12-SIP SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6343NDC DC CONVERTER 2.5V 6A |
106 |
|
Datasheet |
Excalibur™ PT6340 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 2.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - | |
.JPG)
|
PT6341A2MULTICHIP-JAPAN ONLY |
315 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

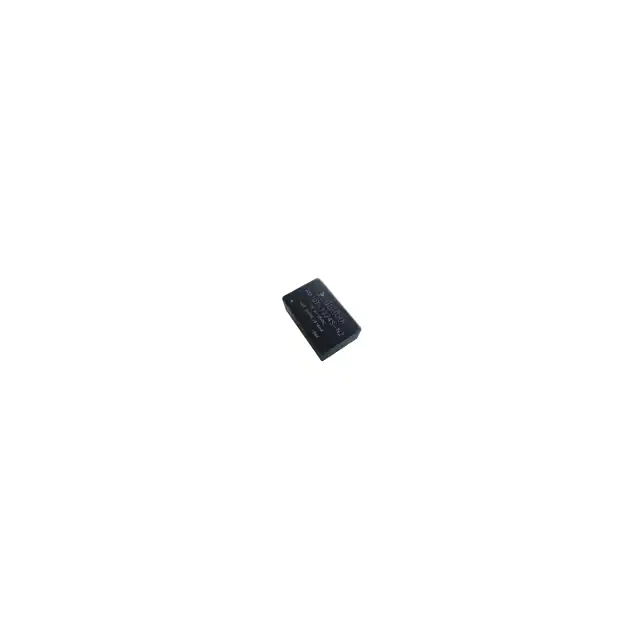

AM10TW-4815S-NZDC DC CONVERTER 15V 10W |
105 |
|
Datasheet |
AM10TW-NZ (10W) | 24-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 667mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | CE, UL | - | |
|
|
PT6409PDC DC CONVERTER 2.5V 3A |
0 |
|
Datasheet |
PT6400 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 2.5V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - | |
|
|
PT6305NDC DC CONVERTER 3.3V 3A |
0 |
|
Datasheet |
PT6305 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 70°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
PT6305CDC DC CONVERTER 3.3V 3A |
0 |
|
Datasheet |
PT6305 | 12-SIP SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 70°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6404DDC DC CONVERTER 1.5V 3A |
0 |
|
Datasheet |
PT6400 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.5V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 74% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT6407EDC DC CONVERTER 2.1V 3A |
0 |
|
Datasheet |
PT6400 | 12-SIP SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 2.1V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 70°C | 77% | - | - | Surface Mount | - | - | - | - | |
|
|
PT6409DDC DC CONVERTER 2.5V 3A |
0 |
|
Datasheet |
PT6400 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 2.5V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 77% | - | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT6308ADC DC CONVERTER 1.2V 3A |
0 |
|
Datasheet |
PT6305 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 6V | 1.2V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 70°C | 57% | - | - | Through Hole, Right Angle | - | - | - | - | |
|

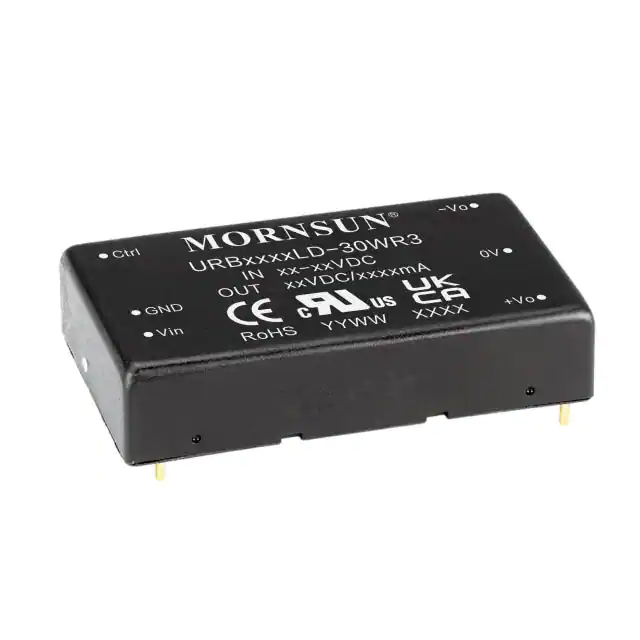

URB2415LD-30WR3DC DC CONVERTER 15V 30W |
599 |
|
Datasheet |
URB2415LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | CB, CE, cURus, UKCA, UL | 60950-1; 62368-1 | |
|
|
URB2424LD-30WR3DC DC CONVERTER 24V 30W |
167 |
|
Datasheet |
URB2424LD-30WR3 (30W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | - | - | CB, CE, cURus, UKCA, UL | 60950-1; 62368-1 | |
|
|
PT6405ETDC DC CONVERTER 3.3V |
0 |
|
Datasheet |
PT6400 | 12-SIP SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 3A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - | |
|

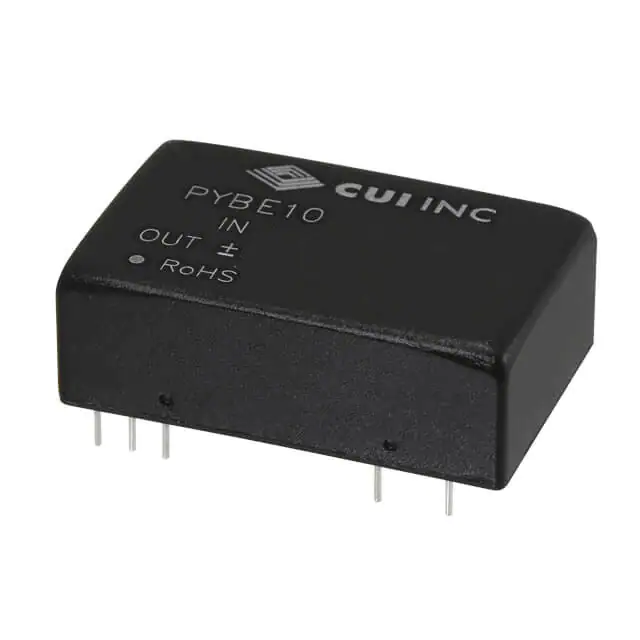

PYBE10-Q24-S3DC DC CONVERTER 3.3V 7.9W |
114 |
|
Datasheet |
PYBE10 (10W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2.4A | 7.9 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
VCF4805EBO-75WR3-NISOLATED MODULE DC DC CONVERTER |
130 |
|
Datasheet |
VCF48_EBO-75W(F)R3-N (75W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 92.5% | - | - | Through Hole | Eighth Brick | Enable, Active Low | - | - | |
|
|
VCF4812EBO-75WR3-NISOLATED MODULE DC DC CONVERTER |
118 |
|
Datasheet |
VCF48_EBO-75W(F)R3-N (75W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 6.25A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 93.5% | - | - | Through Hole | Eighth Brick | Enable, Active Low | - | - | |
|
VAWQ3-Q48-D15HDC DC CONVERTER +/-15V 3W |
0 |
|
Datasheet |
VAWQ3 (3W) | 24-DIP Module, 15 Leads | Bulk | Active | Isolated Module | 2 | 18V | 72V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | - | - | - | - | |
|
PQM3-D24-S15-M-TRDC DC CONVERTER 15V 3W |
400 |
|
Datasheet |
PQM3-M (3W) | 16-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
