DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

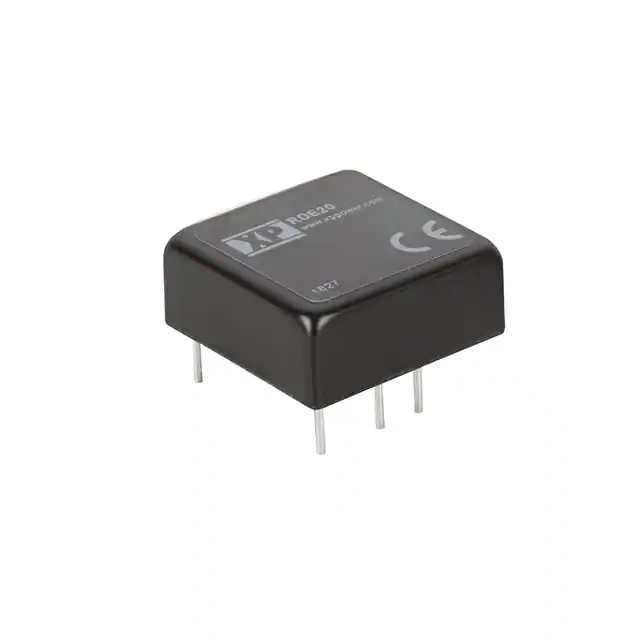

RDE2024S15DC DC CONVERTER 15V 20W |
26 |
|
Datasheet |
RDE20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 13V | 70V | 15V | - | - | - | 1.33A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
EN6363QIDC DC CONVERTER 0.75-6.12V |
2,024 |
|
Datasheet |
Enpirion® | 34-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 6.6V | 0.75 ~ 6.12V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 34-QFN (4x6) | Enable, Active High | - | - | |
|
|
PTB48530AAZDC DC CONVERTER 48V 27W |
0 |
|
- |
PTB48530A | - | Tray | Obsolete | Isolated Module | 2 | 3V | 3.6V | - | - | - | - | - | 27 W | - | ITE (Commercial) | - | - | - | - | - | Surface Mount | - | - | - | - | |
|
|
RDT-6Y03DC-DC,14-160V INPUT, 3.3V/1.45A |
51 |
|
Datasheet |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 3.3V | - | - | - | 1.454A | 4.8 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 75% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
RDT-6Y12DC-DC,14-160V INPUT, 12V/0.5A OU |
50 |
|
Datasheet |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | - | - | cCSAus, CE, UKCA | 62368-1 | |
|
|
UWTH1D54LD-20WR3ISOLATED MODULE DC DC CONVERTER |
36 |
|
Datasheet |
UWTH1D_LD-20W(F/H)R3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 370mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | - | CB, cCSAus, CE, CSA, EN, IEC, UKCA | 62368-1 | |
|
|
AM20JW-2405SH30ZDC DC CONVERTER 5V 20W |
40 |
|
Datasheet |
AM20JW-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
|
AM20JW-2412SH30ZDC DC CONVERTER 12V 20W |
29 |
|
Datasheet |
AM20JW-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 88.5% | - | - | Through Hole | - | - | - | - | |
|
|
NVS0.3EJ-M6DC DC CONVERTER 15V 6W |
196 |
|
Datasheet |
NV (6W) | 14-SMD Module | Bulk | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 280mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 110°C | 82% | - | - | Surface Mount | - | - | - | - | |
|

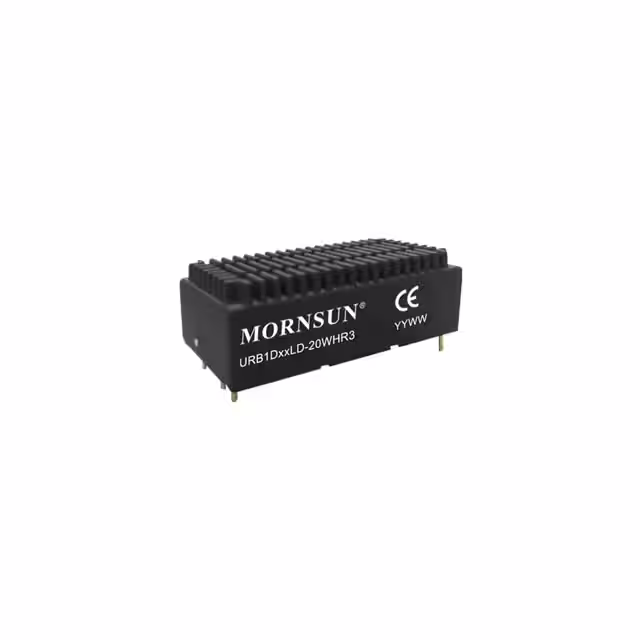

URB1D15LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
38 |
|
Datasheet |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 110V | 15V | - | - | - | 1.33A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
|
UWS-3.3/15-Q12P-CDC DC CONVERTER 3.3V 50W |
169 |
|
Datasheet |
UWS-Q12 | Sixteenth Brick | Tray | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | Sixteenth Brick | Enable, Active High | cURus | - | |
|
|
PT6901CDC DC CONVERTER -2V |
0 |
|
Datasheet |
PT6900 (12W) | 23-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | -2V | - | - | - | 6A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 70% | - | - | Surface Mount | - | - | - | - | |
|
|
PT7601NDC DC CONVERTER 1.3-3.5V 11A |
0 |
|
Datasheet |
PT7600 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 10A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
|
PTQA430025N2ADDC DC CONVERTER 2.5V 100W |
0 |
|
Datasheet |
PTQA430025 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - | |
|
|
PTQA430025P2ADDC DC CONVERTER 2.5V 100W |
0 |
|
Datasheet |
PTQA430025 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - | |
|
|
TWA3-12-12DC DC CONVERTER +/-12V 3W |
30 |
|
Datasheet |
TWA3 (3W) | 24-DIP Module, 12 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -25°C ~ 71°C | 76% | - | - | Through Hole | - | - | - | - | |
|
|
PTB48600AASDC DC CONVERTER +/-5V 85W |
0 |
|
Datasheet |
PTB48600 (85W) | 8-SMD Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 8.5A, 8.5A | 85 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - | |
|
|
VCB4812EBO-400WR3-NISOLATED MODULE DC DC CONVERTER |
26 |
|
Datasheet |
VCB48_EBO-400WR3-N (400W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | Eighth Brick | - | - | - | |
.jpg)
|
REC6-4824SRW/R10/CDC DC CONVERTER 24V 6W |
180 |
|
Datasheet |
ECONOLINE REC6/R (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 250mA | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | - | - | - | - | |
|
|
PT4563CDC DC CONVERTER 12V 30W |
0 |
|
Datasheet |
Excalibur™ PT4560 (30W) | 19-SMD Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | - | - | - | - |
