DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QPS3120N019N25WDC DC CONVERTER 12V 228W |
50 |
|
Datasheet |
QPS | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 19A | 228 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 93.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | cURus | - | |
|

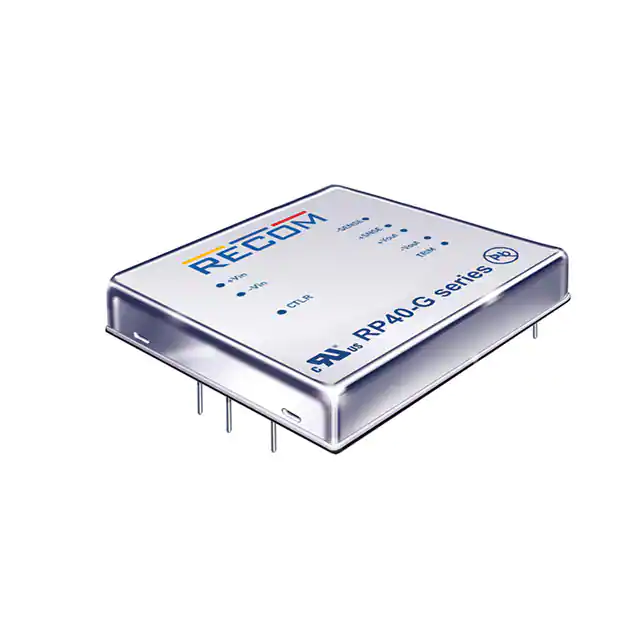

RP40-120512TGDC DC CONVERTER 5V +/-12V 40W |
28 |
|
Datasheet |
POWERLINE RP40-G (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 9V | 18V | 5V | 12V | -12V | - | 6A, 400mA, 400mA | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - | |
|

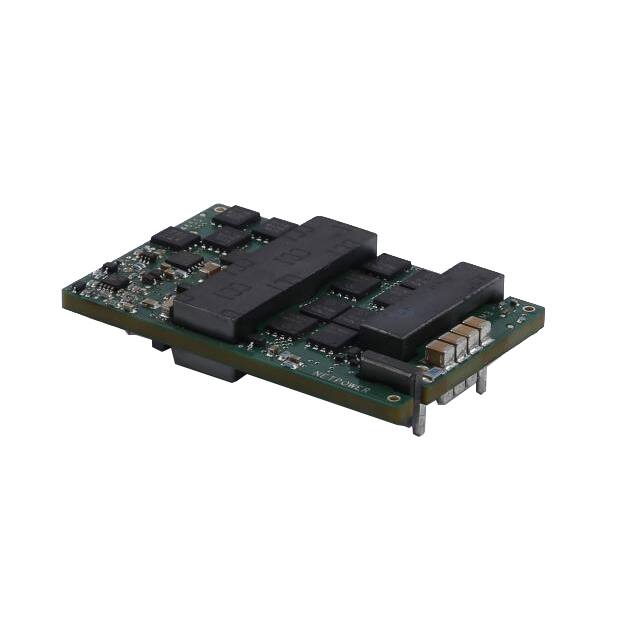

QBC4120N033N75DC DC CONVERTER 12V 396W |
50 |
|
Datasheet |
QBC | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 95.5% | - | - | Through Hole | Quarter Brick | Enable, Active Low | cURus | - | |
|
UIE48T36033-NDABGDC DC CONVERTER 3.3V 120W |
0 |
|
Datasheet |
UIB (120W) | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 36A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
QBC4050N060N75DC DC CONVERTER 5V 300W |
45 |
|
Datasheet |
QBC | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 60A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 85°C | 95% | - | - | Through Hole | Quarter Brick | Enable, Active Low | cURus | - | |
|

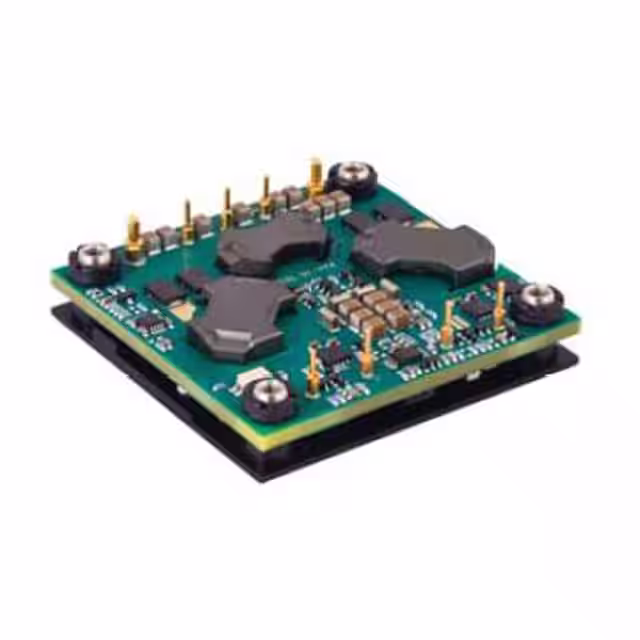

PAH-28/12.5-D24PB-CDC DC CONVERTER 28V 350W |
47 |
|
Datasheet |
PAH (450W) | 9-DIP Module, 1/2 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 12.5A | 350 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92.5% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
SQ48T04120-PDA0GDC DC CONVERTER 12V 48W |
0 |
|
Datasheet |
SemiQ™ SQ48 | Eighth Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | Eighth Brick | - | - | - | |
|
|
SQ48T10050-NBC0GDC DC CONVERTER 5V 50W |
0 |
|
Datasheet |
SemiQ™ SQ48 (50W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | Eighth Brick | - | - | - | |
|
|
SQ48T04120-NBB0GDC DC CONVERTER 12V 48W |
0 |
|
Datasheet |
SemiQ™ SQ48 | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
URF2424QB-100WHR3DC DC CONVERTER 24V 100W |
26 |
|
Datasheet |
URF24_QB-100W (100W) | 8-DIP Module | Bulk | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 4.2A | 101 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | CE, UKCA | 62368-1 | |
|

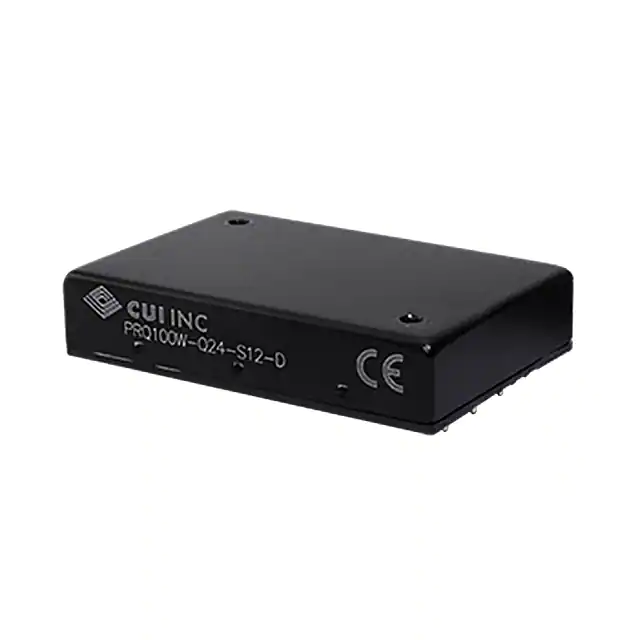

PRQ100W-Q24-S15-DDC DC CONVERTER 15V 101W |
48 |
|
Datasheet |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.7A | 101 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CE | - | |
|
|
ATMV24V300V20MA16W Isolated DC-DC Power Module |
100 |
|
Datasheet |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 18V | 36V | 300V | - | - | - | 20mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|

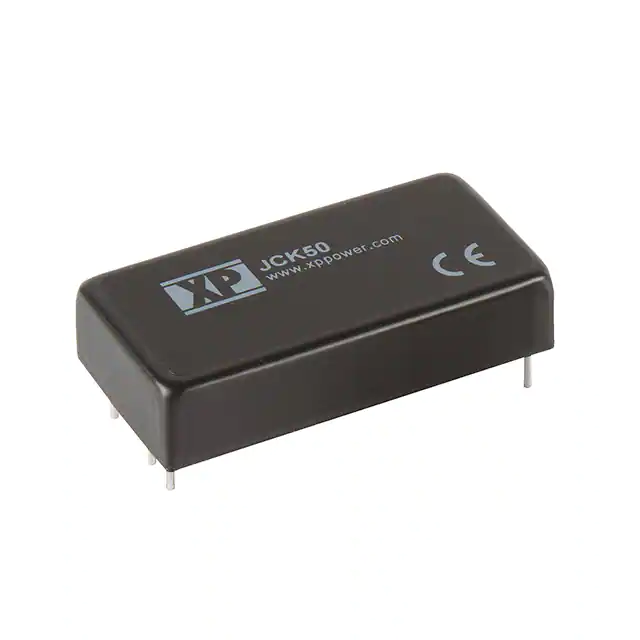

JCK5012S12DC DC CONVERTER 12V 50W |
60 |
|
Datasheet |
JCK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 4.17A | 50 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 95°C (With Derating) | 89% | - | - | Through Hole | 6-DIP | - | - | 62368-1 | |
|
|
JCK5048S15DC DC CONVERTER 15V 50W |
30 |
|
Datasheet |
JCK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.33A | 50 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 95°C (With Derating) | 92% | - | - | Through Hole | 6-DIP | - | - | 62368-1 | |
|
|
PT7721CDC DC CONVERTER 1.3-3.5V 15A |
0 |
|
Datasheet |
PT7720 | 27-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 11V | 14V | 1.3 ~ 3.5V | - | - | - | 17A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 88% | - | - | Surface Mount | - | - | - | - | |
|
|
PRD25-D48-S12-P-DDC DC CONVERTER 12V 25W |
159 |
|
Datasheet |
PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 2.1A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
PTEA420033N2ADDC DC CONVERTER 3.3V 66W |
0 |
|
Datasheet |
PTEA420033 | 8-DIP Module, 1/8 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 20A | 66 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|
|
PTEA420033P2ADDC DC CONVERTER 3.3V 66W |
0 |
|
Datasheet |
PTEA420033 | 8-DIP Module, 1/8 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 20A | 66 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Through Hole | - | - | - | - | |
|
|
PTEA420025P2ADDC DC CONVERTER 2.5V 50W |
0 |
|
Datasheet |
PTEA420025 | 8-DIP Module, 1/8 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 20A | 50 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|

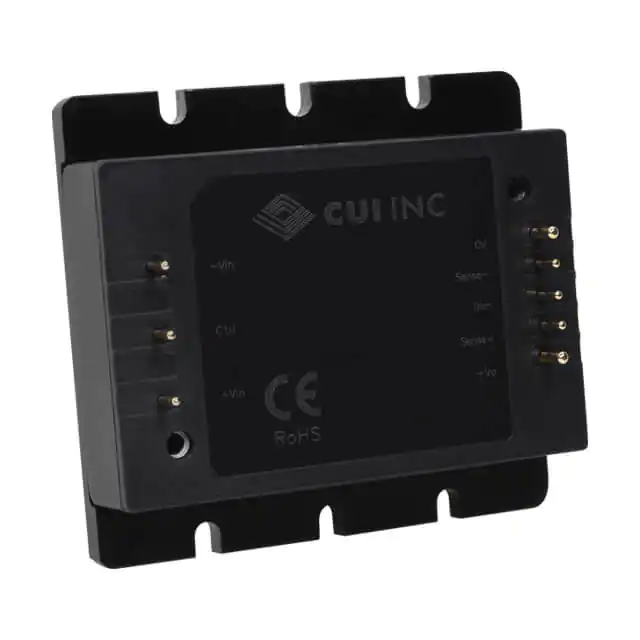

PRQ100W-Q48-S15-B-DDC DC CONVERTER 15V 101W |
43 |
|
Datasheet |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 6.7A | 101 W | 2.25 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | Quarter Brick | - | CE | - |
