DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

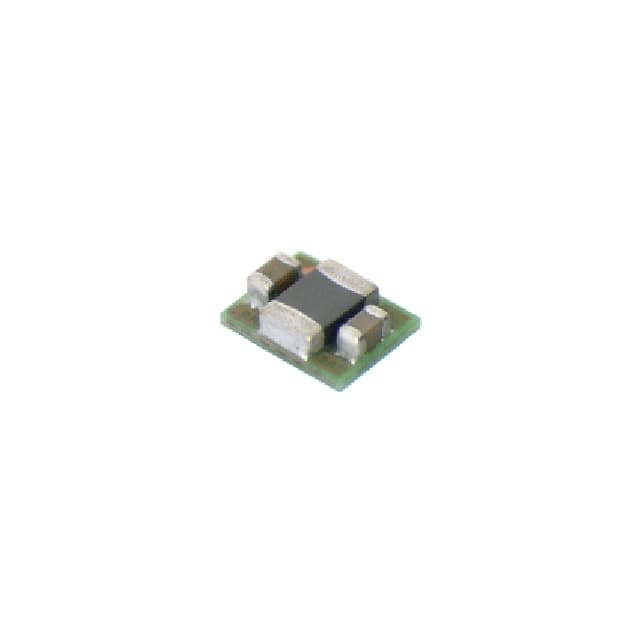

TPS826721SIPRTPS826721 600MA FULLY INTEGRATED |
65,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ZUK110S15L-75WDC DC CONVERTER +/-24V 1.968W |
20,000 |
|
Datasheet |
- | 7-SIP Module, 5 Leads | Bulk | Active | Isolated Module | 2 | 22.8V | 25.2V | 24V | -24V | - | - | 41mA, 41mA | 1.968 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | - | - | - | Through Hole | - | - | CE | - | |
|
|
S24D24-2WH2DC DC CONVERTER 2W |
500 |
|
- |
* | - | Case | Active | Isolated Module | - | 24V | - | 24V | -24V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
TPS826721SIPTTPS826721 600MA FULLY INTEGRATED |
500 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
B3.3S05-1WH2DC DC CONVERTER 5V 1W |
20,000 |
|
Datasheet |
- | 17-SIP Module | Tube | Active | Isolated Module | 1 | 3.14V | 3.47V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | 62321;62368-1;55032;61000;55035 | |
|
B05S3.3-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | 4-SIP Module | Case | Active | Isolated Module | 1 | 4.75V | 5.25V | 3.3V | - | - | - | 303mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
SC12S05-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
1WH2 | Module | Case | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B12S15-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 67mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B24S12-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 22.8V | 25.2V | 12V | - | - | - | 83mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B24S24-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 22.8V | 25.2V | 24V | - | - | - | 41mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Surface Mount | - | - | CE | - | |
|
|
B12S05-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B12S3.3-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | 4-SIP Module | Case | Active | Isolated Module | 1 | 11.4V | 12.6V | 3.3V | - | - | - | 303mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
SC12S24-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
1WH2 | Module | Case | Active | Isolated Module | 1 | 11.4V | 12.6V | 24V | - | - | - | 42mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B24S05-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 200mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B05S12-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 83mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B05S24-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 4.75V | 5.25V | 24V | - | - | - | 41mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Surface Mount | - | - | CE | - | |
|
|
SC05S24-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
1WH2 | Module | Case | Active | Isolated Module | 1 | 4.75V | 5.25V | 24V | - | - | - | 42mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B05S09-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 4.75V | 5.25V | 9V | - | - | - | 111mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B24S15-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 22.8V | 25.2V | 15V | - | - | - | 67mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - | |
|
|
B12S09-1WH2DC DC CONVERTER 1W |
20,000 |
|
Datasheet |
* | Module | Case | Active | Isolated Module | 1 | 11.4V | 12.6V | 9V | - | - | - | 111mA | 1 W | - | Industrial | - | -40°C ~ 85°C | 80 ~ 88% | - | - | Through Hole | - | - | CE | - |
