DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

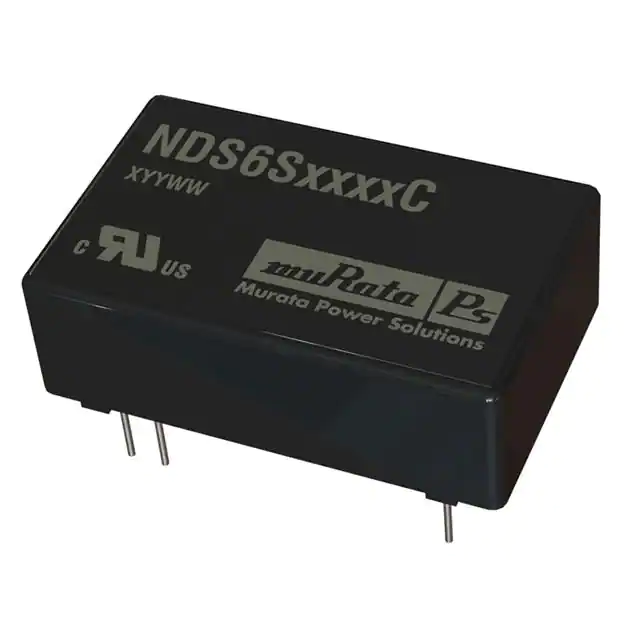

NDS6S2405CDC DC CONVERTER 5V 6W |
90 |
|
Datasheet |
NDS6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
RSO-2405S/H2DC DC CONVERTER 5V 1W |
52 |
|
Datasheet |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 85°C | 78% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
PTH12060WADDC DC CONVERTER 1.2-5.5V 10A |
31 |
|
Datasheet |
PTH12060 | 10-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - | |
|

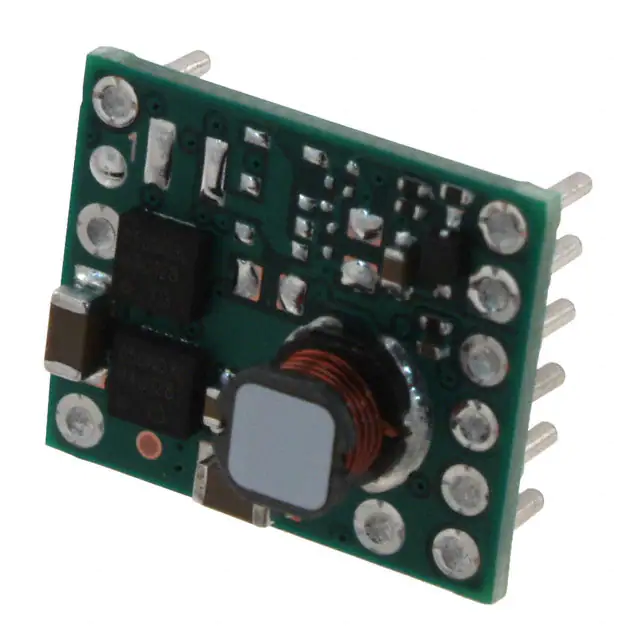

PTH08T230WADDC DC CONVERTER 0.69-5.5V |
99 |
|
Datasheet |
PTH08T230W | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - | |
|

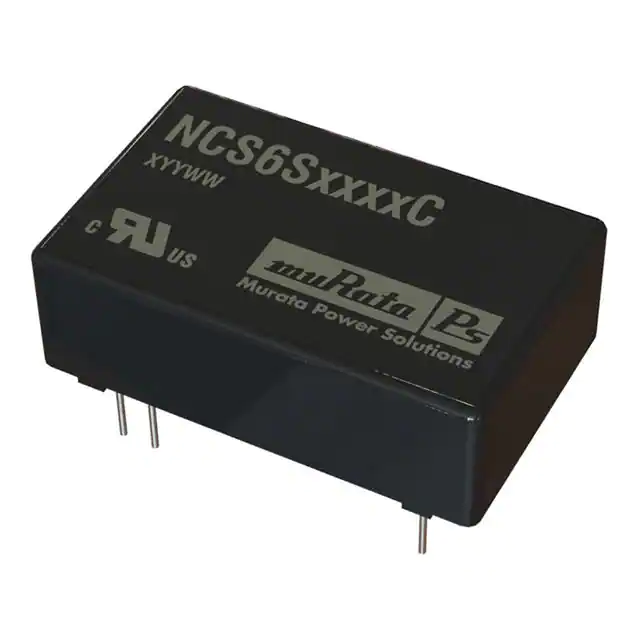

NCS6S1212CDC DC CONVERTER 12V 6W |
63 |
|
Datasheet |
NCS6 (6W) | 24-DIP Module (600 mil, 7 Leads) | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|

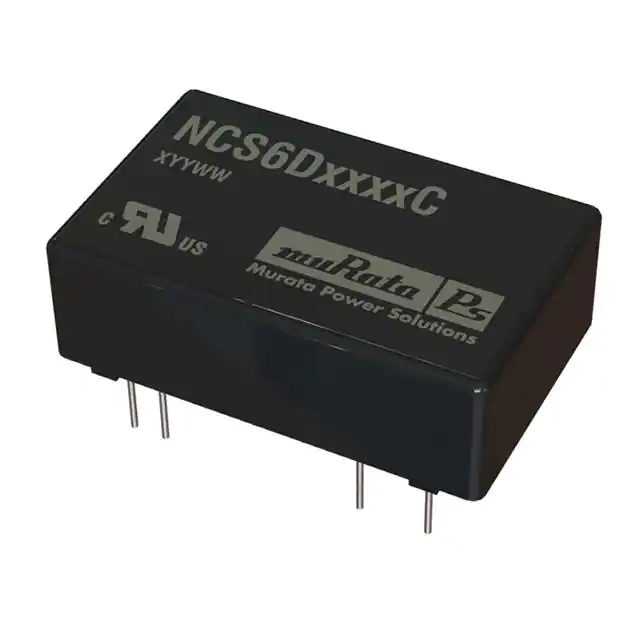

NCS6D1212CDC DC CONVERTER +/-12V 6W |
62 |
|
Datasheet |
NCS6 (6W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - | |
|
|
NCS6S1203CDC DC CONVERTER 3.3V 5W |
45 |
|
Datasheet |
NCS6 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.52A | 5 W | 1.5 kV | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
PTN04050CADDC DC CONVERTER 5-15V |
96 |
|
Datasheet |
PTN04050C (12W) | 4-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 5 ~ 15V | - | - | - | 2.4A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - | |
|

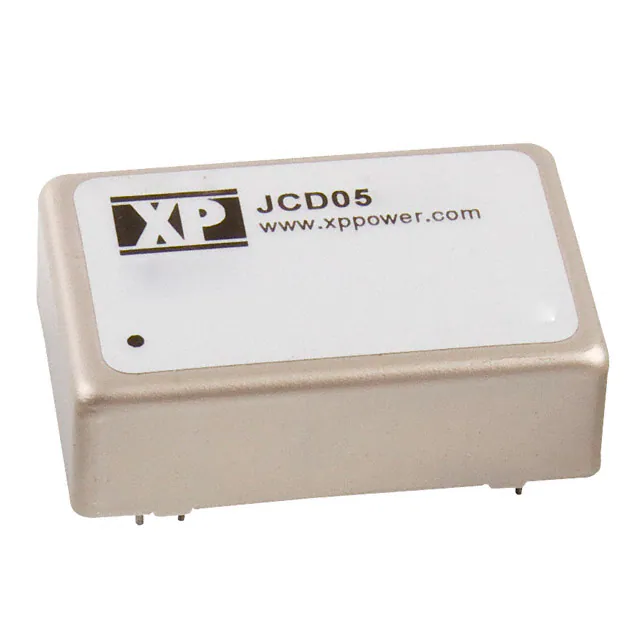

JCD0524D12DC DC CONVERTER +/-12V 5W |
17 |
|
Datasheet |
JCD (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 208mA | 5 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | - | - | - | 62368-1 | |
|

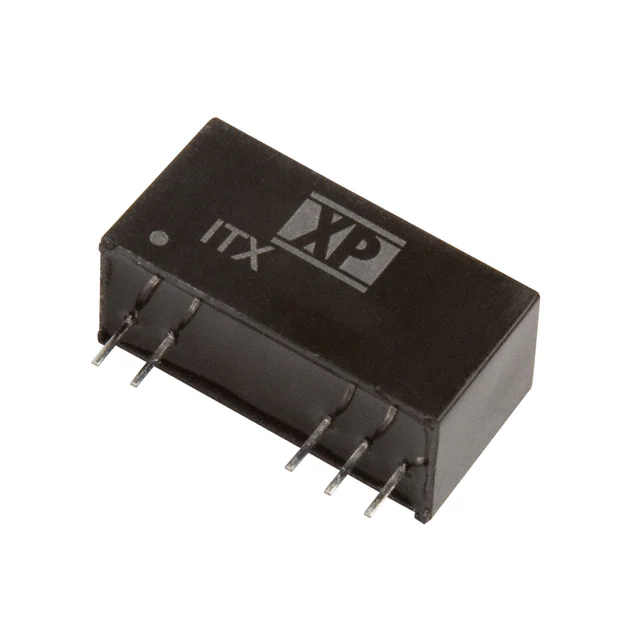

ITX2415SDC DC CONVERTER +/-15V 6W |
100 |
|
Datasheet |
ITX (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | - | - | - | 62368-1 | |
|

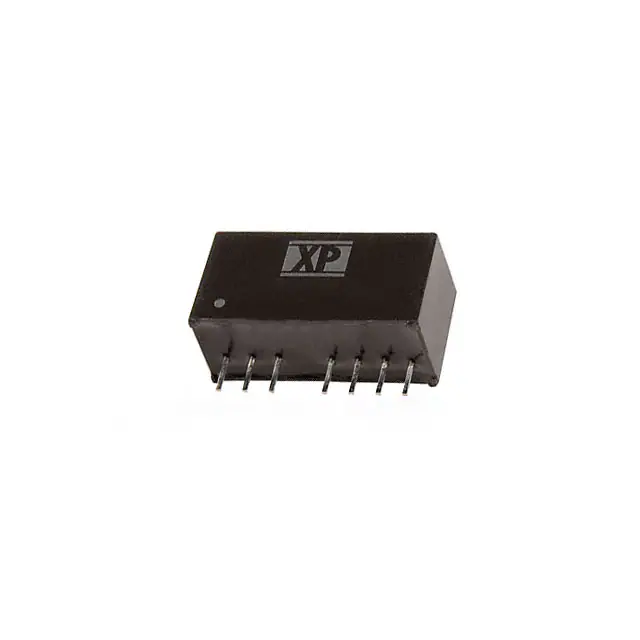

ITQ2405SADC DC CONVERTER 5V 6W |
33 |
|
Datasheet |
ITQ (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
TEL 8-1215DC DC CONVERTER 24V 8W |
98 |
|
Datasheet |
TEL 8 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 335mA | 8 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
TEN 6-2411WINDC DC CONVERTER 5V 6W |
63 |
|
Datasheet |
TEN 6WIN (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
TMR 3-2422DC DC CONVERTER +/-12V 3W |
7 |
|
Datasheet |
TMR 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|

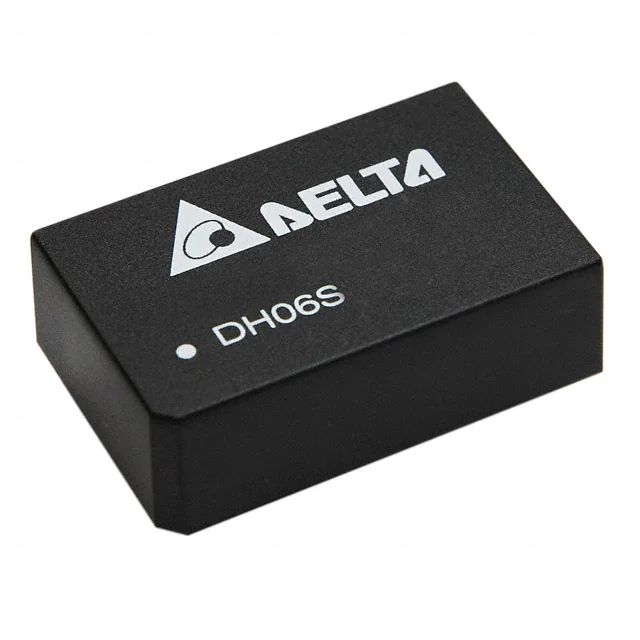

DH06D2412ADC DC CONVERTER +/-12V 6W |
69 |
|
Datasheet |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|

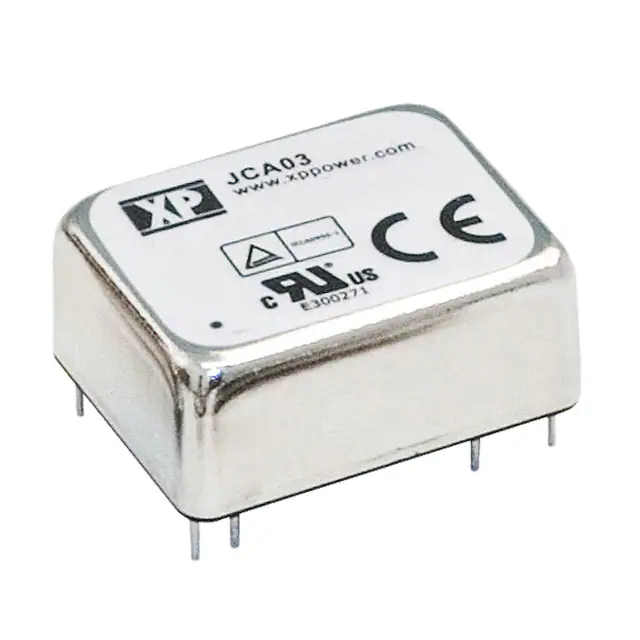

JCA0312S03DC DC CONVERTER 3.3V 3W |
33 |
|
Datasheet |
JCA (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 910mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 75% | - | - | Through Hole | - | - | - | 62368-1 | |
|

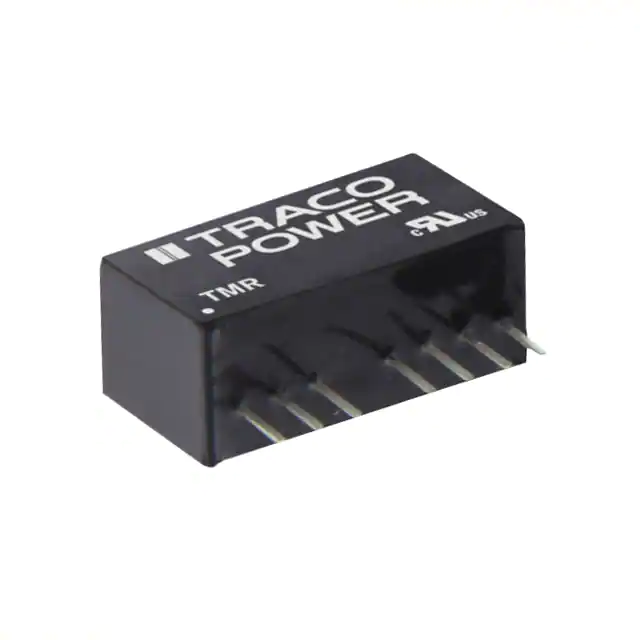

TMR 6-1211DC DC CONVERTER 5V 6W |
81 |
|
Datasheet |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 83% | - | - | Through Hole | - | - | - | - | |
|

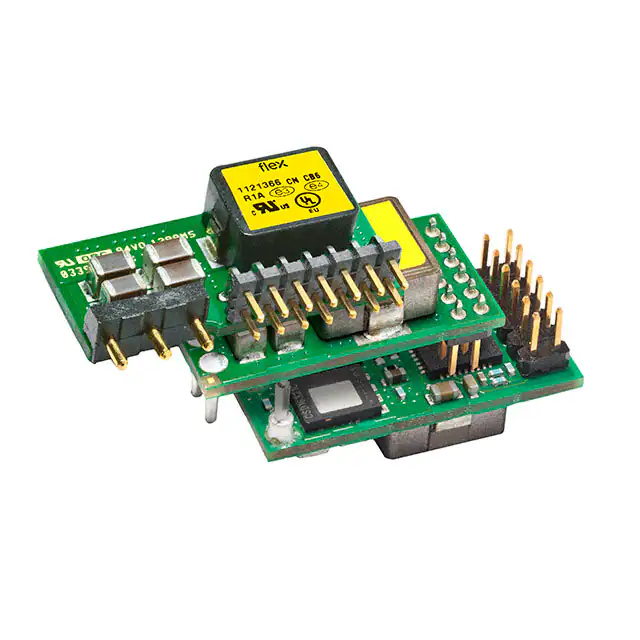

BMR4632008/001DC DC CONVERTER 0.6-3.3V 83W |
55 |
|
Datasheet |
BMR463 (82.5W) | 17-SIP Module | Tray | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14V | 0.6 ~ 3.3V | - | - | - | 25A | 83 W | - | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 95.1% | - | - | Through Hole | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
TEL 8-2411WIDC DC CONVERTER 5V 8W |
100 |
|
Datasheet |
TEL 8WI (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.6A | 8 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|

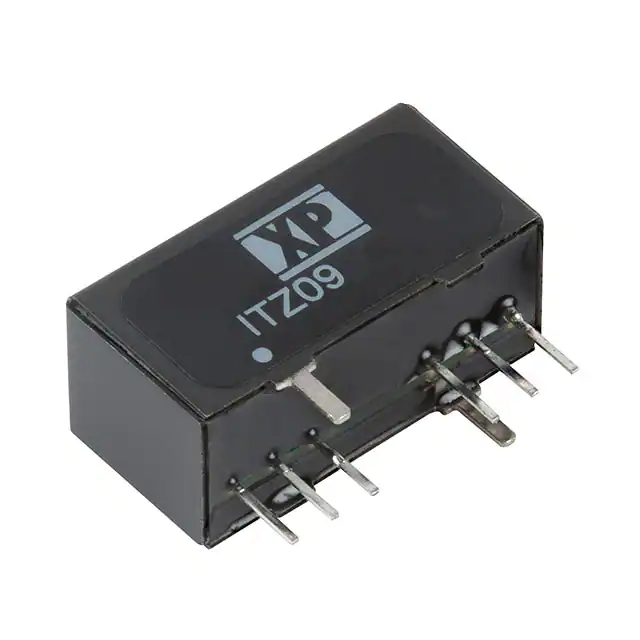

ITZ0924S05DC DC CONVERTER 5V 9W |
71 |
|
Datasheet |
ITZ (9W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.6A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 8-SIP | Enable, Active Low | - | 62368-1 |
