DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V300B28C250BLDC DC CONVERTER 28V 250W |
16 |
|
Datasheet |
MINI (250W) | Module | Tray | Active | Isolated Module | 1 | 180V | 375V | 28V | - | - | - | 8.93A | 250 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 88.5% | - | - | Surface Mount | - | - | - | - | |
|

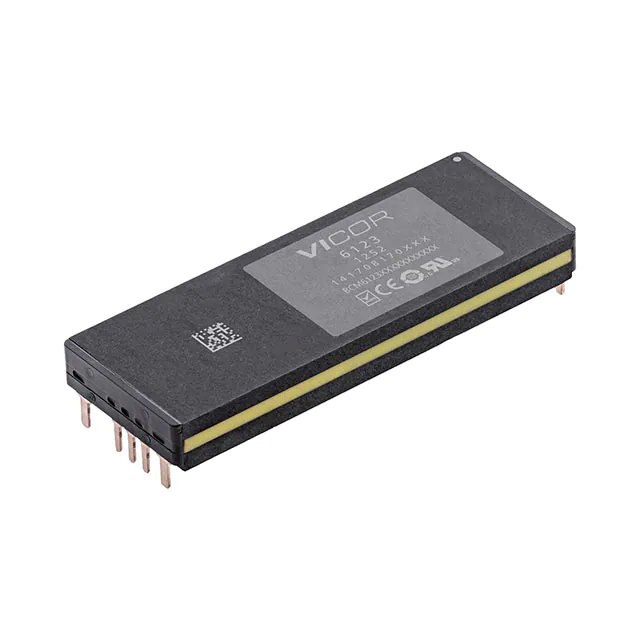

BCM380P475T1K2A30DC DC CONVERTER 47.5V 1200W |
21 |
|
Datasheet |
VI Chip® BCM® | Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 47.5V | - | - | - | 25.26A | 1200 W | 4.242 kV | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 97.9% | - | - | Through Hole | - | - | - | - | |
|

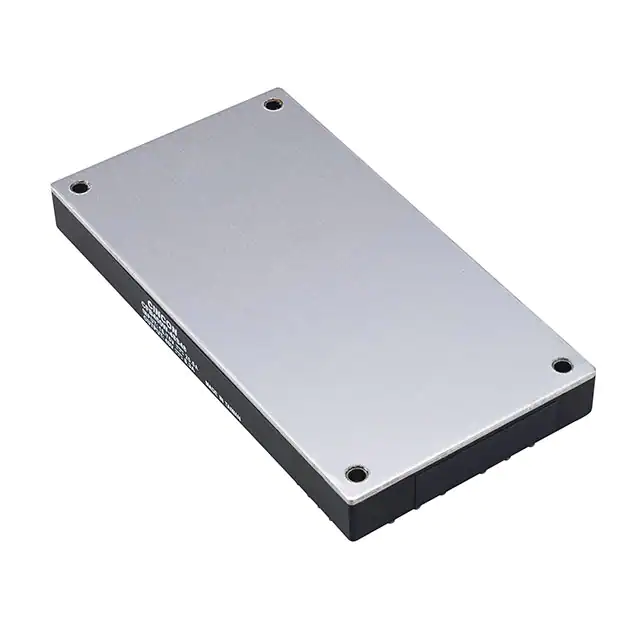

CFB400W-48S28DC DC CONVERTER 28V 400W |
23 |
|
Datasheet |
CFB400W (400W) | Full Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 28V | - | - | - | 14.3A | 400 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 | |
|
CA20P-5DC DC CONVERTER 2000V 1W |
13 |
|
Datasheet |
XP EMCO - CA (1W) | 8-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 4.75V | 5.25V | 2000V | - | - | - | 500µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|

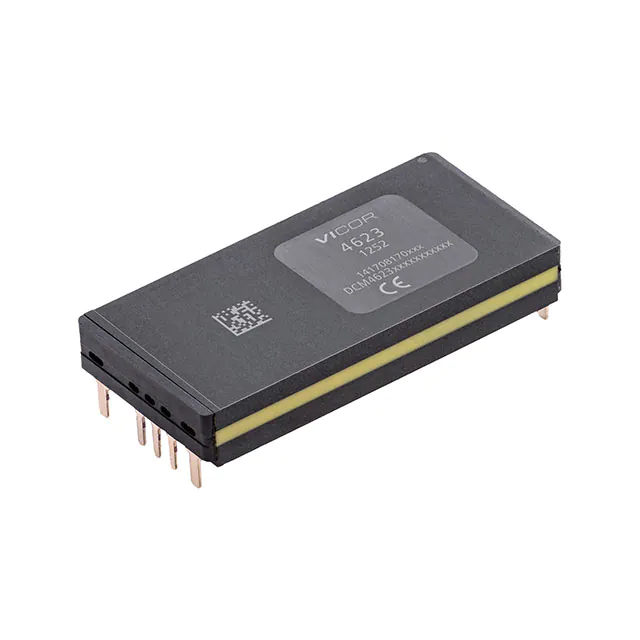

DCM290P138T600A40DC DC CONVERTER 13.8V 600W |
21 |
|
Datasheet |
VI Chip® DCM® (600W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 160V | 420V | 13.8V | - | - | - | 43.5A | 600 W | 4.242 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 93.6% | - | - | Through Hole | - | - | - | - | |
|
|
BCM6123TD1E5135T00DC DC CONVERTER 50V 1.75 KW |
14 |
|
Datasheet |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 50V | - | - | - | 35A | 1.75 kW | 4.242 kV | ITE (Commercial) | - | -40°C ~ 125°C | 98% | - | - | Through Hole | - | - | - | - | |
|
CFB600-300S24DC DC CONVERTER 24V 600W |
6 |
|
Datasheet |
CFB600-300S (600W) | Full Brick | Box | Active | Isolated Module | 1 | 180V | 425V | 24V | - | - | - | 25A | 600 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90.5% | - | - | Through Hole | Full Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
|
BCM6123TD1E5135T01DC DC CONVERTER 50V 1.75 KW |
21 |
|
Datasheet |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 50V | - | - | - | 35A | 1.75 kW | 4.242 kV | ITE (Commercial) | - | -40°C ~ 125°C | 98% | - | - | Through Hole | - | - | - | - | |
|
Q101N-5DC DC CONVERTER -10000V 500MW |
13 |
|
Datasheet |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | -10000V | - | - | - | 50µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
V24C12H50BLDC DC CONVERTER 12V 50W |
9 |
|
Datasheet |
MICRO (50W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.17A | 50 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 88.1% | - | - | Through Hole | - | - | - | - | |
|
DCM3623T75X1380M00DC DC CONVERTER 12V 80W |
24 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 75V | 12V | - | - | - | 6.7A | 80 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 90.4% | - | - | Through Hole | - | - | CE | - | |
|
C40NDC DC CONVERTER -4000V 1W |
20 |
|
Datasheet |
XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | -4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
C40DC DC CONVERTER 4000V 1W |
14 |
|
Datasheet |
XP EMCO - C (1W) | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 16V | 4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | SCP | -10°C ~ 60°C | - | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
BCM6123TD1E5135T0RDC DC CONVERTER 50V 1.75 KW |
23 |
|
Datasheet |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 50V | - | - | - | 35A | 1.75 kW | 4.242 kV | ITE (Commercial) | - | -40°C ~ 125°C | 98% | - | - | Through Hole | - | - | - | - | |
|
|
BCM400P500T1K8A31DC DC CONVERTER 47.5V 1.8KW |
15 |
|
Datasheet |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 47.5V | - | - | - | 37.9A | 1.8 kW | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Through Hole | - | - | - | - | |
|
|
DCM4623TD2K26E0T70DC DC CONVERTER 24V 500W |
3 |
|
Datasheet |
VI Chip® DCM® (500W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 160V | 420V | 24V | - | - | - | 20.84A | 500 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.7% | - | - | Through Hole | - | - | - | - | |
|
V28A24T200BGDC DC CONVERTER 24V 200W |
12 |
|
Datasheet |
Maxi (200W) | Full Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 8.33A | 200 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 86% | - | - | Through Hole | - | - | - | - | |
|
UMHV0550DC DC CONVERTER 5000V 500MW |
16 |
|
Datasheet |
UMHV | 5-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 4.5V | 5.5V | 5000V | - | - | - | 100µA | 500 mW | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 55% | - | - | Through Hole | - | - | - | - | |
|
|
DCM3623T50T0680M70DC DC CONVERTER 5V 80W |
22 |
|
Datasheet |
VI Chip® DCM® (80W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 5V | - | - | - | 16A | 80 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -55°C ~ 125°C | 88.1% | - | - | Through Hole | - | - | - | - | |
|
|
V24C12H100BLDC DC CONVERTER 12V 100W |
2 |
|
Datasheet |
MICRO (100W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 8.3A | 100 W | 3 kV | Medical | OCP, OVP, SCP | -40°C ~ 100°C | 85.8% | - | - | Through Hole | - | - | - | - |
