DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

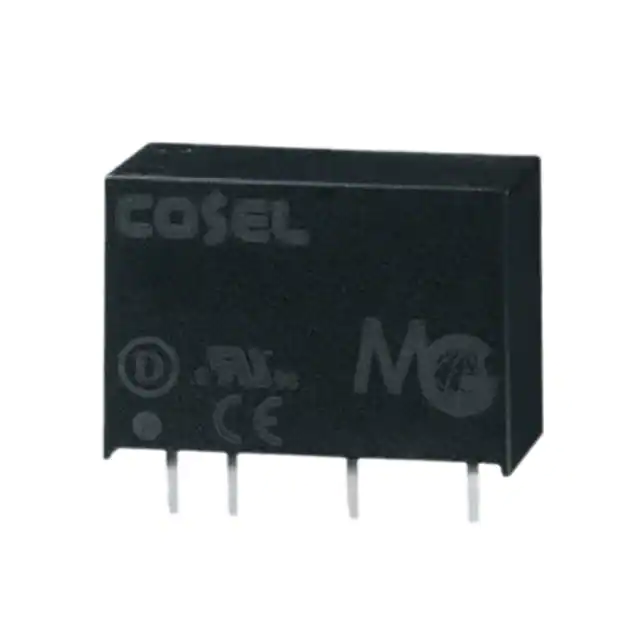

MGFS32405DC DC CONVERTER 5V 3W |
11 |
|
Datasheet |
MGFS (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
TEC 3-0915DC DC CONVERTER 24V 3W |
96 |
|
Datasheet |
TEC 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 24V | - | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
DCP020509PDC DC CONVERTER 9V 2W |
71 |
|
Datasheet |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 82% | - | - | Through Hole | 7-PDIP | - | - | - | |
|

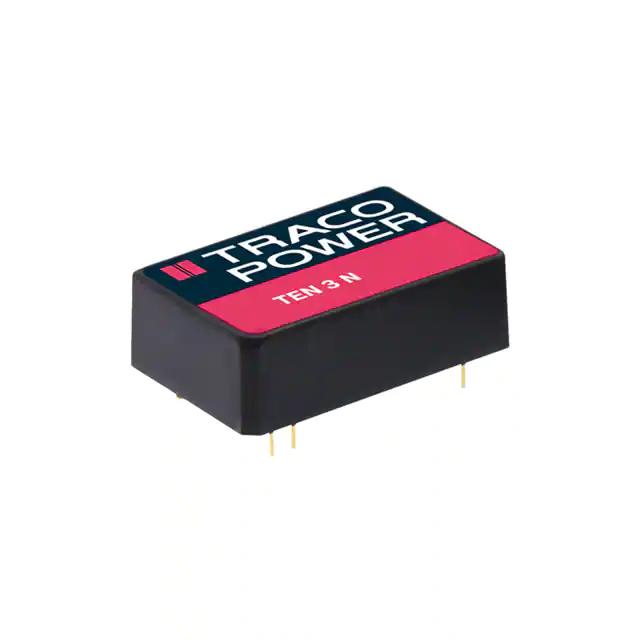

TEN 3-1222NDC DC CONVERTER +/-12V 3W |
55 |
|
Datasheet |
TEN 3N (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CB, cCSAus | - | |
|
TEN 3-2423NDC DC CONVERTER +/-15V 3W |
82 |
|
Datasheet |
TEN 3N (3W) | 23-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CB, cCSAus | - | |
|
TEL 2-2421DC DC CONVERTER +/-5V 2W |
57 |
|
Datasheet |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 74% | - | - | Through Hole | - | - | - | - | |
|
|
TEL 2-2423DC DC CONVERTER +/-15V 2W |
50 |
|
Datasheet |
TEL 2 (2W) | 16-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 80% | - | - | Through Hole | - | - | - | - | |
|

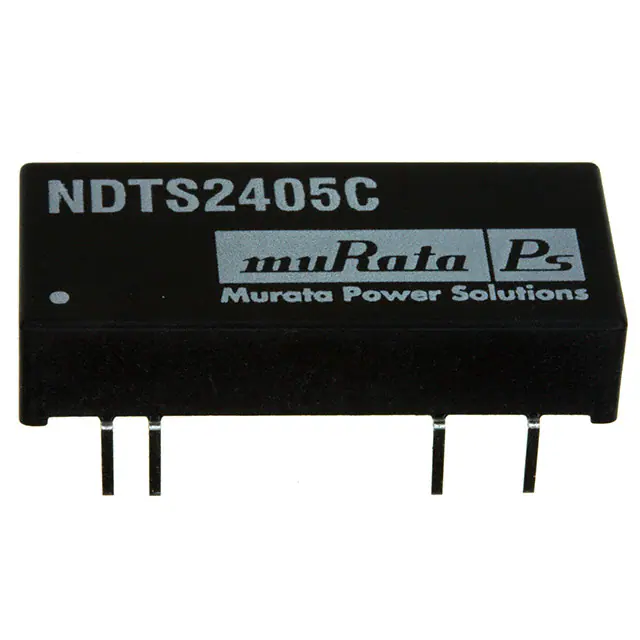

NDTS2405CDC DC CONVERTER 5V 3W |
89 |
|
Datasheet |
NDTS (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|
DH06S1224ADC DC CONVERTER 24V 6W |
31 |
|
Datasheet |
DH06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|

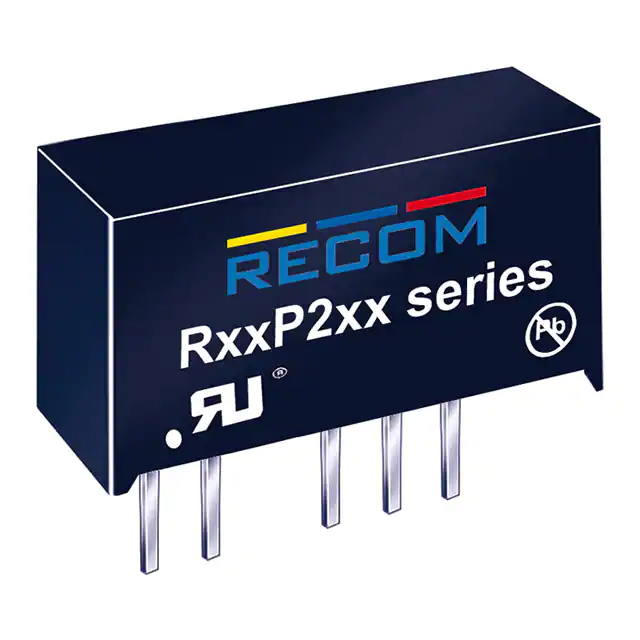

R24P212D/PDC DC CONVERTER +/-12V 2W |
44 |
|
Datasheet |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | - | - | |
|

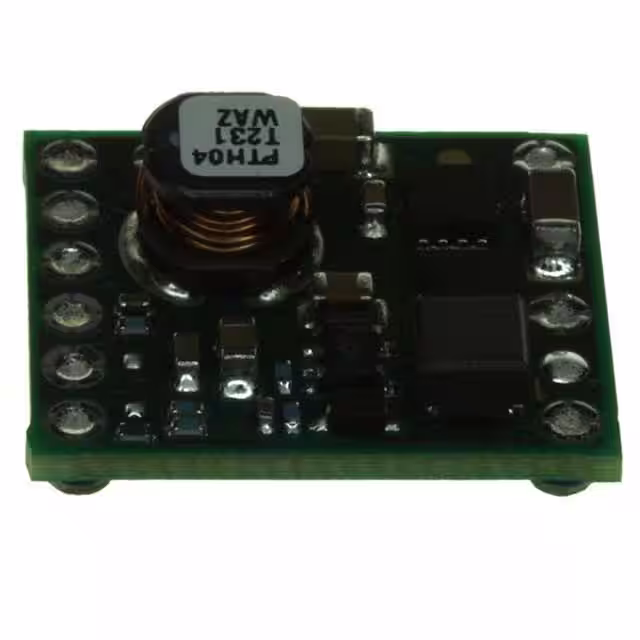

PTH04T231WAZDC DC CONVERTER 0.69-3.6V |
35 |
|
Datasheet |
PTH04T231W | 10-SMD Module | Bulk | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | - | - | - | - | |
|

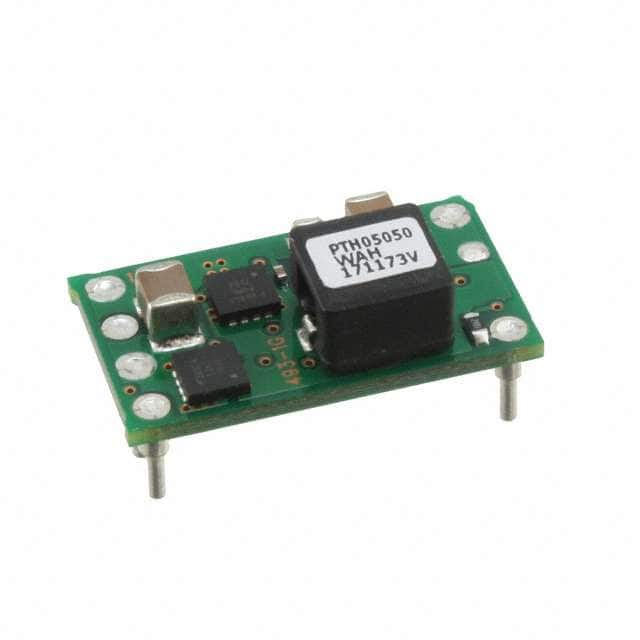

PTH05050WADDC DC CONVERTER 0.8-3.6V 6A |
30 |
|
Datasheet |
PTH05050W | 6-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - | |
|

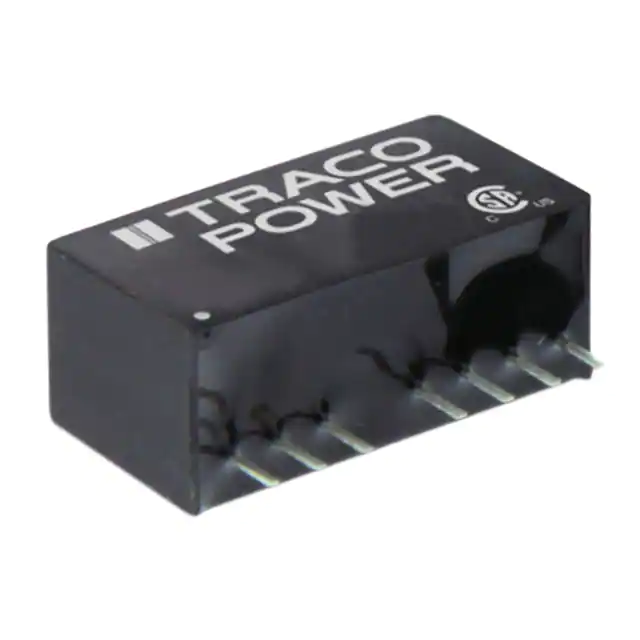

TMR 0521DC DC CONVERTER +/-5V 2W |
69 |
|
Datasheet |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | Module | - | - | - | |
|
EC4AB11DC DC CONVERTER 5V 5W |
40 |
|
Datasheet |
EC4AB (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 79% | - | - | Through Hole | - | - | - | - | |
|

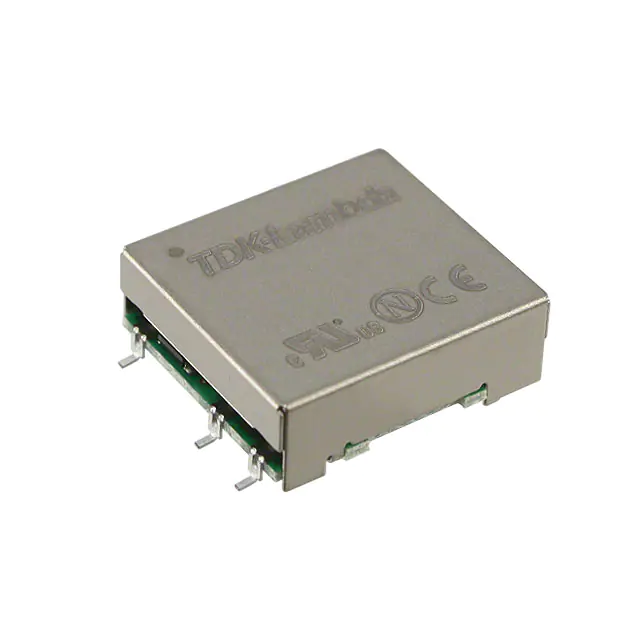

CC6-1205SR-EDC DC CONVERTER 5V 6W |
95 |
|
Datasheet |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | - | Enable, Active Low | - | - | |
|
TDN 1-2412WIDC DC CONVERTER 12V 1.1W |
60 |
|
Datasheet |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 90mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 81% | - | - | Through Hole | - | - | - | - | |
|
TMR 4-24114 WATT DC/DC CONVERTER, INDUSTRI |
20 |
|
Datasheet |
TMR 4 (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 800mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | CB, cURus, UL | - | |
|

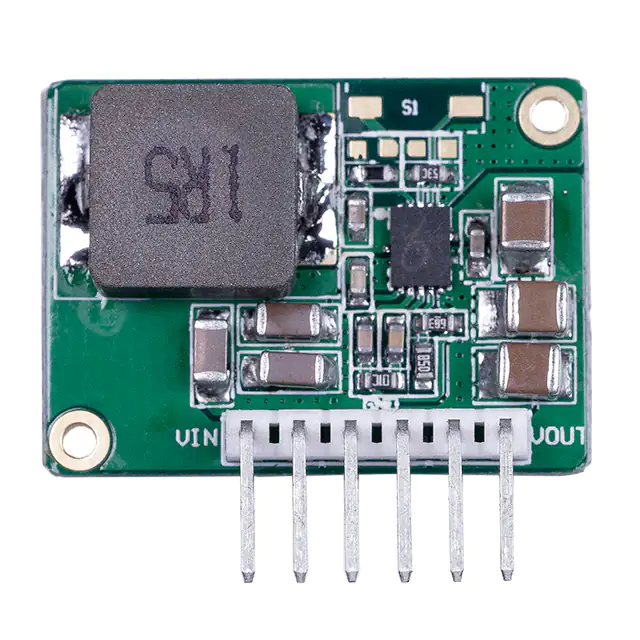

MEZD41502A-BDC DC CONVERTER 12V |
52 |
|
Datasheet |
- | 6-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 10V | 12V | - | - | - | 2A | - | - | ITE (Commercial) | OTP | 0°C ~ 85°C | 97.4% | - | - | Through Hole | - | - | - | - | |
|

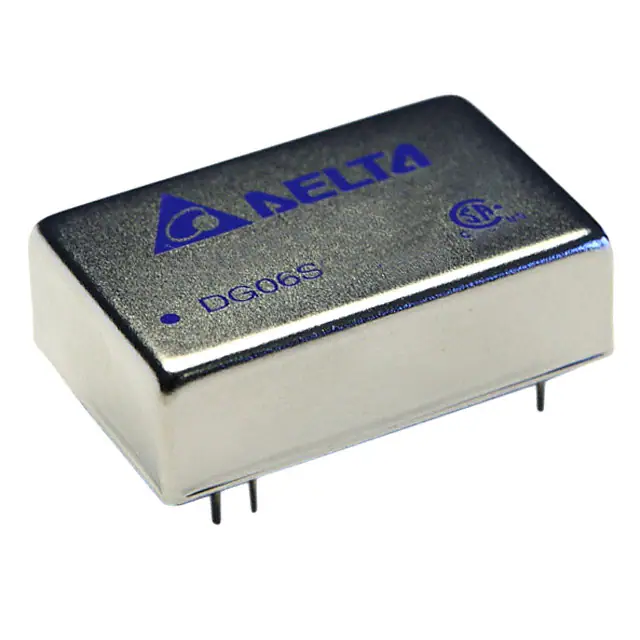

DG06D1215ADC DC CONVERTER +/-15V 6W |
38 |
|
Datasheet |
DG06S/D (6W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | Medical | OCP, SCP, UVLO | -40°C ~ 71°C | 84% | - | - | Through Hole | - | - | - | - | |
|
TMR 3-4811WIEDC DC CONVERTER 5V 3W |
24 |
|
Datasheet |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - |
