DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMM0505S05DC DC CONVERTER 5V 5W |
69 |
|
Datasheet |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - | |
|
|
IMM0524S05DC DC CONVERTER 5V 5W |
66 |
|
Datasheet |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - | |
|
RW2-0505S/SMDDC DC CONVERTER 5V 2W |
49 |
|
Datasheet |
ECONOLINE RW2 (2W) | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 73% | - | - | Surface Mount | - | - | - | - | |
|
|
IMM0512S15DC DC CONVERTER 15V 5W |
25 |
|
Datasheet |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 333mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - | |
|

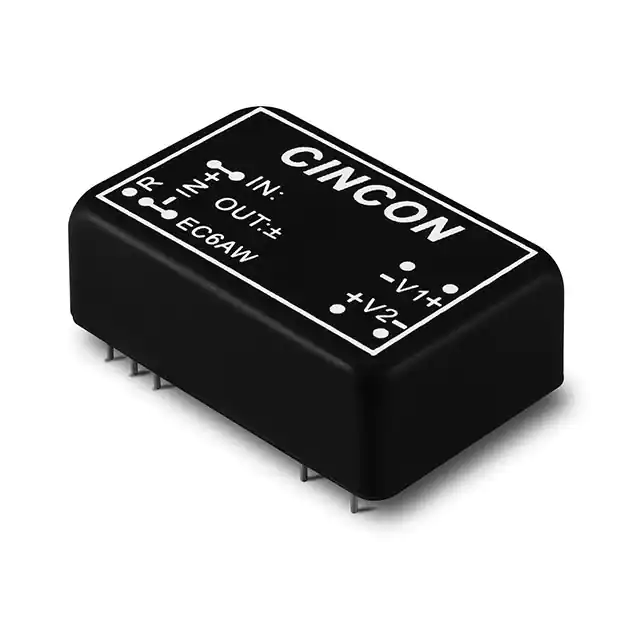

EC6AW-24S33DC DC CONVERTER 3.3V 6.6W |
17 |
|
Datasheet |
EC6AW (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2A | 6.6 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | Enable, Active High | CE | 50155; 60950-1 | |
|
|
EC6AW-48S33DC DC CONVERTER 3.3V 6.6W |
14 |
|
Datasheet |
EC6AW (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2A | 6.6 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | Enable, Active High | CE | 50155; 60950-1 | |
|
|
IMM0505S3V3DC DC CONVERTER 3.3V 4W |
10 |
|
Datasheet |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - | |
|
|
IMM0512S3V3DC DC CONVERTER 3.3V 4W |
8 |
|
Datasheet |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - | |
|
|
IMM0505S12DC DC CONVERTER 12V 5W |
6 |
|
Datasheet |
IMM05 (5W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 416mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP | -20°C ~ 100°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CSA, TUV, UL | - | |
|
RSO-1212DDC DC CONVERTER +/-12V 1W |
5 |
|
Datasheet |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 79% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
RS3-0512S/H3DC DC CONVERTER 12V 3W |
56 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
RS3-053.3S/H3DC DC CONVERTER 3.3V 3W |
22 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 75% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
RS3-483.3S/H2DC DC CONVERTER 3.3V 3W |
22 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 3.3V | - | - | - | 600mA | 3 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 78% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
RS3-1212S/H3DC DC CONVERTER 12V 3W |
22 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
R1M-1205S/SMD1W DC/DC-CONVERTER 'ECONOLINE' S |
50 |
|
Datasheet |
R1M (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - | |
|
TMR 2-2423WIDC DC CONVERTER +/-15V 2W |
89 |
|
Datasheet |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
TMR 2-4823WIDC DC CONVERTER +/-15V 2W |
15 |
|
Datasheet |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 65mA, 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | - | - | - | - | |
|
SCW12C-05DC DC CONVERTER 5V 12W |
35 |
|
Datasheet |
SCW12 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 71°C (With Derating) | 84% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
DCW12A-15DC DC CONVERTER +/-15V 12W |
31 |
|
Datasheet |
DCW12 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 71°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
REC3-243.3SRW/H2/ADC DC CONVERTER 3.3V 3W |
25 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 900mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - |
