DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

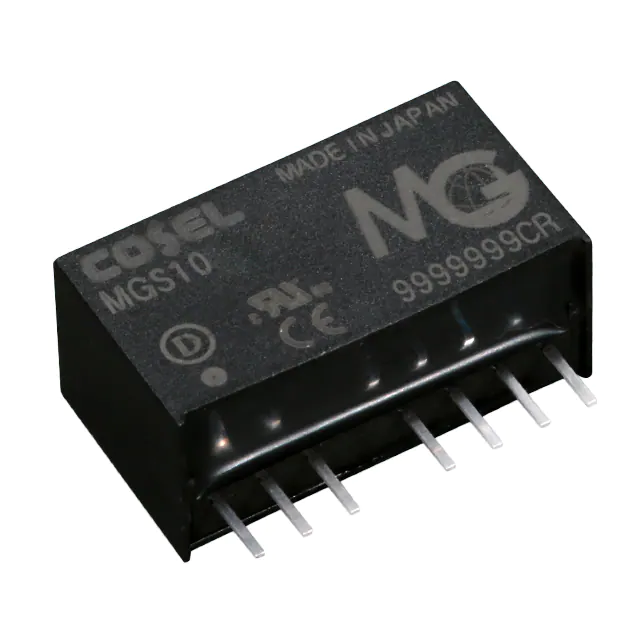

MGS10123R3DC DC CONVERTER 3.3V |
13 |
|
Datasheet |
MGS (10W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 2.6A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|

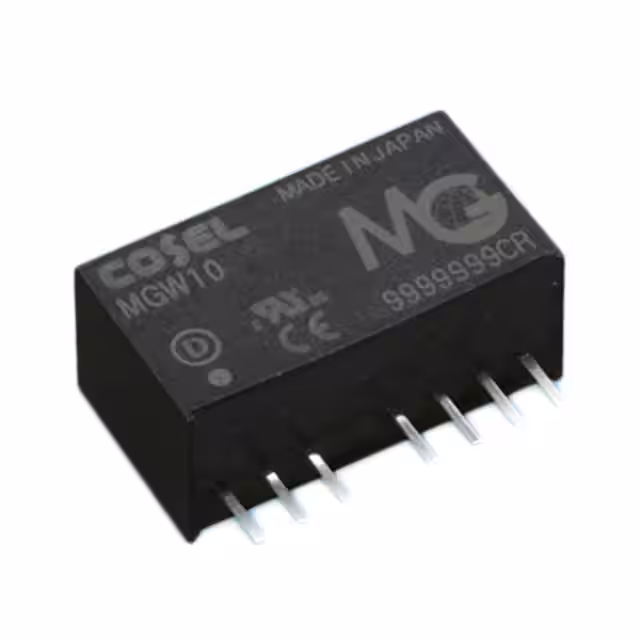

MGW101212DC DC CONVERTER +/-12V |
11 |
|
Datasheet |
MGW (10W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 420mA, 420mA | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | |
|
|
MGS10243R3DC DC CONVERTER 3.3V |
9 |
|
Datasheet |
MGS (10W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 2.6A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
TIM 2-0910DC DC CONVERTER 3.3V 1.7W |
21 |
|
Datasheet |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 3.3V | - | - | - | 500mA | 1.7 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 74% | - | - | Through Hole | - | - | - | - | |
|
REC5-2412DRWZ/H2/ADC DC CONVERTER +/-12V 5W |
50 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 210mA, 210mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 83% | - | - | Through Hole | - | - | - | - | |
|
|
REC5-4805SRWZ/H2/A/MDC DC CONVERTER 5V 5W |
25 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 1A | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 82% | - | - | Through Hole | - | - | - | - | |
|

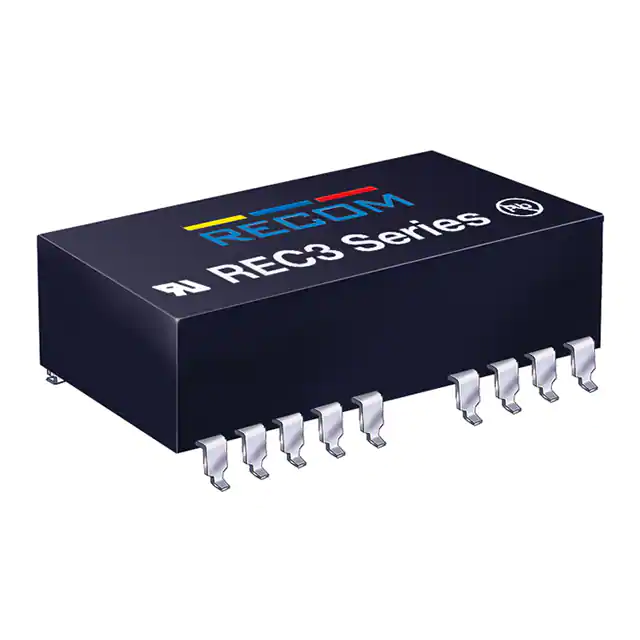

REC3-2415DRWZ/H2/A/M/SMDDC DC CONVERTER +/-15V 3W |
15 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-SMD Module, 18 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Surface Mount | - | - | - | - | |
|

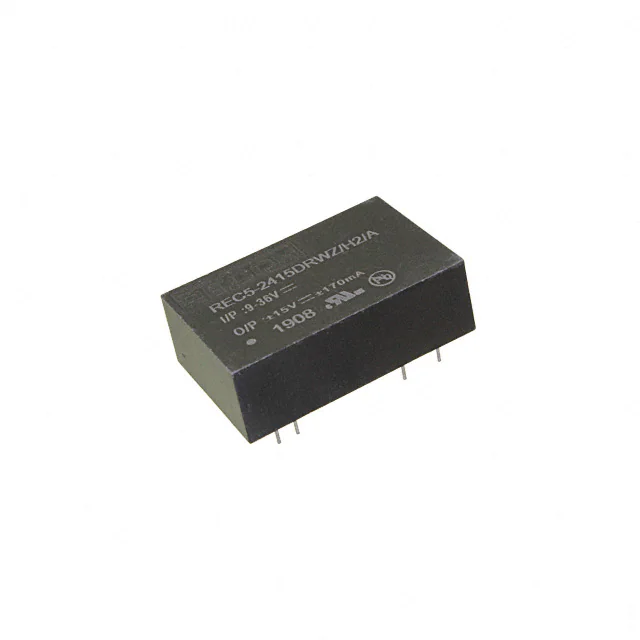

REC5-2415DRWZ/H2/ADC DC CONVERTER +/-15V 5W |
14 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 170mA, 170mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | - | - | - | - | |
|
TMR 3-2422WIRDC DC CONVERTER +/-12V 3W |
19 |
|
Datasheet |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|

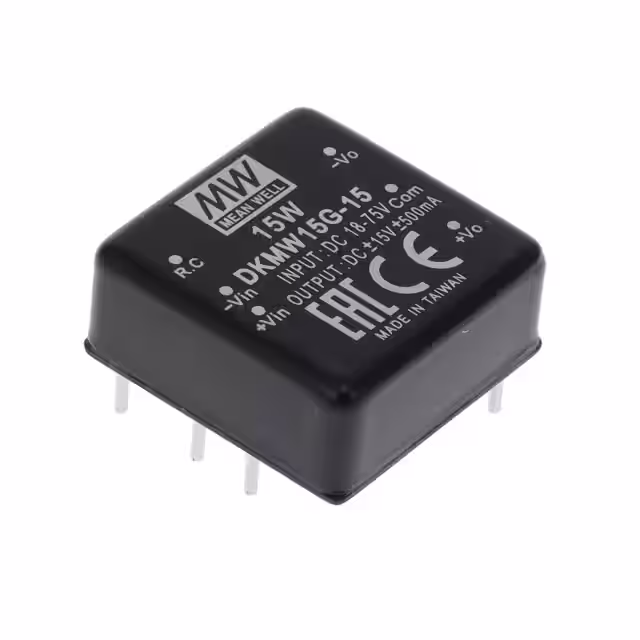

DKMW15G-15DC DC CONVERTER +/-15V 15W |
9 |
|
Datasheet |
DKMW15 (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | CE, EAC | - | |
|
JTC0424D12DC DC CONVERTER +/-12V 4W |
22 |
|
Datasheet |
JTC (4W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 167mA | 4 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | - | - | - | |
|

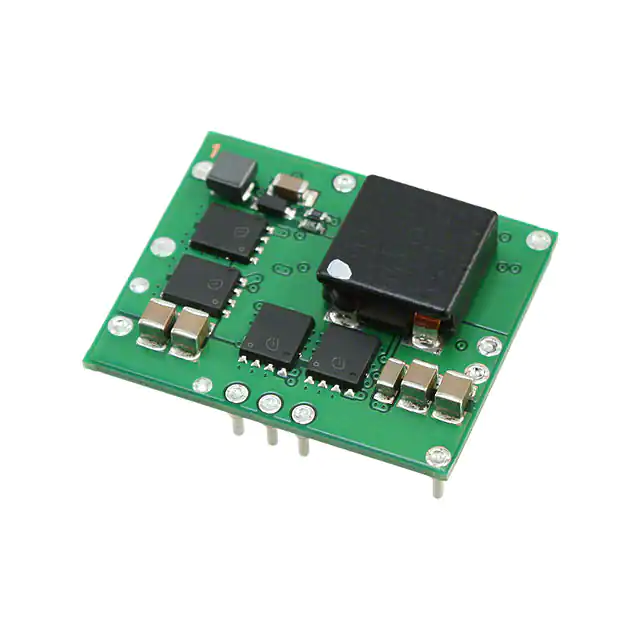

PTH05030WAHDC DC CONVERTER 0.8-3.6V 30A |
18 |
|
Datasheet |
PTH05030W | 13-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 30A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - | |
|
TDN 5-2421WIDC DC CONVERTER +/-5V 5W |
74 |
|
Datasheet |
TDN 5WI (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
TDN 5-2422WIDC DC CONVERTER +/-12V 5W |
13 |
|
Datasheet |
TDN 5WI (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 210mA, 210mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 83% | - | - | Through Hole | - | - | - | - | |
|

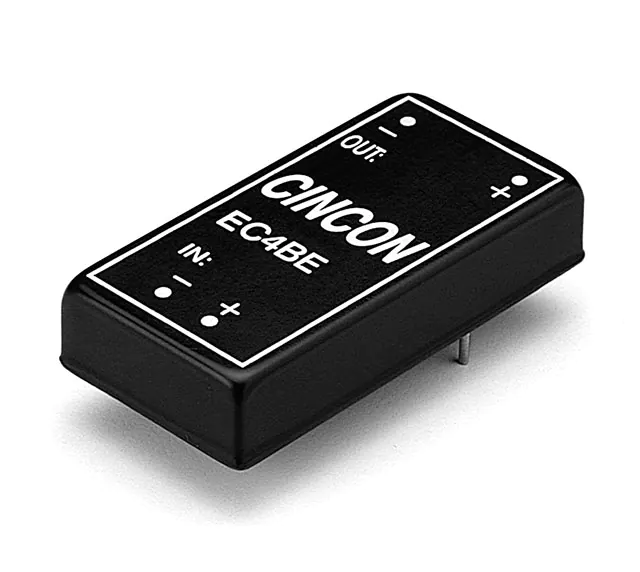

EC4BE12DC DC CONVERTER 12V 10W |
12 |
|
Datasheet |
EC4BE (10W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 830mA | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
EC4BE11DC DC CONVERTER 5V 10W |
8 |
|
Datasheet |
EC4BE (10W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
THR 3-7211WI3 WATT DC/DC CONVERTER, INDUSTRI |
10 |
|
Datasheet |
THR 3WI (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 40V | 160V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 92°C (With Derating) | 80% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|
TIM 2-0915DC DC CONVERTER 24V 2W |
50 |
|
Datasheet |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 24V | - | - | - | 83mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
RS3-4805SZ/H3DC DC CONVERTER 5V 3W |
44 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 20V | 60V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 78% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
VAWQ3-Q24-D5HDC DC CONVERTER +/-5V 3W |
20 |
|
Datasheet |
VAWQ3 (3W) | 24-DIP Module, 15 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 70% | - | - | Through Hole | - | - | - | - |
