DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S24SE150R9NDFADC DC CONVERTER 15V 15W |
99 |
|
Datasheet |
S24SE (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
RSO-1215SZ/H3DC DC CONVERTER 15V 1W |
35 |
|
Datasheet |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 78 ~ 83% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
MGDTK10HCEDC DC CONVERTER |
12 |
|
Datasheet |
MGDK10 (10W) | 8-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 3 | 9V | 36V | 5V | 12V | -12V | - | 1A, 200mA, 200mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 95°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TDN 3-1211WIDC DC CONVERTER 5V 3W |
19 |
|
Datasheet |
TDN 3WI (3W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 80% | - | - | Through Hole | - | - | - | - | |
|

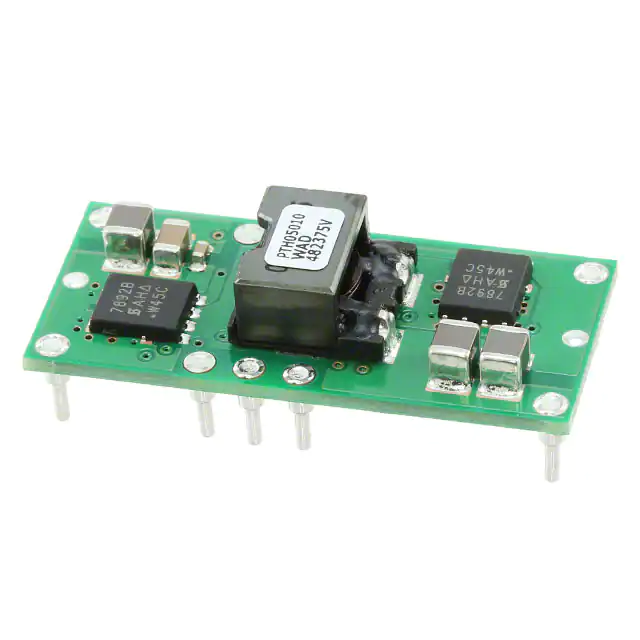

PTH05010WADDC DC CONVERTER 0.8-3.6V 5V 15A |
43 |
|
Datasheet |
PTH05010W | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 15A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - | |
|
TMR 6-4813DC DC CONVERTER 15V 6W |
28 |
|
Datasheet |
TMR 6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 400mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 65°C | 87% | - | - | Through Hole | - | - | - | - | |
|
TDN 3-1215WIDC DC CONVERTER 24V 3W |
55 |
|
Datasheet |
TDN 3WI (3W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 24V | - | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 82% | - | - | Through Hole | - | - | - | - | |
|
R2M-2412D/SMD2W DC/DC-CONVERTER 'ECONOLINE' S |
36 |
|
Datasheet |
R2M (2W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 83mA, 83mA | 1.992 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | - | - | |
|
EC6AW-110D05DC DC CONVERTER +/-5V 10W |
37 |
|
Datasheet |
EC6AW-110 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 43V | 160V | 5V | -5V | - | - | 1A, 1A | 10 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | Enable, Active High | CE, cURus | 50155; 60950-1 | |
|
ITQ2405SDC DC CONVERTER +/-5V 6W |
21 |
|
Datasheet |
ITQ (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 | |
|
R05P23.3D/R8DC DC CONVERTER +/-3.3V 2W |
19 |
|
Datasheet |
ECONOLINE RxxP2xx/R (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 300mA, 300mA | 2 W | 8 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
TDN 3-1223WIDC DC CONVERTER +/-15V 3W |
29 |
|
Datasheet |
TDN 3WI (3W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 70°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
R2M-243.3S/SMD2W DC/DC-CONVERTER 'ECONOLINE' S |
22 |
|
Datasheet |
R2M (2W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 500mA | 1.65 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 78% | - | - | Surface Mount | - | - | - | - | |
.jpg)
|
MGFW64812DC DC CONVERTER +/-12V 6W |
18 |
|
Datasheet |
MGFW (6W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - | |
|
ATA02B18-LDC DC CONVERTER 12V 8W |
72 |
|
Datasheet |
ATA (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 665mA | 8 W | 1.5 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
.jpg)
|
RS3-2412DZDC DC CONVERTER +/-12V 3W |
8 |
|
Datasheet |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 27V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
REC5-2415SRW/H2/ADC DC CONVERTER 15V 5W |
28 |
|
Datasheet |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 340mA | 5 W | 2 kV | ITE (Commercial) | SCP | -40°C ~ 75°C | 86% | - | - | Through Hole | - | - | - | - | |
|
|
RSO-0505D/H3DC DC CONVERTER +/-5V 1W |
27 |
|
Datasheet |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
DKA15B-15DC DC CONVERTER +/-15V 15W |
29 |
|
Datasheet |
DKA15 (15W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 71°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
|
DKA15A-05DC DC CONVERTER +/-5V 15W |
8 |
|
Datasheet |
DKA15 (15W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 71°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - |
