DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SUS10053R3CDC DC CONVERTER 3.3V 8.6W |
11 |
|
Datasheet |
SUS (10W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 2.6A | 8.6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - | |
|
TIM 2-4810SMDC DC CONVERTER 3.3V 1.7W |
7 |
|
Datasheet |
TIM 2SM (2W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 500mA | 1.7 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 75% | - | - | Surface Mount | - | - | - | - | |
|
TEL 15-2422WIN-HSULTRA COMPACT 15 WATT CONVERTER |
6 |
|
Datasheet |
TEL 15WIN-HS (15W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 70°C | 87% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|
THI 1221DC DC CONVERTER +/-12V 1.9W |
6 |
|
Datasheet |
THI 2 (2W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 80mA, 80mA | 1.9 W | 2.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 59% | - | - | Through Hole | - | - | - | - | |
|
SUCW104812CDC DC CONVERTER +/-12V |
16 |
|
Datasheet |
SUCW (10W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 36V | 76V | 12V | -12V | - | - | 450mA, 450mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
SUCS101205BDC DC CONVERTER 5V 10W |
10 |
|
Datasheet |
SUCS (10W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Surface Mount | - | - | - | - | |
|
THN 15-1213NDC DC CONVERTER 15V 15W |
11 |
|
Datasheet |
THN 15N (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|
AVD50B-48S3V3-6LDC DC CONVERTER 3.3V 50W |
10 |
|
Datasheet |
AVD50 (50W) | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 15A | 50 W | - | ITE (Commercial) | Remote On/Off | - | 91% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
TEL 15-4822WIN-HSULTRA COMPACT 15 WATT CONVERTER |
10 |
|
Datasheet |
TEL 15WIN-HS (15W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 70°C | 87% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|

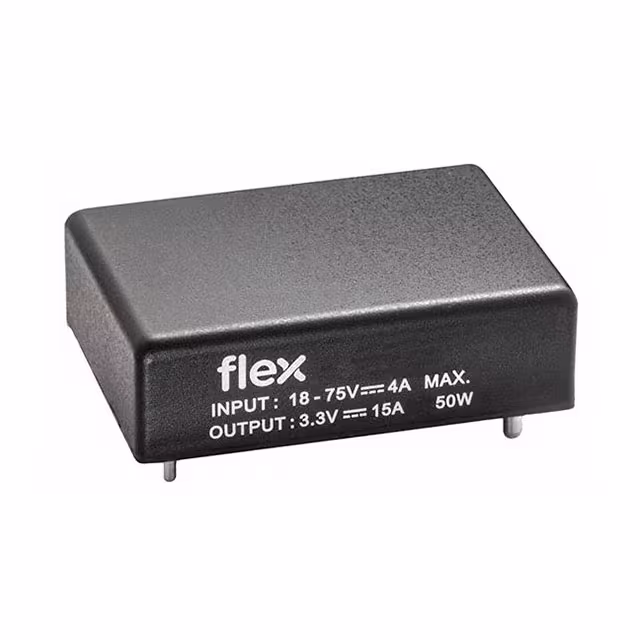

PKU5510SPIDC DC CONVERTER 3.3V 50W |
69 |
|
Datasheet |
PKU 5500S (50W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
|
MDS20C-15DC DC CONVERTER 15V 20W |
20 |
|
Datasheet |
MDS20 (20W) | 5-DIP Module | Bulk | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 1.333A | 20 W | 4 kV | Medical | - | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | - | - | CE, EAC | - | |
|
REC8-0505SRW/H3/A/MDC DC CONVERTER 5V 8W |
14 |
|
Datasheet |
ECONOLINE REC8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1.6A | 8 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 71°C | 87% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
BY05-12S12LDC DC CONVERTER 12V 1.4W |
28 |
|
Datasheet |
BY-L (1.5W) | 24-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 4.75V | 6V | 12V | - | - | - | 120mA | 1.4 W | 500 V | ITE (Commercial) | - | -25°C ~ 71°C (With Derating) | 60% | - | - | Through Hole | - | - | - | - | |
|
TVN 3-4821DC DC CONVERTER +/-5V 3W |
19 |
|
Datasheet |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
|
TVN 3-0922DC DC CONVERTER +/-12V 3W |
11 |
|
Datasheet |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
EC7B-48S12SDC DC CONVERTER 12V 20W |
15 |
|
Datasheet |
EC7B (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active High | CE, cURus | 60950-1 | |
|
TIM 3.5-4811SMDC DC CONVERTER 5V 3.5W |
20 |
|
Datasheet |
TIM 3.5SM (3.5W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 700mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - | |
|
TIM 3.5-4815SMDC DC CONVERTER 24V 3.5W |
10 |
|
Datasheet |
TIM 3.5SM (3.5W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 146mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Surface Mount | - | - | - | - | |
|

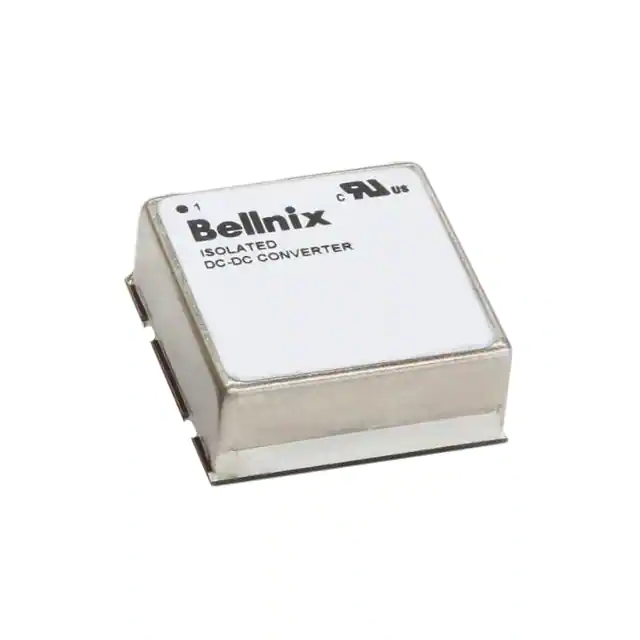

BTJ24-12S250DDC DC CONVERTER 12V 30W |
48 |
|
Datasheet |
BTJ (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
REC8-0515DRW/H2/A/MDC DC CONVERTER +/-15V 8W |
11 |
|
Datasheet |
ECONOLINE REC8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 267mA, 267mA | 8 W | 2 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 71°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - |
