DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SK1240DC DC CONVERTER 4000V 1W |
10 |
|
Datasheet |
SK | 5-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 13.2V | 4000V | - | - | - | 250µA | 1 W | - | ITE (Commercial) | - | -40°C ~ 60°C | 60% | - | - | Through Hole | - | - | - | - | |
|
PYH200-72WS12DC DC CONVERTER 12V 200W |
10 |
|
Datasheet |
PYH200 (200W) | Half Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 16.7A | 200 W | 4.2 kV | ITE (Commercial), Railway | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | Half Brick | Enable, Active High | CE, UKCA | 62368-1 | |
|
MVTM36BF360M003A00DC DC CONVERTER 36V 150W |
12 |
|
Datasheet |
MVTM36 (150W) | Module | Bulk | Active | Voltage Transformation Module | 1 | 26V | 50V | 36V | - | - | - | 3A | 150 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP | -55°C ~ 125°C | 96% | - | - | Surface Mount | - | - | - | - | |
|

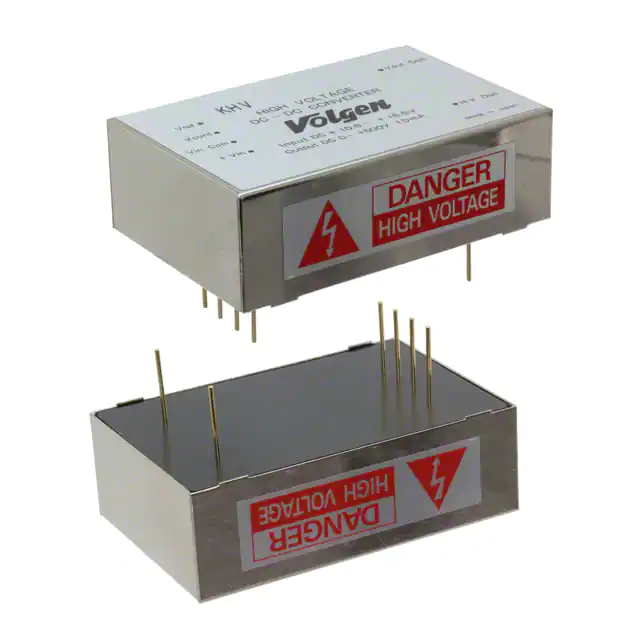

KHV12-1.0K5000P5W 10V INP 10V O/P HI VOLT DC/DC |
2 |
|
Datasheet |
KHV (5W) | 7-DIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | 1000V | - | - | - | 5mA | 5 W | - | ITE (Commercial) | OCP | -10°C ~ 50°C | - | - | - | Through Hole | - | - | - | - | |
|
RPA100H-11024SRUW/PDC DC CONVERTER 24V 100W |
5 |
|
Datasheet |
RPA100H (100W) | 10-DIP Module | Tube | Active | Isolated Module | 1 | 16.8V | 137.5V | 24V | - | - | - | 4.2A | 100 W | 4.2 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 97°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | - | - | |
|

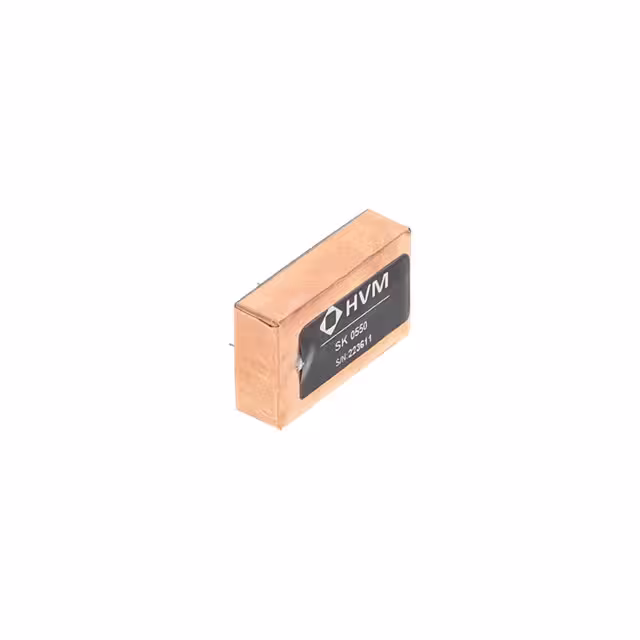

SK0550MINIATURE REGULATED HV DC-DC CON |
3 |
|
Datasheet |
SK | 5-DIP Module | Box | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 5.5V | 0 ~ 5000V | - | - | - | 200µA | 1 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 60°C | 60% | - | - | Through Hole | - | - | - | - | |
|
|
UMHVP-0540NHV DC-DC CONVERTER, 5V IN, -4KV |
5 |
|
Datasheet |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 5V | -4000V | - | - | - | 125µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | - | - | - | - | |
|
BCM380P475T1K2A3RDC DC CONVERTER 47.5V 1200W |
3 |
|
Datasheet |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 47.5V | - | - | - | 25.7A | 1200 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.9% | - | - | Through Hole | - | - | - | - | |
|
|
UMHVP-1240NHV DC-DC CONVERTER, 12V IN, -4KV |
5 |
|
Datasheet |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 12V | -4000V | - | - | - | 125µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
UMHVP-1240HV DC-DC CONVERTER, 12V IN, +4KV |
4 |
|
Datasheet |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 12V | 4000V | - | - | - | 125µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | - | - | - | - | |
|
DCM2322T50T2660M60DC DC CONVERTER 24V 60W |
20 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 24V | - | - | - | 2.5A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output | -55°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|
CHVM2-12-1000NWDC DC CONVERTER -1000V 2W |
8 |
|
Datasheet |
CHVM (3W) | 7-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 10.8V | 16.5V | -1000V | - | - | - | 2mA | 2 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | - | Enable, Active Low | CE, CSA, UL | 62368-1 | |
|
0.3US12-P0.1DC DC CONVERTER 300V |
4 |
|
Datasheet |
ULTRAVOLT® US | 12-DIP Module, 7 Leads | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11.5V | 12.5V | 300V | - | - | - | 330µA | - | - | ITE (Commercial) | - | -10°C ~ 65°C | - | - | - | Through Hole | - | Enable, Active High | CE, cURus | - | |
|
0.6V12-N0.5DC DC CONVERTER 600V 500MW |
4 |
|
Datasheet |
UltraVolt® V | 9-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 600V | - | - | - | 830µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -10°C ~ 65°C | - | - | - | Through Hole | - | Enable, Active Low | CE, cUL, cURus, UL | - | |
|

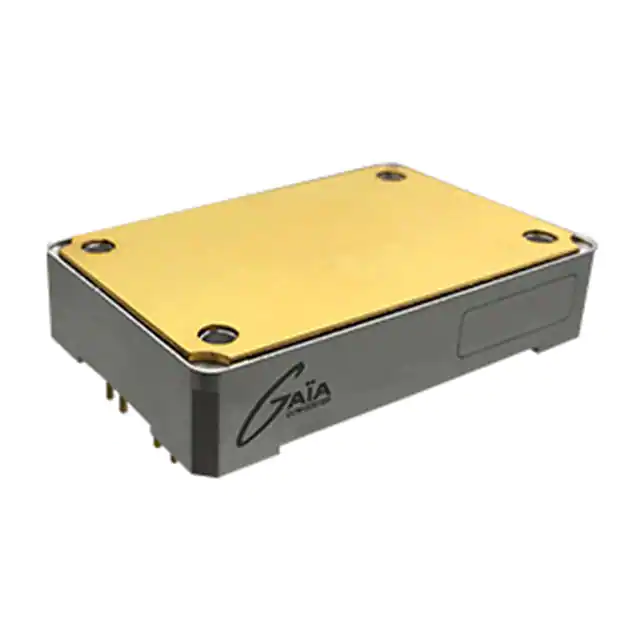

MGDSI-204-H-EDC DC CONVERTER 12V 200W |
23 |
|
Datasheet |
MGDSI-204 | Quarter Brick | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 16.7A | 200 W | 1.5 kV | ITE (Commercial) | Baseplate | -40°C ~ 100°C | 91% | - | - | Through Hole | Quarter Brick | - | - | - | |
|
|
UMHVP-1250NHV DC-DC CONVERTER, 12V IN, -5KV |
4 |
|
Datasheet |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 12V | -5000V | - | - | - | 100µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | - | - | - | - | |
|
V375C48T75BLDC DC CONVERTER 48V 75W |
2 |
|
Datasheet |
MICRO (75W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 250V | 425V | 48V | - | - | - | 1.56A | 75 W | 3 kV | ITE (Commercial) | OVP, UVLO | -40°C ~ 100°C | 84.1% | - | - | Through Hole | - | - | - | - | |
|
|
V375C48C75BLDC DC CONVERTER 48V 75W |
2 |
|
Datasheet |
MICRO (75W) | Quarter Brick | Tube | Active | Isolated Module | 1 | 250V | 425V | 48V | - | - | - | 1.56A | 75 W | 3 kV | ITE (Commercial) | OVP, UVLO | -20°C ~ 100°C | 84.1% | - | - | Through Hole | - | - | - | - | |
|
|
UMHVP-1250HV DC-DC CONVERTER, 12V IN, +5KV |
5 |
|
Datasheet |
UMHVP | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0V | 12V | 5000V | - | - | - | 100µA | - | 500 V | ITE (Commercial) | - | -55°C ~ 70°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
CHVM2R6-12-0470PWDC DC CONVERTER 470V 2.6W |
14 |
|
Datasheet |
CHVM (3W) | 7-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 470V | - | - | - | 5.6mA | 2.6 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | - | Enable, Active High | CE, CSA, UL | 62368-1 |
