DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IW1203SADC DC CONVERTER 3.3V 1W |
40 |
|
Datasheet |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 70% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
IW2415SADC DC CONVERTER 15V 1W |
26 |
|
Datasheet |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 75% | - | - | Through Hole | - | - | - | 62368-1 | |
|
R1S12-0505/HDC DC CONVERTER 5V 1W |
87 |
|
Datasheet |
ECONOLINE R1S (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
PUC1215050D2BG10.8-13.2VIN; +15 / -5V OUT; 2W; |
89 |
|
Datasheet |
PUC-D2BG (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 11.88V | 15V | -5V | - | - | 100mA, 100mA | 2 W | 6.2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 78% | - | - | Through Hole | - | - | cURus, UL | 62368-1 | |
|
|
PUC1515050D2BG13.5-16.5VIN; +15 / -5VOUT; 2W; |
70 |
|
Datasheet |
PUC-D2BG (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 14.85V | 15V | -5V | - | - | 100mA, 100mA | 2 W | 6.2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 79% | - | - | Through Hole | - | - | cURus, UL | 62368-1 | |
|
|
3S4AE_0505S1UPDC-DC INDUSTRIAL |
89 |
|
Datasheet |
3S4AE_1UP (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|
|
NID35-24DC DC CONVERTER 24V 36W |
8 |
|
Datasheet |
NID35 (35W) | 11-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 30V | 53V | 24V | - | - | - | 1.5A | 36 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -30°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | CE, EAC | - | |
|
|
PUC1215090D2BG15V -9V DC/DC CONVERTERS ISOLATE |
50 |
|
Datasheet |
PUC-D2BG (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -9V | - | - | 100mA, 60mA | 2.04 W | 6.2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 81% | - | - | Through Hole | - | - | cURus, UL | 60950-1; 62368-1 | |
|

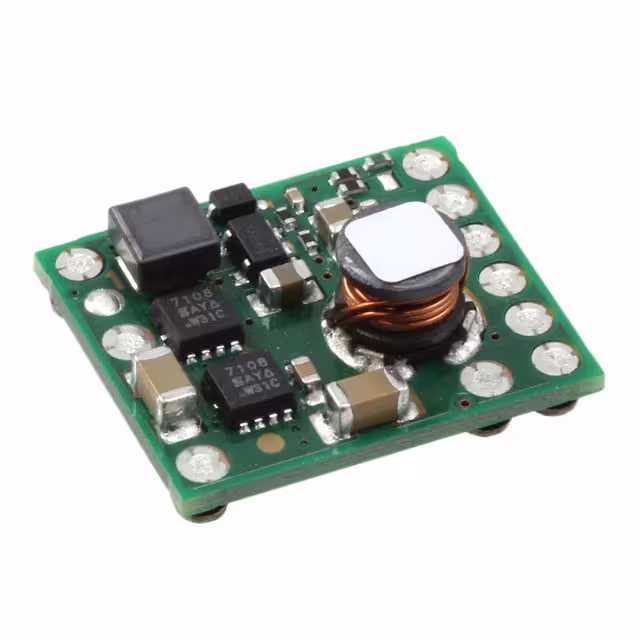

PTH04T260WASDC DC CONVERTER 0.69-3.6V |
72 |
|
Datasheet |
PTH04T260W | 10-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - | |
|
|
PUC1218090D2BG18V -9V DC/DC CONVERTERS ISOLATE |
73 |
|
Datasheet |
PUC-D2BG (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 18V | -9V | - | - | 90mA, 50mA | 2.07 W | 6.2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 79% | - | - | Through Hole | - | - | cURus, UL | 60950-1; 62368-1 | |
|
|
PUC1518050D2BG18V -5V DC/DC CONVERTERS ISOLATE |
64 |
|
Datasheet |
PUC-D2BG (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 18V | -5V | - | - | 90mA, 90mA | 2.07 W | 6.2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 81% | - | - | Through Hole | - | - | cURus, UL | 60950-1; 62368-1 | |
|
STH0548S15DC DC CONVERTER 15V |
100 |
|
Datasheet |
STH05 (5W) | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 21V | 72V | 15V | - | - | - | 400mA | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 92% | - | - | Surface Mount | - | - | - | - | |
|
|
3S7BE_1505D3UDC-DC INDUSTRIAL |
93 |
|
Datasheet |
3S7BE_3U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 14.25V | 15.75V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
3S7BE_2412D3UDC-DC INDUSTRIAL |
25 |
|
Datasheet |
3S7BE_3U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 22.8V | 25.2V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
3S7BE_1215D3UDC-DC INDUSTRIAL |
25 |
|
Datasheet |
3S7BE_3U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 11.4V | 12.6V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
3S7BE_1205D3UDC-DC INDUSTRIAL |
25 |
|
Datasheet |
3S7BE_3U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 11.4V | 12.6V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
|
6S8W_2405S1.6RPDC-DC INDUSTRIAL |
43 |
|
Datasheet |
6S8W_1.6RP (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
6S8W_1224S1.6RPDC-DC INDUSTRIAL |
22 |
|
Datasheet |
6S8W_1.6RP (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 250mA | 6 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - | |
|
ITW4812SADC DC CONVERTER 12V 1W |
12 |
|
Datasheet |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
ITW4824SADC DC CONVERTER 24V 1W |
12 |
|
Datasheet |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | 62368-1 |
