DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

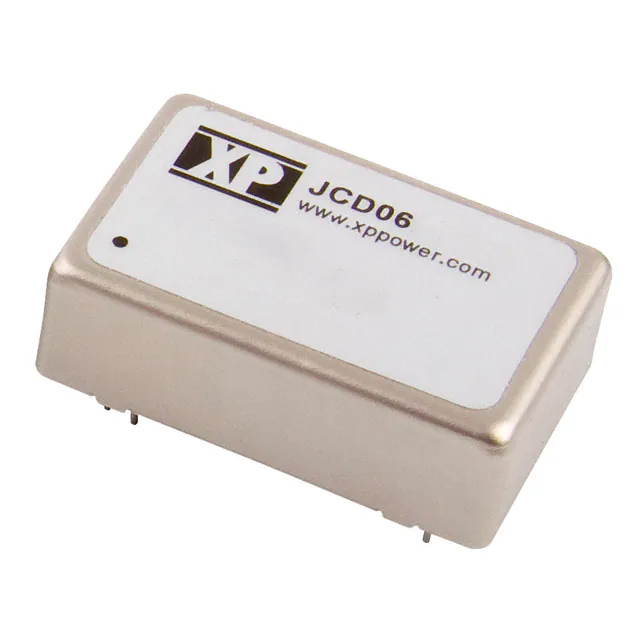

JCD0612S15DC DC CONVERTER 15V 6W |
10 |
|
Datasheet |
JCD (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 400mA | 6 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | - | - | 62368-1 | |
.jpg)
|
REC3-1209DRW/H/BDC DC CONVERTER +/-9V 3W |
30 |
|
Datasheet |
ECONOLINE REC3-DRW (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 9V | -9V | - | - | 165mA, 165mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
REC3-1212SRW/H4/CDC DC CONVERTER 12V 3W |
15 |
|
Datasheet |
ECONOLINE REC3-SRW (3W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
TDN 1-2422WISMDC DC CONVERTER +/-12V 1.1W |
15 |
|
Datasheet |
TDN 1WISM (1W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 45mA, 45mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 80% | - | - | Surface Mount | - | - | - | - | |
|
TRN 3-2410SMDC DC CONVERTER 3.3V 2.3W |
12 |
|
Datasheet |
TRN 3SM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 76% | - | - | Surface Mount | - | - | - | - | |
|
|
TRN 3-1213SMDC DC CONVERTER 15V 3W |
10 |
|
Datasheet |
TRN 3SM (3W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 1.6 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - | |
.jpg)
|
RW-1215DDC DC CONVERTER +/-15V 3W |
23 |
|
Datasheet |
ECONOLINE RW-D (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - | |
|
JCD0524D05DC DC CONVERTER +/-5V 5W |
50 |
|
Datasheet |
JCD (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 500mA | 5 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
JCD0524D03DC DC CONVERTER +/-3.3V 5W |
23 |
|
Datasheet |
JCD (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 3.3V | -3.3V | - | - | 750mA | 5 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 76% | - | - | Through Hole | - | - | - | 62368-1 | |
|
MGJ6Q12P24MC-R7DC DC CONVERTER 24V 24V 24V 6W |
22 |
|
Datasheet |
MGJ6 (6W) | 11-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 4 | 9V | 18V | 24V | 24V | 24V | - | 42mA, 42mA, 42mA, 125mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 84% | - | - | Surface Mount | - | - | - | - | |
|
R15P09S/X2/R8DC DC CONVERTER 9V 1W |
29 |
|
Datasheet |
ECONOLINE RxxPxx/R (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 1 W | 8 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
ITX1215SDC DC CONVERTER +/-15V 6W |
80 |
|
Datasheet |
ITX (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | - | - | - | 62368-1 | |
|
|
ITX1212SDC DC CONVERTER +/-12V 6W |
20 |
|
Datasheet |
ITX (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 65°C | 84% | - | - | Through Hole | - | - | - | 62368-1 | |
|
TEL 8-4812DC DC CONVERTER 12V 8W |
8 |
|
Datasheet |
TEL 8 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 665mA | 8 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 85% | - | - | Through Hole | - | - | - | - | |
|
DKE10C-15DC DC CONVERTER +/-15V 10W |
9 |
|
Datasheet |
DKE10 (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 72V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 71°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
|
PTM2-24-D12-SDC-DC, ISOLATED, 2 W, 21.6~26.4 |
48 |
|
Datasheet |
PTM2-S (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | - | - | CE, cURus, UKCA | 60601-1; 62368-1 | |
|
|
PTM2-24-D5-SDC-DC, ISOLATED, 2 W, 21.6~26.4 |
48 |
|
Datasheet |
PTM2-S (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, cURus, UKCA | 60601-1; 62368-1 | |
|
|
PTM2-12-D12-SDC-DC, ISOLATED, 2 W, 10.8~13.2 |
48 |
|
Datasheet |
PTM2-S (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | - | - | CE, cURus, UKCA | 60601-1; 62368-1 | |
|
|
PTM2-5-D12-SDC-DC, ISOLATED, 2 W, 4.5~5.5 VD |
43 |
|
Datasheet |
PTM2-S (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, cURus, UKCA | 60601-1; 62368-1 | |
|
|
PTM2-3-D12-SDC-DC, ISOLATED, 2 W, 2.97~3.63 |
43 |
|
Datasheet |
PTM2-S (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 2.97V | 3.63V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | - | - | CE, cURus, UKCA | 60601-1; 62368-1 |
