DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

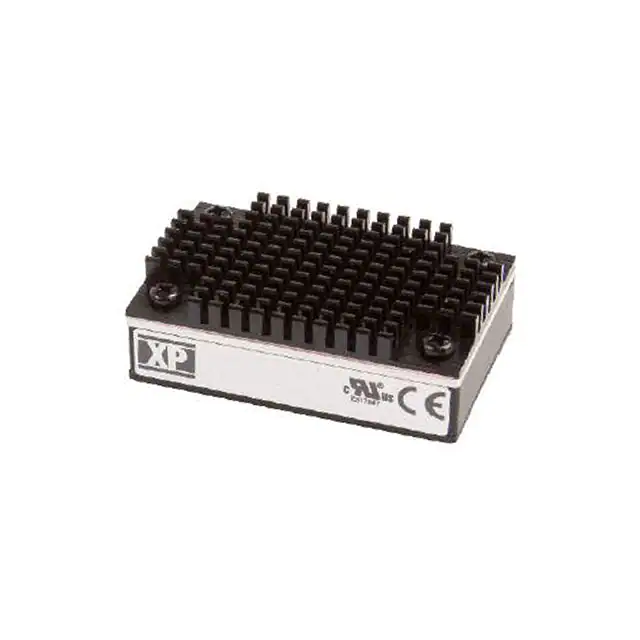

RCQ7572S12DC DC CONVERTER 12V 75W |
15 |
|
Datasheet |
RCQ (50W) | 8-DIP Module | Bulk | Active | Isolated Module | 1 | 43V | 101V | 12V | - | - | - | 6.25A | 75 W | 3 kV | ITE (Commercial), Railway | Remote On/Off | -40°C ~ 35°C | 92% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 | |
|
PRC60W-110-S24DC-DC, ISOLATED, 60 W, 40 ~ 160 |
24 |
|
Datasheet |
PRC60W (60) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 2.5A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | CE, UKCA | - | |
|
70IMX7-12-12-8GDC DC CONVERTER 12V 12V 7W |
9 |
|
Datasheet |
Melcher IMX7 (7W) | 14-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 40V | 121V | 12V | 12V | - | - | 300mA, 300mA | 7 W | 2 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - | |
|
TEN 40-7222WIRDC DC CONVERTER +/-12V 40W |
20 |
|
Datasheet |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 43V | 160V | 12V | -12V | - | - | 1.666A, 1.666A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
|
TEN 40-7223WIRDC DC CONVERTER +/-15V 40W |
9 |
|
Datasheet |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 43V | 160V | 15V | -15V | - | - | 1.333A, 1.333A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | - | - | - | - | |
|
|
BMR4913206/85545-60VIN; 10.4VOUT; 1300W; PMBUS |
15 |
|
Datasheet |
BMR491 (1300W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 45V | 60V | 10.4V | - | - | - | 125A | 1.3 kW | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, I2C Interface, PMBus™, Remote On/Off, Standby Output | -40°C ~ 115°C | 97.3% | - | - | Through Hole | Quarter Brick | Enable, Active Low | cURus, UL | 62368-1 | |
|
RP40-4805SFR/PDC DC CONVERTER 5V 40W |
16 |
|
Datasheet |
POWERLINE RP40-FR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 6-DIP Module | Enable, Active High | - | - | |
|
PXD60-24WS3P3DC DC CONVERTER 3.3V 40W |
20 |
|
Datasheet |
PXD60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 12A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | CE, UKCA | 62368-1 | |
|
|
PXD60-48WD24DC DC CONVERTER +/-24V 60W |
10 |
|
Datasheet |
PXD60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 24V | -24V | - | - | 1.25A, 1.25A | 60 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active High | CE, UKCA | 62368-1 | |
|
|
PXD60-24WD24DC DC CONVERTER +/-24V 60W |
5 |
|
Datasheet |
PXD60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 1.25A, 1.25A | 60 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | - | Enable, Active High | CE, UKCA | 62368-1 | |
|
VHB100W-Q48-S28DC DC CONVERTER 28V 100W |
12 |
|
Datasheet |
VHB100W (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 75V | 28V | - | - | - | 3.57A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 88% | - | - | Through Hole | - | Enable, Active High | UL | 60950-1 | |
|
|
VHB100W-Q24-S28DC DC CONVERTER 28V 100W |
8 |
|
Datasheet |
VHB100W (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 28V | - | - | - | 3.57A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active High | UL | 60950-1 | |
|
TEP 40-7218UIRDC DC CONVERTER 48V 40W |
5 |
|
Datasheet |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 830mA | 40 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | Quarter Brick | - | CB, cURus | - | |
|
|
TEP 40-3613UIRDC DC CONVERTER 15V 40W |
3 |
|
Datasheet |
TEP 40UIR (40W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 75V | 15V | - | - | - | 2.67A | 40 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | Quarter Brick | - | CB, cURus | - | |
|
|
RQB150W3-110S24150W,I/P:60-160VDC;O/P:24V@6.25A |
3 |
|
Datasheet |
RQB150W3 (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 60V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | - | CE, EAC, UKCA | 62368-1 | |
|
|
RQB150W3-110S54150W,I/P:60-160VDC;O/P:54V@2.778 |
3 |
|
Datasheet |
RQB150W3 (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 60V | 160V | 54V | - | - | - | 2.778A | 150 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | Quarter Brick | - | CE, EAC, UKCA | 62368-1 | |
|
|
RQB150W3-110S48150W,I/P:60-160VDC;O/P:48V@3.125 |
3 |
|
Datasheet |
RQB150W3 (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 60V | 160V | 48V | - | - | - | 3.125A | 150 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | Quarter Brick | - | CE, EAC, UKCA | 62368-1 | |
|
|
RQB150W3-110S12150W,I/P:60-160VDC;O/P:12V@12.5A |
2 |
|
Datasheet |
RQB150W3 (150W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 60V | 160V | 12V | - | - | - | 12.5A | 150 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 88.5% | - | - | Through Hole | Quarter Brick | - | CE, EAC, UKCA | 62368-1 | |
|
TEN 60-7218WIRDC DC CONVERTER 48V 60W |
20 |
|
Datasheet |
TEN 60WIR (60W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 160V | 48V | - | - | - | 1.25A | 60 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | - | - | - | - | |
|
|
BMR4912511/85840-60VIN: 12.2VOUT: 1300W; 1800W |
25 |
|
Datasheet |
BMR491 (1300W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 40V | 60V | 12.2V | - | - | - | 110A | 1.342 kW | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, I2C Interface, PMBus™, Remote On/Off, Standby Output | -40°C ~ 125°C | 97% | - | - | Through Hole | Quarter Brick | Enable, Active Low | cURus, UL | 60950-1; 62368-1 |
