DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCM2322T50T2660T60DC DC CONVERTER 24V 60W |
325 |
|
Datasheet |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 24V | - | - | - | 2.5A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 93% | - | - | Through Hole | - | - | CE, cTUVus, cURus | - | |
|

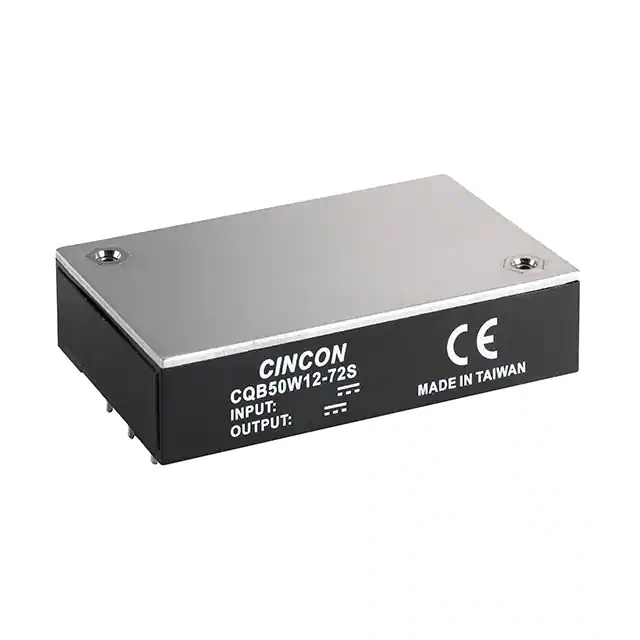

CQB50W12-72S24DC DC CONVERTER 24V 50W |
652 |
|
Datasheet |
CQB50W12 (50W) | Module | Tray | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 2.1A | 50 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 | |
|
|
CQB50W12-72S12DC DC CONVERTER 12V 50W |
345 |
|
Datasheet |
CQB50W12 (50W) | Module | Tray | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 4.2A | 50 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 | |
|

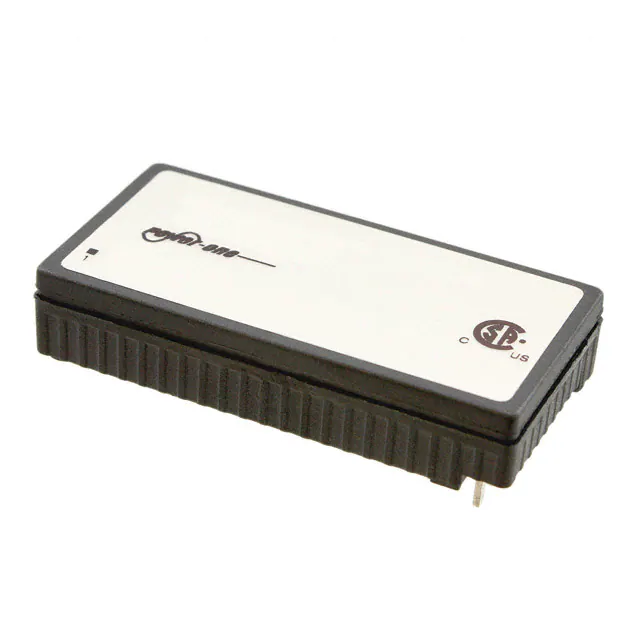

20IMX7-05-8GDC DC CONVERTER 5.1V 7W |
519 |
|
Datasheet |
Melcher IMX7 (7W) | 14-DIP Module | Bulk | Active | Isolated Module, Conformal Coated | 1 | 8.4V | 36V | 5.1V | - | - | - | 1.2A | 7 W | 1.2 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - | |
|

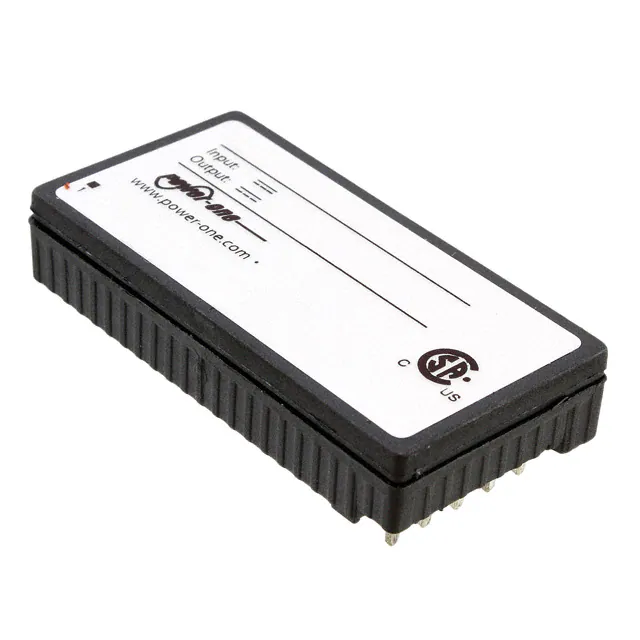

40IMX7-05-05-8GDC DC CONVERTER 5V 5V 7W |
119 |
|
Datasheet |
Melcher IMX7 (7W) | 14-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 5V | 5V | - | - | 700mA, 700mA | 7 W | 1.2 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
40IMX7-12-12-8GDC DC CONVERTER 12V 12V 7W |
81 |
|
Datasheet |
Melcher IMX7 (7W) | 14-DIP Module, 9 Leads | Tube | Active | Isolated Module, Conformal Coated | 2 | 16.8V | 75V | 12V | 12V | - | - | 300mA, 300mA | 7 W | 1.2 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
TEN 60-2412DC DC CONVERTER 12V 60W |
29 |
|
Datasheet |
TEN 60 (60W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | Module | - | - | - | |
|

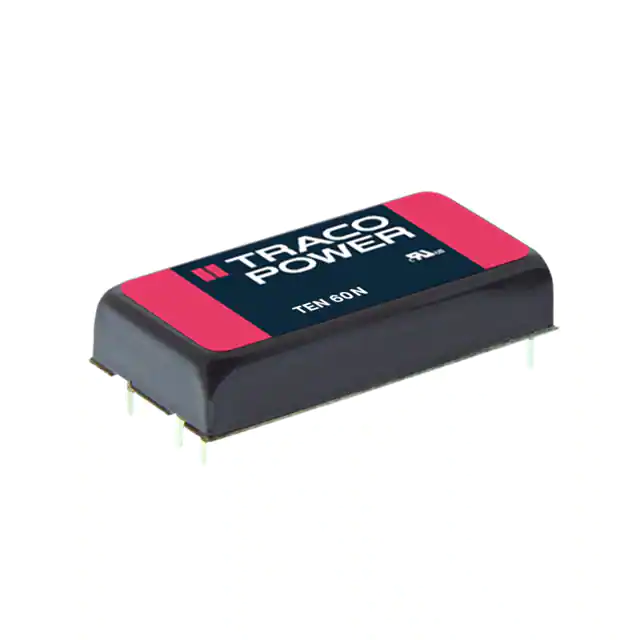

TEN 60-4812NDC DC CONVERTER 12V 60W |
28 |
|
Datasheet |
TEN 60N (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | Module | - | - | - | |
|
QSB35024S24DC DC CONVERTER 24V 350W |
208 |
|
Datasheet |
QSB (350W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 14.6A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
QSB35048S12DC DC CONVERTER 12V 350W |
137 |
|
Datasheet |
QSB (350W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 29.2A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 92.5% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
|
QSB35024S28DC DC CONVERTER 28V 350W |
78 |
|
Datasheet |
QSB (350W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 12.5A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 91% | - | - | Through Hole | - | Enable, Active High | - | - | |
|
LTP8803-1AIPV#PBFLTP8803-1AIPV#PBF |
36 |
|
Datasheet |
µModule® | Module | Tray | Active | Non-Isolated PoL Module | 1 | 45V | 65V | 0.5 ~ 1.5V | - | - | - | 160A | - | - | ITE (Commercial) | Adjustable Output, I2C Interface, PMBus™, Remote Sense | 0°C ~ 125°C | 91.7% | - | - | Surface Mount | Module | - | - | - | |
|
LTM4680EY#PBFDC DC CNVRTR 0.5-3.3V 0.5-3.3V |
316 |
|
Datasheet |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.5 ~ 3.3V | 0.5 ~ 3.3V | - | - | 30A, 30A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 144-BGA (16x16) | - | - | - | |
|
CQB150W-48S24DC DC CONVERTER 24V 151W |
163 |
|
Datasheet |
CQB150W (150W) | Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 6.3A | 151 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Through Hole | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 | |
|
|
CQB150W-24S24DC DC CONVERTER 24V 151W |
118 |
|
Datasheet |
CQB150W (150W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 6.3A | 151 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 | |
|
VHB75W-Q24-S12DC DC CONVERTER 12V 75W |
179 |
|
Datasheet |
VHB75W (75W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | - | Enable, Active High | EN, UL | 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3 | |
|

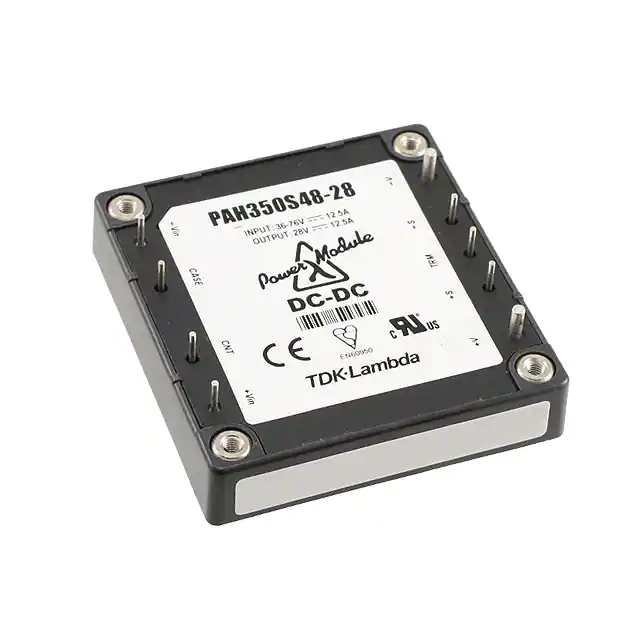

PAH350S48-28DC DC CONVERTER 28V 350W |
52 |
|
Datasheet |
PAH350 (350W) | 9-DIP Module, 1/2 Brick | Bulk | Active | Isolated Module | 1 | 36V | 76V | 28V | - | - | - | 12.5A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 92% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
CHB350-48S12DC DC CONVERTER 12V 350W |
100 |
|
Datasheet |
CHB350 (350W) | Half Brick | Box | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 29.2A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 92.5% | - | - | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
THM 60-2415WI60W MEDICAL DC/DC CONVERTER ISOL |
54 |
|
Datasheet |
THM 60WI (60W) | Quarter Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.5A | 60 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 70°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | - | CB, cURus | 60601-1; 62368-1 | |
|
|
THM 60-4815WI60W MEDICAL DC/DC CONVERTER ISOL |
106 |
|
Datasheet |
THM 60WI (60W) | Quarter Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.5A | 60 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 70°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, cURus | 60601-1; 62368-1 |
