DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

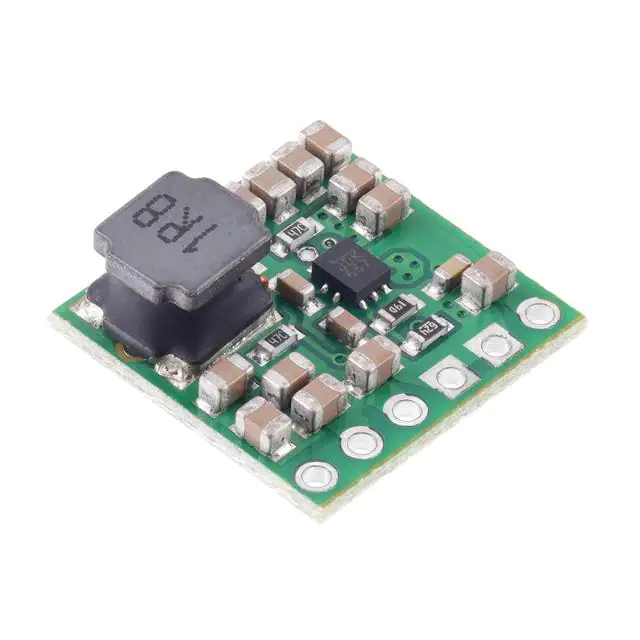

40125V STEPUP VREG U3V40F5 |
90 |
|
Datasheet |
- | 6-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 1.3V | 5V | 5V | - | - | - | 3.5A | 38 W | - | - | OTP, OVP, UVLO | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
40147.5V STEPUP VREG U3V40F7 |
62 |
|
Datasheet |
- | 6-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 1.3V | 7.5V | 7.5V | - | - | - | 3.5A | 57 W | - | ITE (Commercial) | OTP, OVP, UVLO | - | 95% | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
PGNM1-S12-S5-SDC-DC ISOLATED, 1 W, 10.8~13.2 V |
46 |
|
Datasheet |
PGNM1-S (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 6 kV | ITE (Commercial), Medical | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | - | - | CE, cURus, UKCA | 60601-1; 62368-1 | |
|

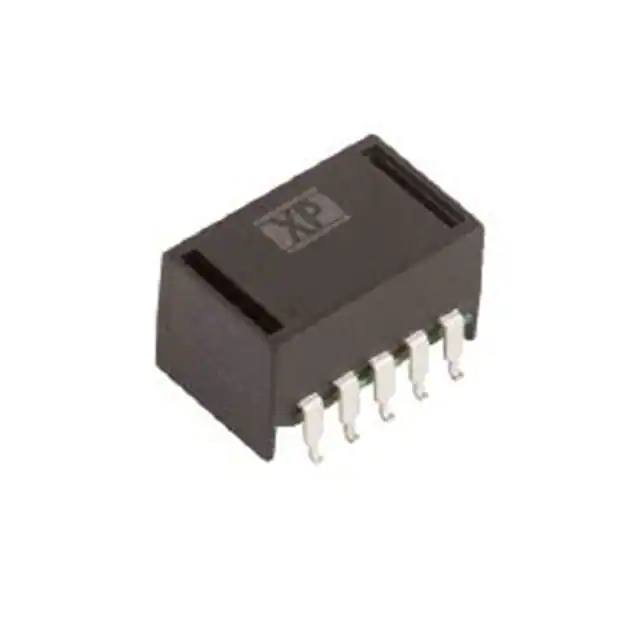

STR05S1V8DC DC CONVERTER 1.8V 1W |
51 |
|
Datasheet |
STR | 10-SMD Module | Bulk | Active | Linear Regulator Replacement | 1 | 4.75V | 32V | 1.8V | - | - | - | 500mA | 1 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 71% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
|
STR05S1V5DC DC CONVERTER 1.5V 1W |
27 |
|
Datasheet |
STR | 10-SMD Module | Bulk | Active | Linear Regulator Replacement | 1 | 4.75V | 32V | 1.5V | - | - | - | 500mA | 1 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 63% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
|
PDS1-S5-S24-DDC DC CONVERTER 24V 1W |
0 |
|
Datasheet |
PDS1-D (1W) | 7-DIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|
PQP1-D12-S24-DDC DC CONVERTER 24V 1W |
73 |
|
Datasheet |
PQP1-D | 8-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PQP1-D24-S12-DDC DC CONVERTER 12V 996MW |
54 |
|
Datasheet |
PQP1-D | 8-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
PQP1-D12-S5-MDC DC CONVERTER 5V 1W |
0 |
|
Datasheet |
PQP1-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
|
PQP1-D24-S24-MDC DC CONVERTER 24V 1W |
33 |
|
Datasheet |
PQP1-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
|
PQP1-D12-S3-MDC DC CONVERTER 3.3V 1W |
31 |
|
Datasheet |
PQP1-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
|
PQP1-D12-S12-DDC DC CONVERTER 12V 996MW |
28 |
|
Datasheet |
PQP1-D | 8-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 83mA | 996 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|

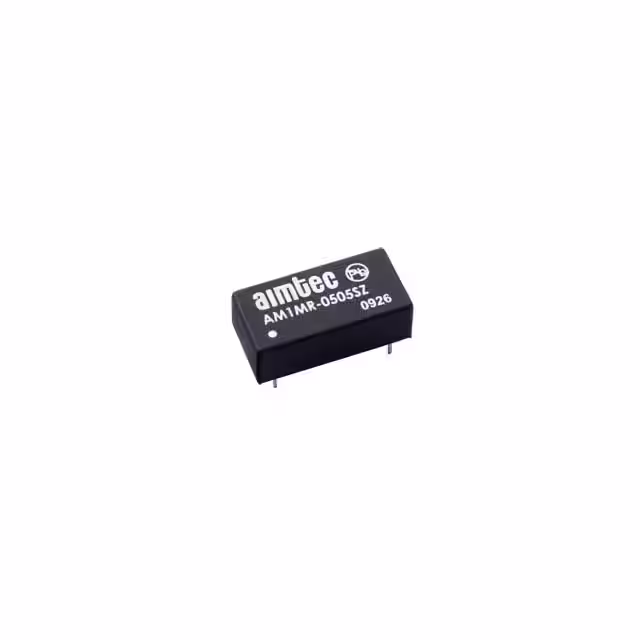

AM1MR-1212SZDC DC CONVERTER 12V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 66% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1MR-1215SZDC DC CONVERTER 15V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1MR-1207SZDC DC CONVERTER 7.2V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 7.2V | - | - | - | 139mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 66% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1MR-2407SZDC DC CONVERTER 7.2V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 7.2V | - | - | - | 139mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1MR-2403SZDC DC CONVERTER 3.3V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 63% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1MR-1205SZDC DC CONVERTER 5V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 63% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1MR-2405SZDC DC CONVERTER 5V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | - | - | CE | - | |
|
|
AM1MR-1203SZDC DC CONVERTER 3.3V 1W |
60 |
|
Datasheet |
AM1MR-Z (1W) | 14-DIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 60% | - | - | Through Hole | - | - | CE | - |
