DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISV0224S12DC DC CONVERTER 12V 2W |
23 |
|
Datasheet |
ISV02 (2W) | 6-SMD Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 75°C | 79% | - | - | Surface Mount | - | - | - | - | |
|
|
ISV0212S05DC DC CONVERTER 5V 2W |
17 |
|
Datasheet |
ISV02 (2W) | 6-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 75°C | 78% | - | - | Surface Mount | - | - | - | - | |
|
AM3GW-2415DZDC DC CONVERTER +/-15V 3W |
19 |
|
Datasheet |
AM3GW-Z (3W) | 9-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | -15 ~ 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | CE, cURus, UL | - | |
|
IMM0105S3V3DC DC CONVERTER 3.3V 1W |
40 |
|
Datasheet |
IMM01 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | Medical | Remote On/Off, SCP | -20°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
IMM0112S05DC DC CONVERTER 5V 1W |
30 |
|
Datasheet |
IMM01 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | Medical | Remote On/Off, SCP | -20°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
IMM0112S12DC DC CONVERTER 12V 1W |
29 |
|
Datasheet |
IMM01 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | Medical | Remote On/Off, SCP | -20°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
IMM0112S15DC DC CONVERTER 15V 1W |
27 |
|
Datasheet |
IMM01 (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | Medical | Remote On/Off, SCP | -20°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | - | |
|
AM1DU-0505SH30ZDC DC CONVERTER 5V 1W |
14 |
|
Datasheet |
AM1DU-Z (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 76% | - | - | Through Hole | - | - | - | - | |
|
|
AM1DU-0512SH30ZDC DC CONVERTER 12V 996MW |
6 |
|
Datasheet |
AM1DU-Z (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - | |
|
|
AM1DU-2412SH30ZDC DC CONVERTER 12V 996MW |
6 |
|
Datasheet |
AM1DU-Z (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 83mA | 996 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - | |
|

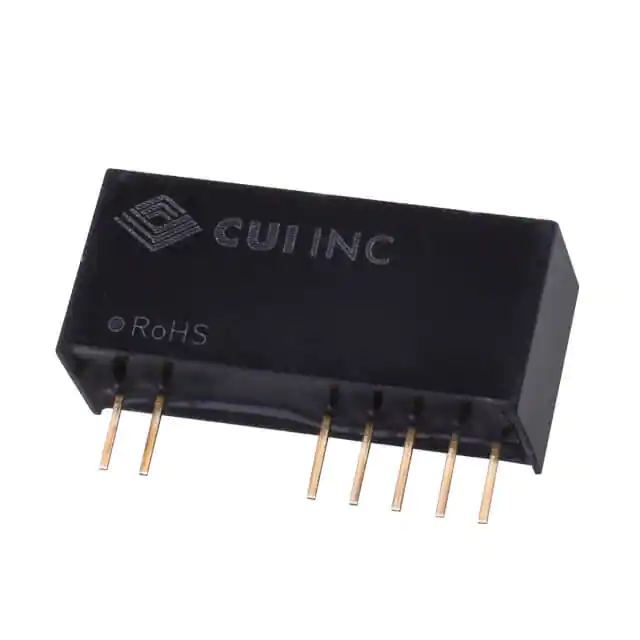

PRQ3W-Q48-D512-SDC DC CONVERTER 5V 12V 3W |
10 |
|
Datasheet |
PRQ3W-S | 10-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 75V | 5V | 12V | - | - | 300mA, 125mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | CE | - | |
|
|
PCWS-0505DC DC CONVERTER 5V 5W |
69 |
|
Datasheet |
PCW (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 800mA | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 60°C | 80% | - | - | Through Hole | - | - | CE, FCC | - | |
|
|
PT5526NDC DC CONVERTER 1.2V 1.5A |
0 |
|
Datasheet |
Excalibur™ PT5520 | 5-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 1.2V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
|
PCWS-1203.3DC DC CONVERTER 3.3V 5W |
21 |
|
Datasheet |
PCW (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 60°C | 80% | - | - | Through Hole | - | - | CE, FCC | - | |
|
|
PCWS-1212DC DC CONVERTER 12V 5W |
13 |
|
Datasheet |
PCW (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 417mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 60°C | 85% | - | - | Through Hole | - | - | CE, FCC | - | |
|
|
PCWS-1205DC DC CONVERTER 5V 5W |
10 |
|
Datasheet |
PCW (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 60°C | 81% | - | - | Through Hole | - | - | CE, FCC | - | |
.jpg)
|
REC3-1215SR/H1DC DC CONVERTER 15V 3W |
15 |
|
Datasheet |
ECONOLINE REC3-SR (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
REC3-1212SR/H1DC DC CONVERTER 12V 3W |
30 |
|
Datasheet |
ECONOLINE REC3-SR (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
REC3-2412SR/H1DC DC CONVERTER 12V 3W |
15 |
|
Datasheet |
ECONOLINE REC3-SR (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 80°C | 65% | - | - | Through Hole | - | - | - | - | |
|
|
HSRP6-48S15DC DC CONVERTER 15V 9W |
10 |
|
Datasheet |
HSRP6 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 20V | 72V | 15V | - | - | - | 600mA | 9 W | - | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 94% | - | - | Through Hole | - | - | CE | - |
