DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC3AB31DC DC CONVERTER 5V 3W |
20 |
|
Datasheet |
EC3AB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | - | - | - | - | |
|
ASR01-12S05DC DC CONVERTER -5V 5W |
9 |
|
Datasheet |
ASR01 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | -7V | -32V | -5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 91.5% | - | - | Through Hole | - | - | CE | - | |
|
PQMC3-D48-D15-SDC DC CONVERTER +/-15V 3W |
16 |
|
Datasheet |
PQMC3-S (3W) | 8-SIP Module, 7 Leads | Bulk | Not For New Designs | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | - | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PQC10-48-S5-ODC-DC ISOLATED, 10 W, 36~75 VDC |
45 |
|
Datasheet |
PQC10-O (10W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 60V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | Sixteenth Brick | - | - | 62368-1 | |
|
PRMC3-D5-S15-SDC DC CONVERTER 15V 2.5W |
56 |
|
Datasheet |
PRMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 15V | - | - | - | 167mA | 2.5 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 74% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PRMC3-D12-S3-SDC DC CONVERTER 3.3V 2.5W |
13 |
|
Datasheet |
PRMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 758mA | 2.5 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 74% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PRMC3-D5-D5-SDC DC CONVERTER +/-5V 2.5W |
24 |
|
Datasheet |
PRMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 250mA, 250mA | 2.5 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 74% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
PUZ3-D48-D12-DDC DC CONVERTER +/-12V 3W |
12 |
|
Datasheet |
PUZ3-D (3W) | 24-DIP Module, 8 Leads | Bulk | Not For New Designs | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 83% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PUZ3-D12-D12-DDC DC CONVERTER +/-12V 3W |
40 |
|
Datasheet |
PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
PQB3-D12-D5-DDC DC CONVERTER +/-5V 3W |
33 |
|
Datasheet |
PQB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PUZ3-D5-D15-DDC DC CONVERTER +/-15V 3W |
21 |
|
Datasheet |
PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
URA2412YMD-6WR3DC DC CONVERTER +/-12V 6W |
81 |
|
Datasheet |
URA_YMD-6WR3 (6W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, CE, cURus | - | |
|
|
URA2424YMD-6WR3DC DC CONVERTER +/-24V 6W |
55 |
|
Datasheet |
URA_YMD-6WR3 (6W) | 5-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 125mA, 125mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, CE, cURus | - | |
|

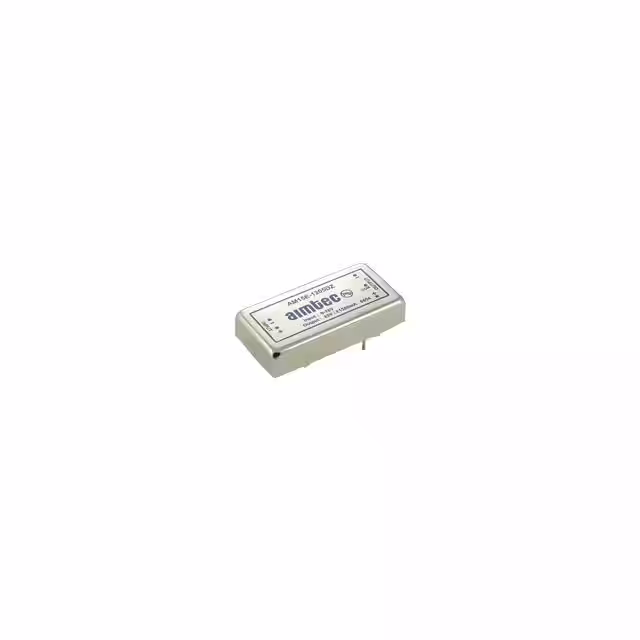

AM15E-1218DZDC DC CONVERTER +/-18V 14W |
97 |
|
Datasheet |
AM15E-Z (15W) | - | Tube | Active | Isolated Module | 2 | 9V | 18V | -18 ~ 18V | -18V | - | - | 400mA, 400mA | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | CE, cULus, cURus | - | |
|
PQDE6W-Q48-S15-DDC DC CONVERTER 15V 6W |
9 |
|
Datasheet |
PQDE6W-D (6W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|
|
PQC20-48-S24-ODC-DC ISOLATED, 20 W, 36~75 VDC |
23 |
|
Datasheet |
PQC20-O (20W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 60V | 24V | - | - | - | 833mA | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Sixteenth Brick | - | - | 62368-1 | |
|
PVB3-D24-S5-DDC DC CONVERTER 5V 3W |
68 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 60950-1 | |
|
|
PVB3-D48-S15-DDC DC CONVERTER 15V 3W |
7 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 86% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PVB3-D48-D12-DDC DC CONVERTER +/-12V 3W |
14 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 83% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A | |
|
|
PVB3-D48-D5-DDC DC CONVERTER +/-5V 3W |
14 |
|
Datasheet |
PVB3-D (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
