Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB6DA25BCOMPLETE PUSH BUTTON, HARMONY XB |
0 |
|
Datasheet |
Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

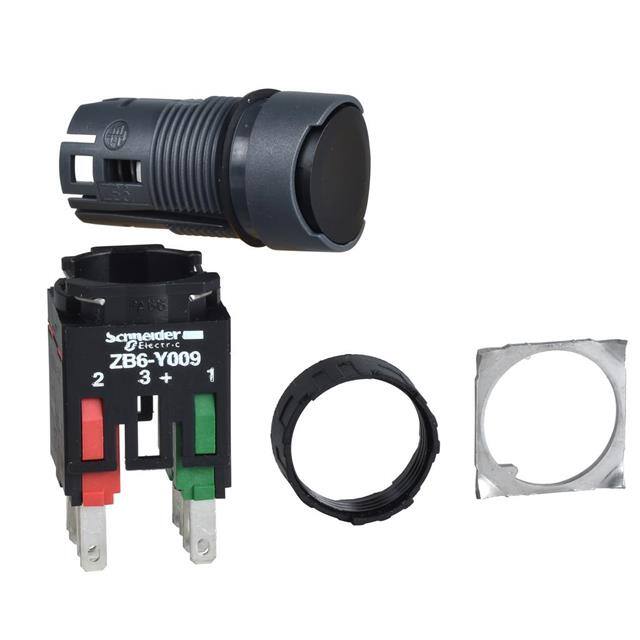

XB6AA25BCOMPLETE PUSH BUTTON, HARMONY XB |
0 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
AH1LBSR12WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSR220WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 220 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSG24WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBB110WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 110 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSB12WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSB110WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 110 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSR24WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSG220WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Green | 220 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBB12WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBB6WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSB220WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 220 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBSR110WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Red | 110 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBR6WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Red | 6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBG6WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Green | 6 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBG24WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Green | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBR24WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBB24WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Blue | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1LBBR220WA1SWITCH PB SPST NO + SPST NC 20A |
0 |
|
Datasheet |
AH | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Red | 220 VAC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 70°C |
