Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW1B-M1P11YPUSHBUTTON 22MM 1NO1NC YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1P11SPUSHBUTTON 22MM 1NO1NC BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1P20GPUSHBUTTON 22MM 2NO GREEN |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1P11WPUSHBUTTON 22MM 1NO1NC WHITE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1P20YPUSHBUTTON 22MM 2NO YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1P11RPUSHBUTTON 22MM 1NO1NC RED |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 8A (DC) | 120 V | 24 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
NX301FB1B-LTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|

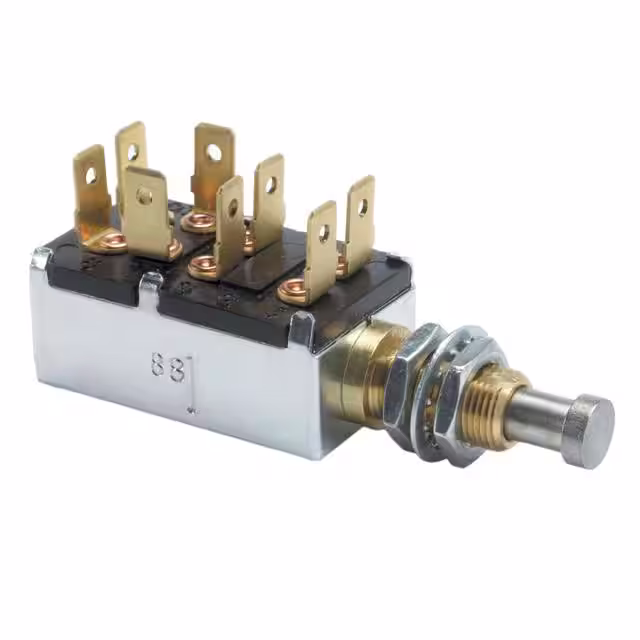

91050SWITCH CONTROL |
0 |
|
- |
- | Bulk | Active | Panel Mount, Rear | Standard | 3PDT | On-Off-On | 5A (DC) | - | 12 V | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
|
HW1B-M4P11S22MM MOMENTARY PUSHBUTTON BLU |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11W22MM MOMENTARY PUSHBUTTON WHT |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11R22MM MOMENTARY PUSHBUTTON RED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11B22MM MOMENTARY PUSHBUTTON BLK |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11Y22MM MOMENTARY PUSHBUTTON YEL |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1B-M4P11G22MM MOMENTARY PUSHBUTTON GRN |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
NX304005RTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
XB7NL45PB - PROJ SPRING RTN, RED -NO+NC |
0 |
|
Datasheet |
Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
NX301HB3R-61TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
NX303AB1R-ETACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|

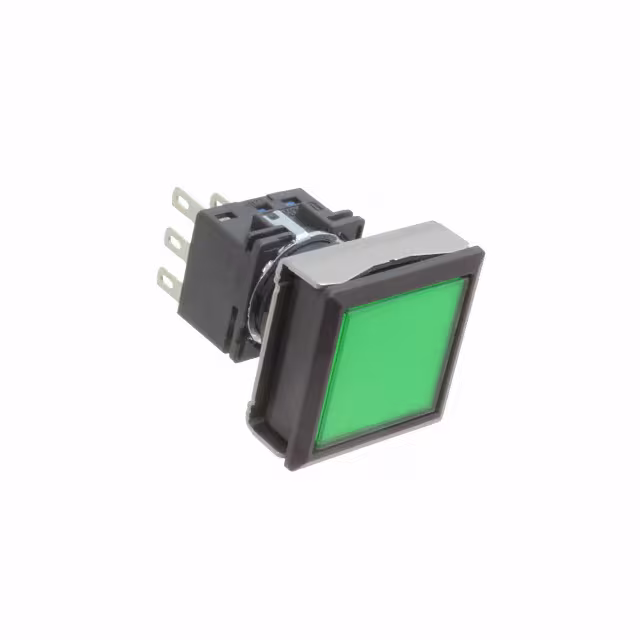

LBW7L-M1T54GLBW FLUSH ILLD PB MOME. GREEN |
2 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
YB216CWCKW01-6B-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
