Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW6MB-M1C5LS25MM PUSHBUTTON BLUE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|

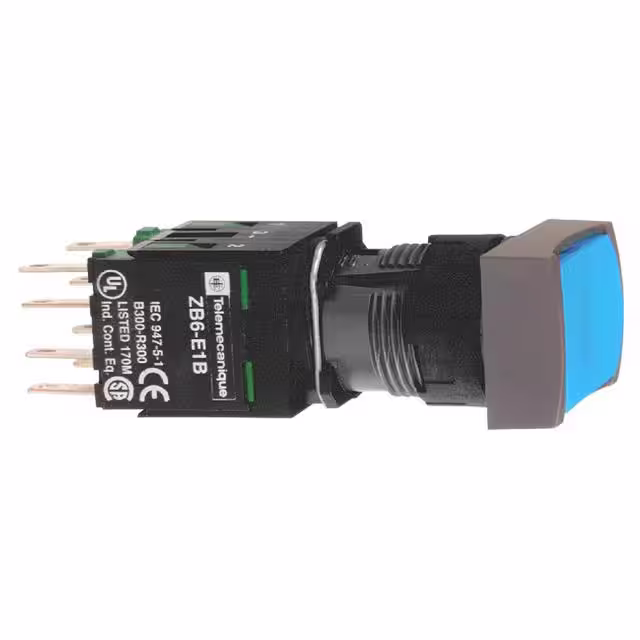

XB6DA61BCOMPLETE PUSH BUTTON, HARMONY XB |
0 |
|
Datasheet |
Harmony XB6 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Blue | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
MPI001/FL/BL/12SWITCH PUSH SPST-NO 0.05A 24V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Wire Leads | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
LW1L-M1C10-WILL PB SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | LED, White | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10V-WILL PB SPDT PCB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | LED, White | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10-YILL PB SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Yellow | LED, Yellow | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10V-SILL PB SPDT PCB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10V-RILL PB SPDT PCB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Red | LED, Red | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10-SILL RND DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10V-GILL PB SPDT PCB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10V-AILL PB SPDT PCB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Amber | LED, Amber | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10-RILL PB SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Red | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10-AILL PB SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Amber | LED, Amber | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-M1C10V-GLILL PB SPDT PCB |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Green | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C10GILL SQ GOLD SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Green | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C10V-RILL SQ PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Red | LED, Red | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C10-SLW ILL SQ GOLD SPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C10V-SLW ILL PB SQR FLSH MTD GLD-CNT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C10V-GILL SQ PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Green | LED, Green | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW2L-M1C10V-WILL SQ PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | White | LED, White | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
