Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABD410NUR30MM MOM 65MM MUSH 1NO RED |
0 |
|
Datasheet |
TWND | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Mushroom | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.50mm Dia | -25°C ~ 70°C |
|
1241.8488SWITCH PUSHBUTTON SPDT 100MA 30V |
0 |
|
Datasheet |
MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
1241.8524SWITCH PUSHBUTTON SPDT 10A 250V |
0 |
|
Datasheet |
MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 22.10mm Dia | -25°C ~ 85°C |
|

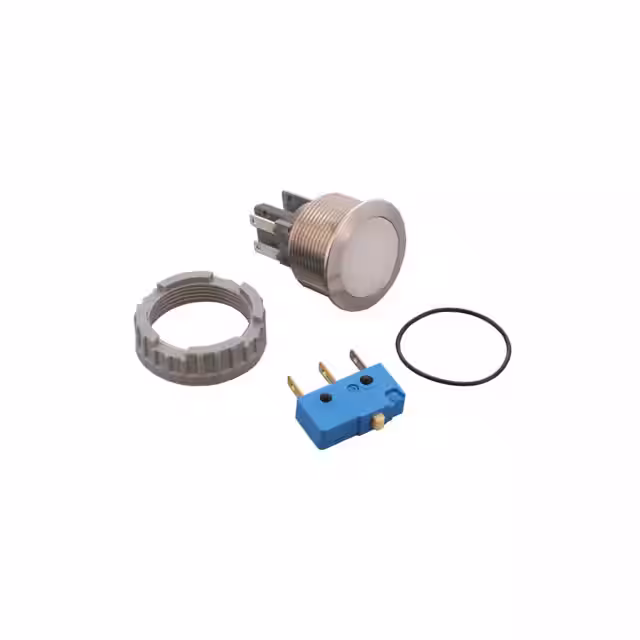

MSM22-NXCSA10-SNCCWTNF-AIRGB024-Q0000-SMSM SERIES 22MM METAL LINE SWITC |
0 |
|
Datasheet |
MSM CS | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | Ceramic Actuator | Circular - 22.10mm Dia | -25°C ~ 85°C |
|
|
NX304GB1GTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Gray | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
CW1B-M1E03BPUSHBUTTON 22MM 3NC BLACK |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NC | On-Mom | - | - | - | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E03GPUSHBUTTON 22MM 3NC GREEN |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NC | On-Mom | - | - | - | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E03RPUSHBUTTON 22MM 3NC RED |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NC | On-Mom | - | - | - | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E12WPUSHBUTTON 22MM 1NO2NC WHITE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-2NC/1NO | On-Mom, Off-Mom | - | - | - | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M2E12RPUSHBUTTON 22MM 1NO2NC RED |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-2NC/1NO | On-Mom, Off-Mom | - | - | - | Round, Button | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M2E12SPUSHBUTTON 22MM 1NO2NC BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-2NC/1NO | On-Mom, Off-Mom | - | - | - | Round, Button | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M2E03BPUSHBUTTON 22MM 3NC BLACK |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NC | On-Mom | - | - | - | Round, Button | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E21BPUSHBUTTON 22MM 2NO1NC BLACK |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-2NO/1NC | On-Mom, Off-Mom | - | - | - | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M2E03YPUSHBUTTON 22MM 3NC YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NC | On-Mom | - | - | - | Round, Button | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M2E03RPUSHBUTTON 22MM 3NC RED |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NC | On-Mom | - | - | - | Round, Button | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E12YPUSHBUTTON 22MM 1NO2NC YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-2NC/1NO | On-Mom, Off-Mom | - | - | - | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E21YPUSHBUTTON 22MM 2NO1NC YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-2NO/1NC | On-Mom, Off-Mom | - | - | - | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E12GPUSHBUTTON 22MM 1NO2NC GREEN |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-2NC/1NO | On-Mom, Off-Mom | - | - | - | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M2E03SPUSHBUTTON 22MM 3NC BLUE |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NC | On-Mom | - | - | - | Round, Button | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
|
|
CW1B-M1E30YPUSHBUTTON 22MM 3NO YELLOW |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard | 3PST-NO | Off-Mom | - | - | - | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 60°C |
