Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7L-M1T24ALBW FLUSH ILLD PB MOME. AMBER |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24GLBW FLUSH ILLD PB MOME. GREEN |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24RLBW FLUSH ILLD PB MOME. RED |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24VALBW FLUSH ILLD PB MOME. AMBER |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Amber | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24VGLBW FLUSH ILLD PB MOME. GREEN |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24VRLBW FLUSH ILLD PB MOME. RED |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Red | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24VYLBW FLUSH ILLD PB MOME. YELLOW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T24YLBW FLUSH ILLD PB MOME. YELLOW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7L-M1T64YLBW FLUSH ILLD PB MOME. YELLOW |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|

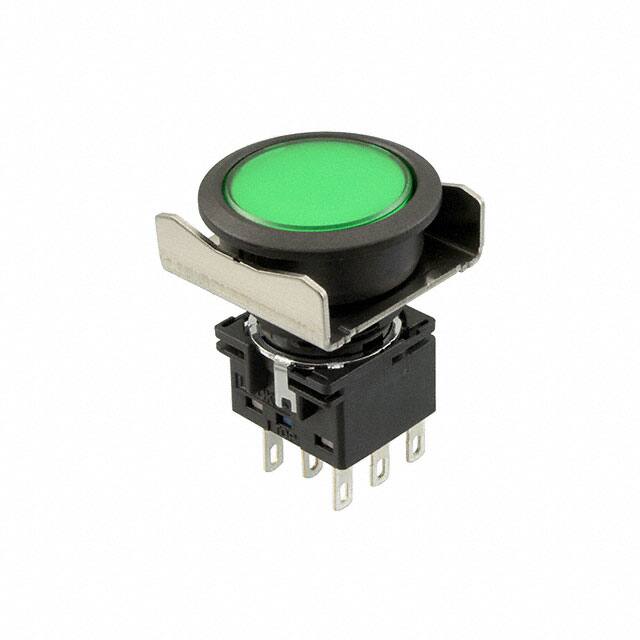

LBW6L-M1T64GLBW FLUSH ILLD PB MOME. GREEN |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

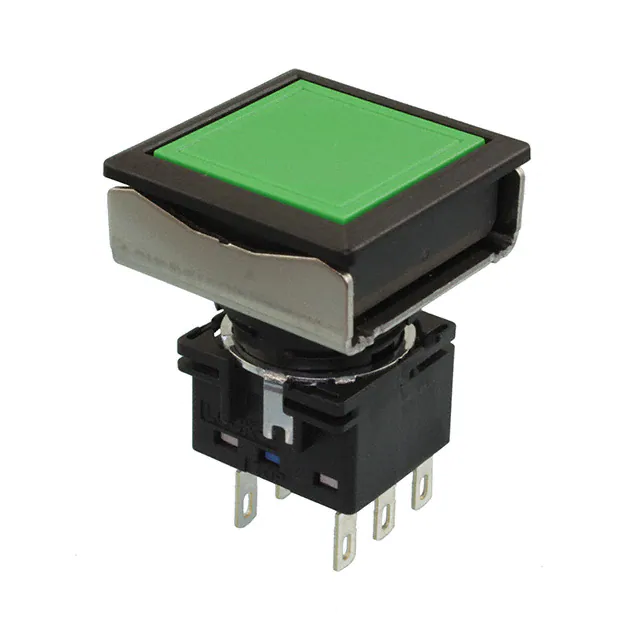

LBW7L-M1T64GLBW FLUSH ILLD PB MOME. GREEN |
0 |
|
Datasheet |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Clear | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
10832200PLUNGER SWITCH N.O.-PIGTAIL-PRES |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW4B-M2F22-WHW MTL BZL PB RND EXTD MOM 2NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW4B-M2F22-YHW MTL BZL PB RND EXTD MOM 2NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW4B-M2F22-GHW MTL BZL PB RND EXTD MOM 2NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW4B-M2F22-SHW MTL BZL PB RND EXTD MOM 2NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW4B-M2F22-RHW MTL BZL PB RND EXTD MOM 2NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW4B-M2F22-BHW MTL BZL PB RND EXTD MOM 2NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA1L-M1C24-AL6 OVRSZ ILL PB RND FLSH MOM D |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HA1L-M1C24-Y16MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
