Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3UL-TMA-3A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Blue Filter/Diffuser) | LED, Blue | 24 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMG-1A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 5 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMG-2A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMR-1A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMR-2A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMR-3A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 24 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMU-3A2C-5M-SSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Umber | 24 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMW-1A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 5 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMW-3A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 24 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMY-1A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 5 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
A3UL-TMY-3A2C-5MSWITCH PUSHBUTTON DPDT 0.1A 30V |
0 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 24 VDC | Connector | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
EUS-14-473.036-1692I.3(14-473.036-1692I.3) LIGHTED PUS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

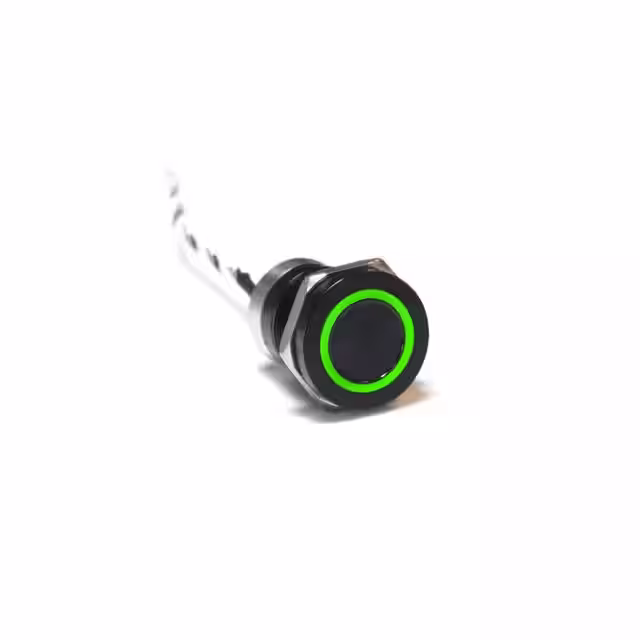

MC19LCBRGSW CAPACITIVE SPST-NC 10MA 12V |
5 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Off | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -25°C ~ 55°C |
|
|
NX303CR1R-62TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
NX303AB5B-02TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
LW1L-A1C60-YILL PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Yellow | LED, Yellow | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-A1C60-GDRND ILL PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-A1C60-ALW ILL PB RND ALT DPDT SOLDER/ |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Amber | LED, Amber | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-A1C60-WLW ILL PB RND ALT DPDT SOLDER/ |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | White | LED, White | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
LW1L-A1C60-RILL PB DPDT |
0 |
|
Datasheet |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
