Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

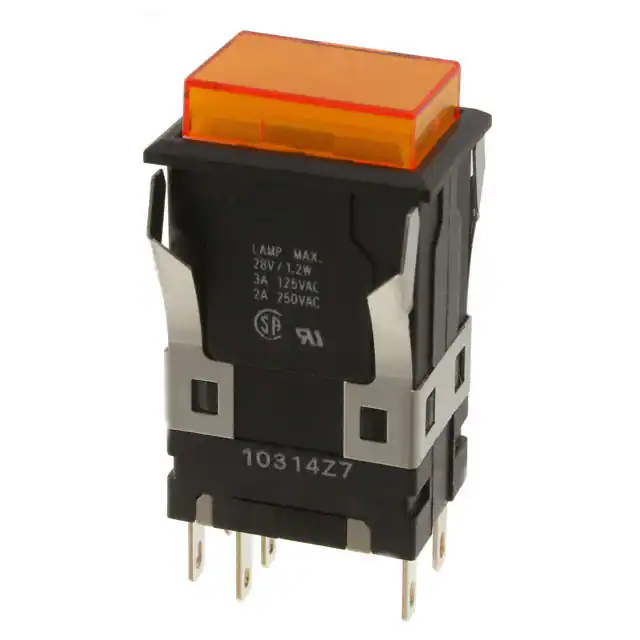

A3SJ-90A1-24SOSWITCH PUSHBUTTON SPDT 3A 125V |
2 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|

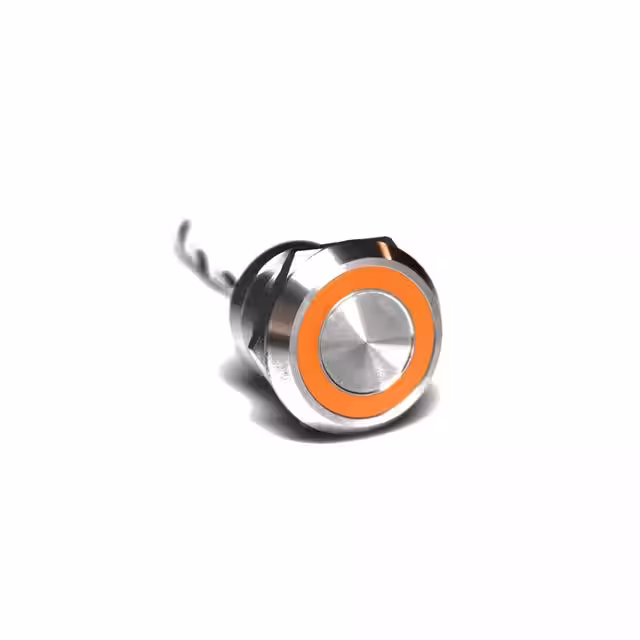

MC25MCSAMSWITCH CAPACITIVE DPST ON-MOM |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Mom | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Amber | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
MC25MOSAMSWITCH CAPACITIVE DPST OFF-MOM |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Amber | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
LB2L-M1T54R-ENGRAVEDLB 16MM ILLUMINATED PB SPDT R |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB2L-M1T54G-ENGRAVEDLB 16MM ILLUMINATED PB SPDT G |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB3L-M1T14VG-ENGRAVEDLB 16MM ILLUMINATED PB SPDT G |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Rectangular, Button, Flush | - | Green | LED, Green | 24 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
AML21BBA2BCUNSEALED OI-PB SWITCH |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-131.022-1472I.2(14-131.022-1472I.2) LPB/ RND/ M |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-131.022-1475I.2(14-131.022-1475I.2) LPB RND/ MO |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-131.025-1492I.1(14-131.025-1492I.1) LPB/ RND/ W |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-131.025-1492I.2(14-131.025-1492I.2) LIGHTED PUS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-131.025-1495I.1(14-131.025-1495I.1) LPB/ RND/ W |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-131.025-1495I.2(14-131.025-1495I.2) LIGHTED PUS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AML22CBF2ECSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
NX323AB1YTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Yellow | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
YB216CWCPW01-6B-JBSPDT ON-ON ROUND PANEL SEAL BRUS |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
YB216CWCPW01-6F-JBSPDT ON-ON ROUND PANEL SEAL BRUS |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
A22NL-MPM-TWA-P100-WAPSHIN PRJ BM BZL WHTE 1 NO |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 6 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-MPM-TYA-P002-YAPSHIN PRJ BM BZL YLLW 1 NC |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 6 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-BPA-TYA-P100-YBPSHIN PRJ PLAS BZL YLLW 1NO |
0 |
|
Datasheet |
A22NL | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 12 VAC/DC | Spring Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
