Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW2L-M1F02QD-Y-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Yellow | LED, Yellow | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-A-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Amber | LED, Amber | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-W-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | White | LED, White | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-R-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Red | LED, Red | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-W-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-W-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | White | LED, White | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-R-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Red | LED, Red | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-R-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F02QD-G-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-R-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-A-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Amber | LED, Amber | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-G-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-G-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Green | LED, Green | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-R-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Red | LED, Red | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-A-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Amber | LED, Amber | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-A-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Amber | LED, Amber | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-G-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Green | LED, Green | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW2L-M1F11QD-R-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Square, Button, Flush | - | Red | LED, Red | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
EUS-14-131.025-1196I.2(14-131.025-1196I.2) LPB RND W/B |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

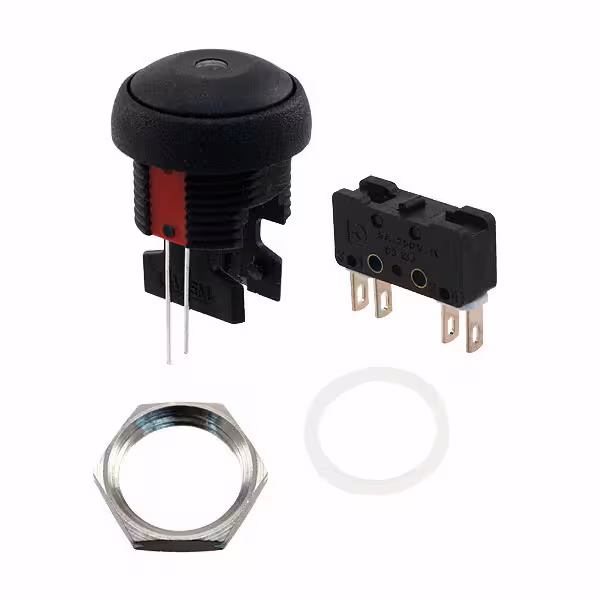

IRR8Z222L0SSWITCH PUSHBUTTON DPST 5A 250V |
0 |
|
Datasheet |
IR | Tray | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button | No Marking | Black | LED, Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 16.20mm Dia | -20°C ~ 85°C |
