Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30141409PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141472PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141473PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141676PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141678PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141389PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141513PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

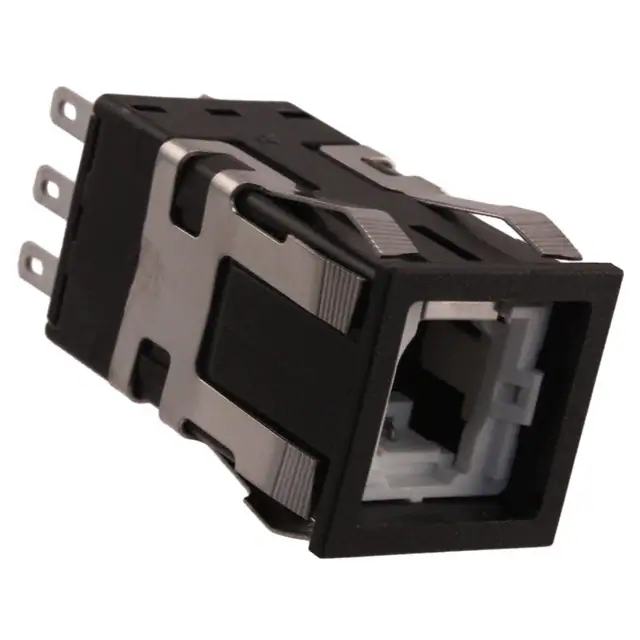

AML21CBA2BCSWITCH PUSHBUTTON DPDT 0.1A 125V |
0 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
EUS-14-131.022-2112A(14-131.022-2112A) LPB RND W/RED |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EUS-14-131.025-2114A(14-131.025-2114A) LPB RND W/YEL |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NX301BB1B-L-01TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
AV191003C900ESWITCH PUSH SPST-NO 2A 48V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
EUS-14-131.025-2110A(14-131.025-2110A) LPB RND W/BLK |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPR1FAD3L0SPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | - | Green | LED, Red | 1.95 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPC1FAD3L0GPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Square, Button | - | Green | LED, Green | 2.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPR1FAD6L0GPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | - | Red | LED, Green | 2.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPR1FAD1L0GPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | - | Blue | LED, Green | 2.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPC1FAD5L0YPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Square, Button | - | Yellow | LED, Yellow | 2 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPC1FAD6L0SPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Square, Button | - | Red | LED, Red | 1.95 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
|
IPC1FAD7/1L0GPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Square, Button | - | White | LED, Green | 2.1 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
