Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7GL-A1T54RLBW FLUSH ILLD PB MAIN. RED |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Full Guard | No Marking | Clear | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW7GL-A1T54YLBW FLUSH ILLD PB MAIN. YELLOW |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Full Guard | No Marking | Yellow | LED, Yellow | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|

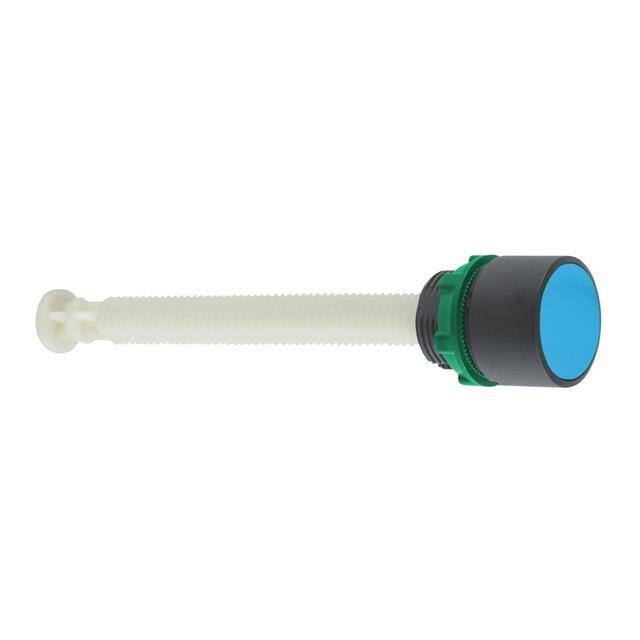

XB5AA86202HARMONY XB5, PUSHS BUTTON RESET |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Blue | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
LB7L-M1T64G-ENGRAVEDLB 16MM ILLUMINATED PB SPDT G |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Green | LED, Green | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
LB7L-M1T64R-ENGRAVEDLB 16MM ILLUMINATED PB SPDT R |
0 |
|
- |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | - | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 18.20mm x 18.20mm | -25°C ~ 55°C |
|
|
1.15.108.177/0000LUMOTAST 75 IP65 PUSHBUTTON RECT |
0 |
|
- |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 4A (AC), 200mA (DC) | 250 V | 230 V | Rectangular, Button | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
|
1.15.108.377/0000LUMOTAST 75 IP65 PUSHBUTTON SQUA |
0 |
|
- |
LUMOTAST 75 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 4A (AC), 200mA (DC) | 250 V | 230 V | Square, Button, Flush | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|
|
FPAP3C3412A1XXXPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1.30.041.011/1002ILL. DOUBLE PUSHBUTTON TRANSPARE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW1B-M1F20-B-MAU22MM MOMENTARY PUSHBUTTON BLK |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC25LCSRGSW CAPACITIVE SPST-NC 10MA 12V |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Off | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
|
MC25LOSGRSW CAPACITIVE SPST-NO 10MA 12V |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-On | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
|
MC25LOSRGSW CAPACITIVE SPST-NO 10MA 12V |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-On | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
MC25LCSGNSWITCH CAPACITIVE DPST ON-OFF |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Off | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
MC25LCSRDSWITCH CAPACITIVE DPST ON-OFF |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NC | On-Off | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|

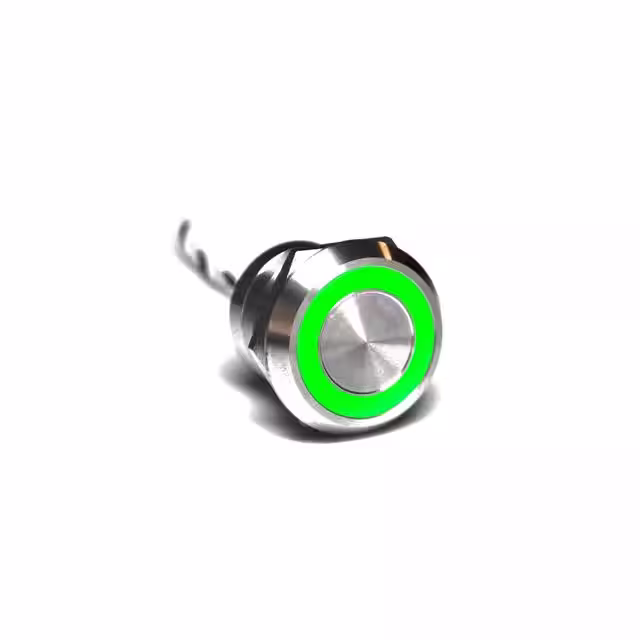

MC25LOSGNSWITCH CAPACITIVE DPST OFF-ON |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-On | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Green | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|

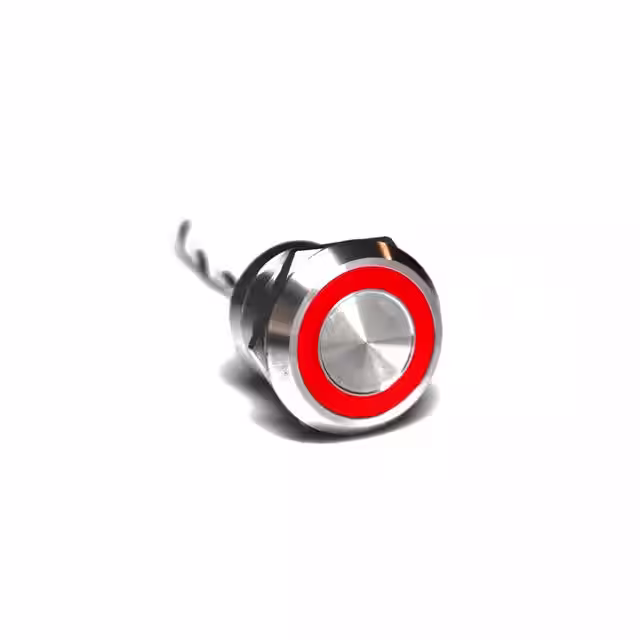

MC25LOSRDSWITCH CAPACITIVE DPST OFF-ON |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-On | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
|
HW2L-A1F10QD-Y-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW2L-A1F01QD-G-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HW2L-A1F01QD-W-120V22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
