Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW1L-M2F20QD-A-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Amber | LED, Amber | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F11QD-Y-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F20QD-A-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Amber | LED, Amber | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F20QD-W-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F11QD-R-6V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F20QD-R-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F20QD-G-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F11QD-R-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F20QD-G-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F11QD-Y-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F11QD-R-24V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F11QD-Y-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Yellow | LED, Yellow | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW1L-M2F20QD-W-12V22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | White | LED, White | 12 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
IZNP3P42NL0GPUSHBUTTON SWITCH FD DBLE ICON |
0 |
|
- |
IZ | Bulk | Active | Panel Mount, Rear | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 48 V | Round, Button, Domed | - | Black | LED, Green | 2.1 VDC | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 16.10mm Dia | -40°C ~ 85°C |
|

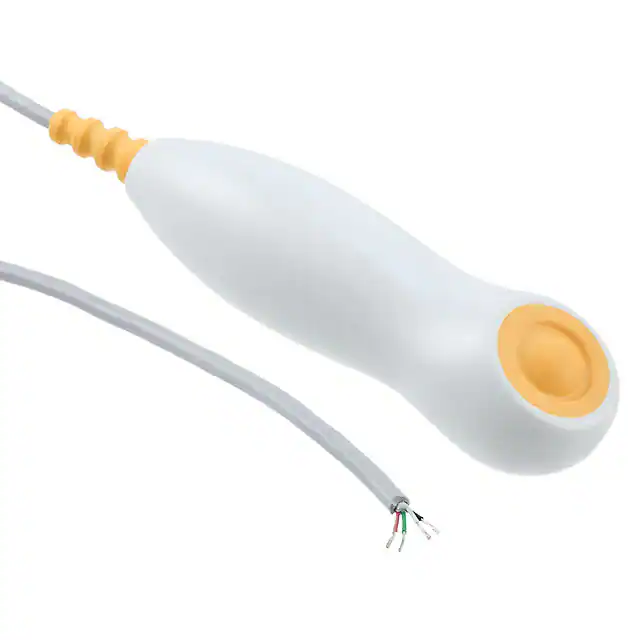

E921KCSWITCH PUSH DPDT 250MA 120V |
0 |
|
Datasheet |
E921 | Bulk | Active | Free Hanging | Standard | DPDT | On-Mom | 250mA (AC) | 120 V | - | Round, Button | No Marking | Yellow | - | - | Cable Leads | - | Tactile Feedback | - | -25°C ~ 75°C |
|
3SU11500AB301FA0PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
1241.3166.MPSE22 SWITCH MO NO 100MA PI 0RD |
0 |
|
Datasheet |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Quick Connect | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
|
LBW7ML-A1T11VWLBW FLUSH ILLD PB MAIN. WHITE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | White | LED, White | 5 VDC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
|
|
LBW6ML-A1T13VWLBW FLUSH ILLD PB MAIN. WHITE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | LED, White | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
LBW7ML-A1T13VWLBW FLUSH ILLD PB MAIN. WHITE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | White | LED, White | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 55°C |
