Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

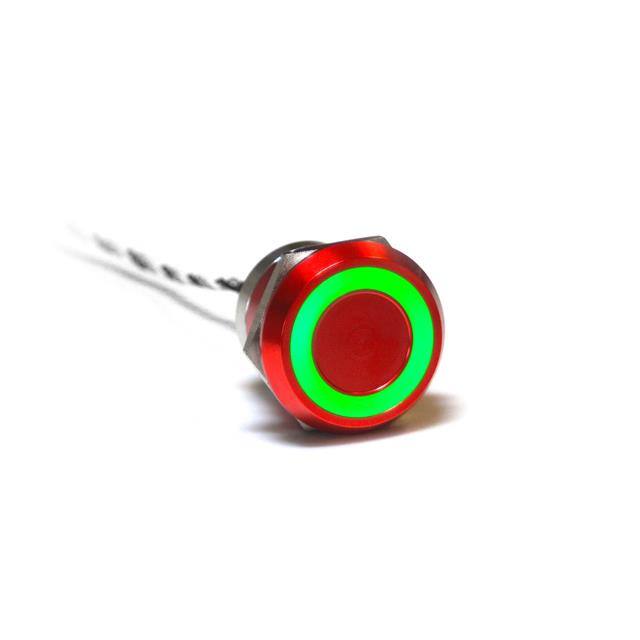

MC25LORGNSWITCH CAPACITIVE DPST OFF-ON |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-On | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Red | LED, Green | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|

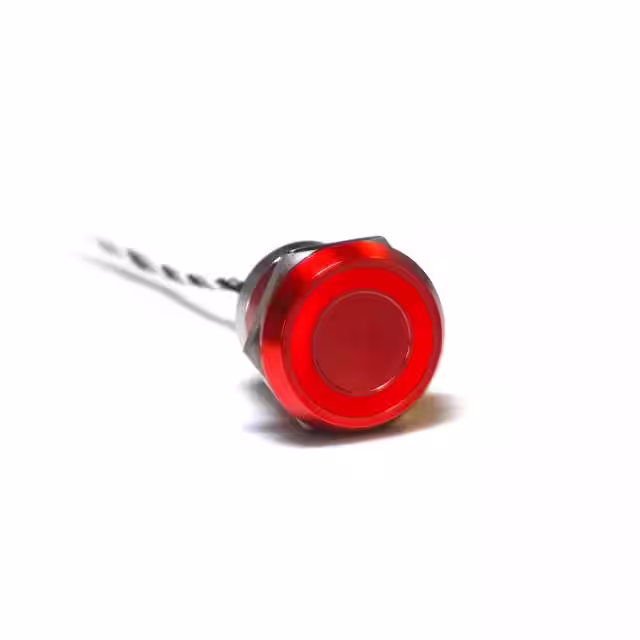

MC25LORRDSWITCH CAPACITIVE DPST OFF-ON |
0 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-On | 500mA (DC) | - | 24 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 25.20mm Dia | -25°C ~ 55°C |
|
AV191003A900PUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 8A (AC), 4A (DC) | 125 V | 12 V | Round, Button | - | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
LW6B-A1C6LR25MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-A1C6LW25MM PUSHBUTTON WHITE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-A1C6LS25MM PUSHBUTTON BLUE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-A1C6LG25MM PUSHBUTTON GREEN |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-A1C6LY25MM PUSHBUTTON YELLOW |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-A1C6LB25MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-A1C6LA25MM PUSHBUTTON AMBER |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button, Flush | - | Amber | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-M2C1LY25MM PUSHBUTTON YELLOW |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-M2C1LS25MM PUSHBUTTON BLUE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-M2C1LA25MM PUSHBUTTON AMBER |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Amber | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-M2C1LW25MM PUSHBUTTON WHITE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-M2C1LR25MM PUSHBUTTON RED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-M2C1LG25MM PUSHBUTTON GREEN |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6B-M2C1LB25MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.30mm Dia | -25°C ~ 60°C |
|
|
LW6MB-A2C5LA25MM PUSHBUTTON AMBER |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Amber | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-A2C5LB25MM PUSHBUTTON BLACK |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
|
|
LW6MB-A2C5LW25MM PUSHBUTTON WHITE |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 60°C |
