Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HA1L-A1C28V-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 120 VAC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C63-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C23V-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 12 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C22V-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 6 VAC/DC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C64-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C28V-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button | - | Amber | LED, Amber | 120 VAC | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C64-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-G16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-Y16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Yellow | LED, Yellow | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C68-Y16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Yellow | LED, Yellow | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | White | LED, White | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA1L-A1C68-A16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | - | Amber | LED, Amber | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C68-W16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | White | LED, White | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
|
HA2L-A1C68-S16MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
L6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | - | Blue | LED, Blue | 120 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
A6X30142897PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

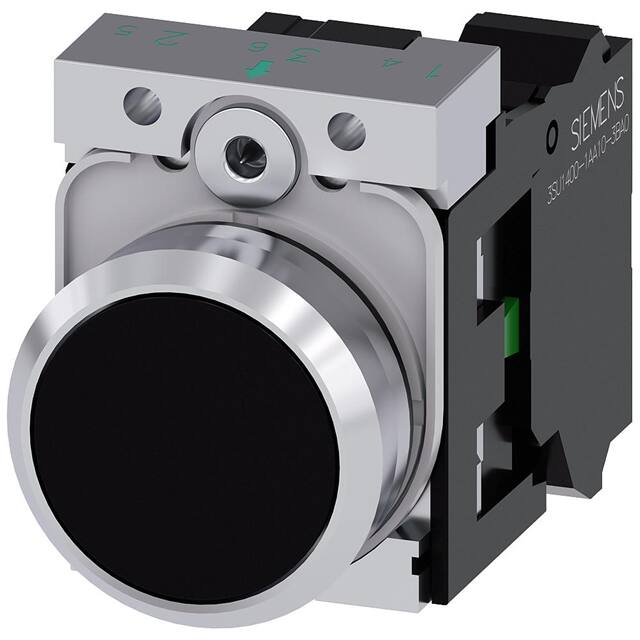

A6X30142893PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

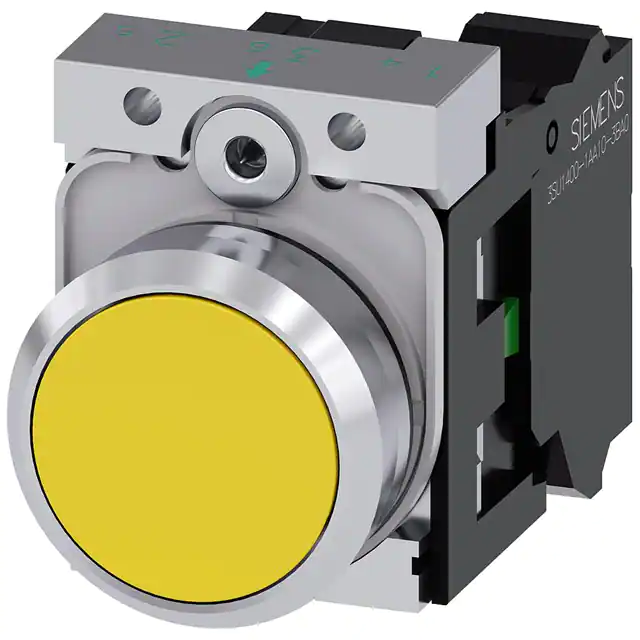

A6X30142949PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142892PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142895PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
