Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CW4L-M1E10Q2GILLUMINATED PB 22MM 1NO G |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Green | LED, Green | 6 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
CW4L-M1E10Q4RILLUMINATED PB 22MM 1NO R |
0 |
|
- |
CW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 5A (AC), 4A (DC) | 120 V | 24 V | Round, Button, Flush | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
MW1B-A32-YYELLOW MSHRM MAINTAIN DPDT |
0 |
|
- |
MW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | - | White | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
MW1B-A12GFLUSH MAINTAIN GREEN BUTTON |
0 |
|
- |
MW | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Mushroom | - | Red | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
MW1B-A31R22MM RED MSHRM MAINT SPDT |
0 |
|
- |
MW | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 10A (AC), 8A (DC) | 110 V | 24 V | Round, Button, Flush | - | Yellow | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
ABS131N-BTWS PUSH BUTTON |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NX301FB1BTACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bag | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
HW4B-M1P22B22MM MOMENTARY PUSHBUTTON BLK |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4B-M1P22G22MM MOMENTARY PUSHBUTTON GRN |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4B-M1P22Y22MM MOMENTARY PUSHBUTTON YEL |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4B-M1P22S22MM MOMENTARY PUSHBUTTON BLU |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | Blue | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4B-M1P22R22MM MOMENTARY PUSHBUTTON RED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4B-M1P22W22MM MOMENTARY PUSHBUTTON WHT |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 10A (AC/DC) | 110 V | 24 V | Round, Button, Flush | - | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
PBAR1AF0000K0GPUSHBUTTON SWITCH PBA PIEZO |
0 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | - | Natural | LED, Green | 24 VDC | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 75°C |
|
|
EUS-14-131.025-1092I.2(14-131.025-1092I.2) LPB RND W/R |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A1PCA1Y203K203INDUSTRIAL CONTROL A01 16MM |
0 |
|
- |
A1 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 6A (AC/DC) | 250 V | 12 V | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
AV0611A800KPUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 1A (DC) | - | 24 V | Round, Button, Flush | - | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.20mm Dia | -30°C ~ 70°C |
|
|
82-6154.22A482-6154.22A4.ILLUMINATED PUSHBUT |
0 |
|
Datasheet |
82 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | LED, Green/Red | 24 VDC | Screw Terminal | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -30°C ~ 70°C |
|
|
AV191003C9X2221PUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

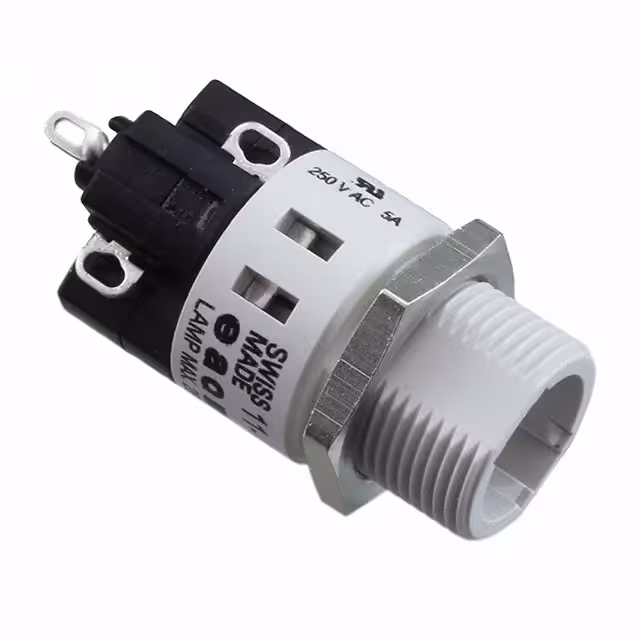

11-131.825SWITCH PB SPDT 5A 250V |
0 |
|
Datasheet |
11 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT (DB/DM) | On-Mom | 5A (AC), 2A (DC) | 250 V | 24 V | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | - |
